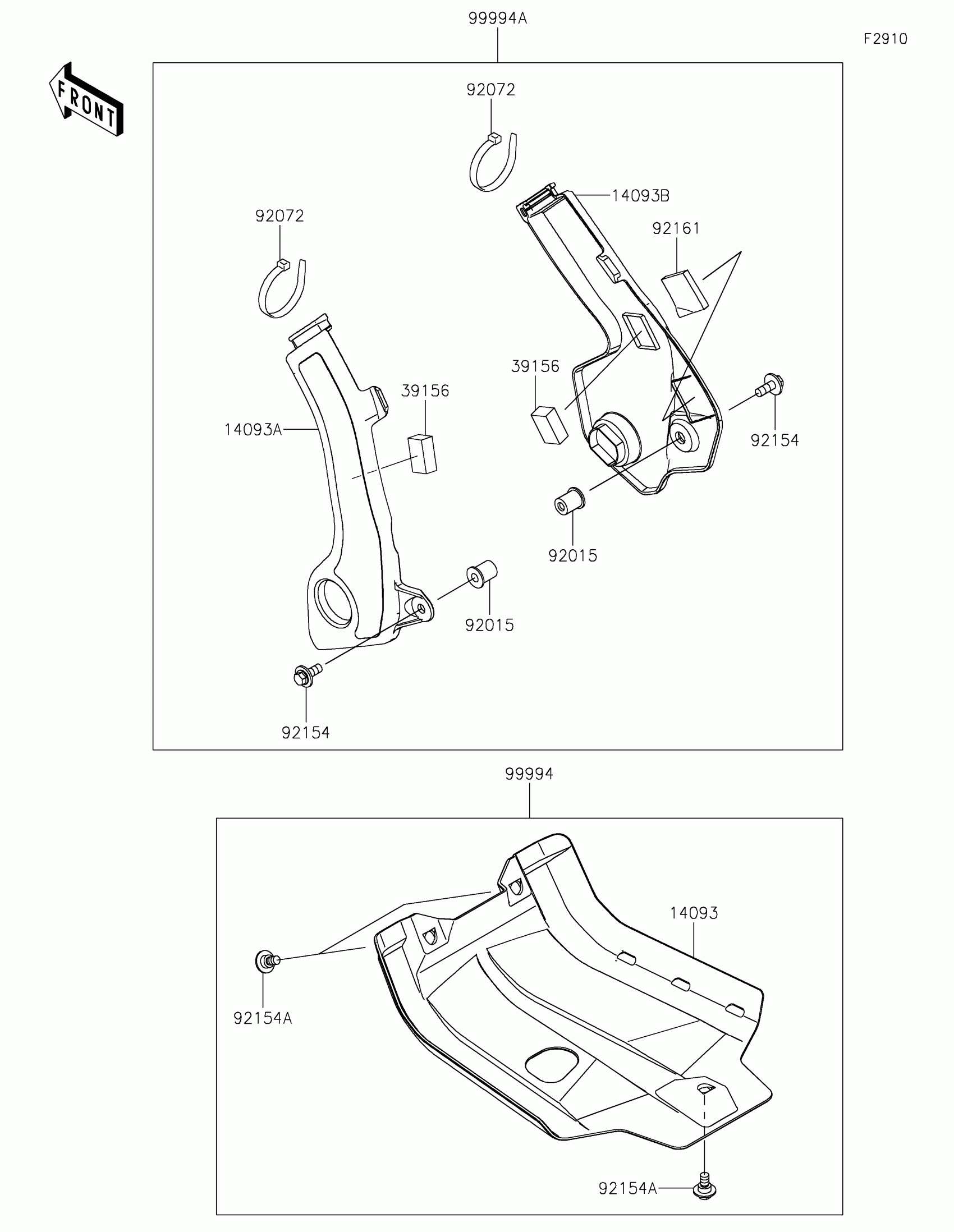

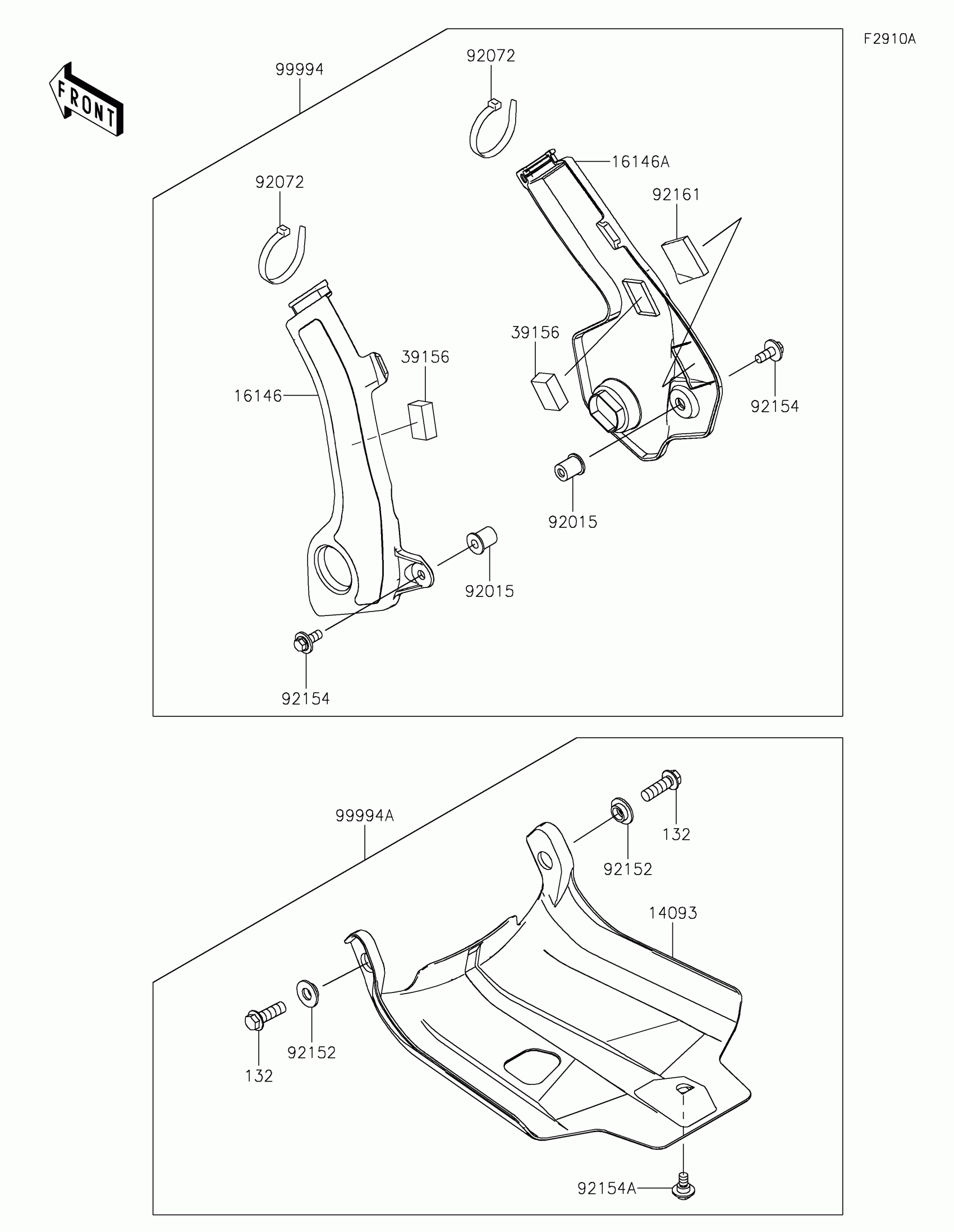

Kawasaki KLX®230R Accessory(Frame Cover) Diagram

Description

Price

14093

COVER

14093-1563

$44.77

16146

COVER-ASSY,FRAME,LH

16146-0867

$11.90

16146A

COVER-ASSY,FRAME,RH

16146-0868

$11.90

39156

PAD,15X25X10

39156-2489

$1.21

92015

NUT

92015-1700

$8.58

92072

BAND,L=202

92072-1195

$1.56

92152

COLLAR

92152-3859

$2.48

92154

BOLT,FLANGED-SMALL,6X16

92154-1183

$1.48

92154A

BOLT,FLANGED,6X9

92154-7285

$3.14

92161

DAMPER

92161-1591

$0.95

99994

COVER-FRAME

99994-1466

$39.42

99994A

SKID PLATE

99994-2020

$25.83

132

BOLT-FLANGED-SMALL,8X25

132BA0825

$4.12
