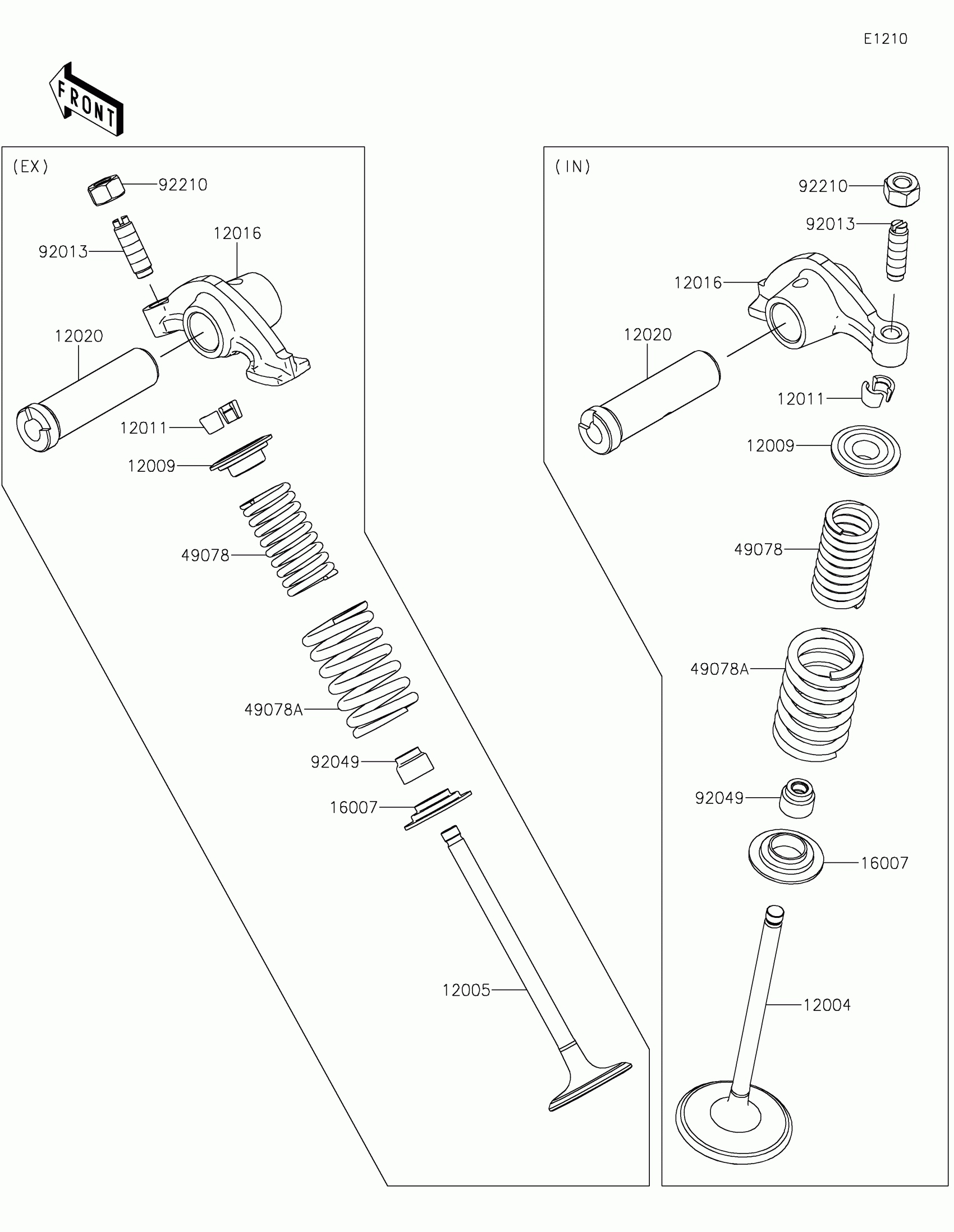

Kawasaki KLX®230 SHERPA S ABS Valve(s) Diagram

Description

Price

12004

VALVE-INTAKE

12004-0780

$61.18

12005

VALVE-EXHAUST

12005-0803

$62.14

12009

RETAINER-VALVE SPRING

12009-0721

$10.02

12011

COLLET

12011-1003

$3.54

12016

ARM-ROCKER

12016-0728

$56.34

12020

SHAFT-ROCKER

12020-0030

$14.56

16007

SEAT-SPRING

16007-0787

$22.42

49078

SPRING-ENGINE VALVE

49078-0756

$13.03

49078A

SPRING-ENGINE VALVE

49078-0757

$14.97

92013

SCREW,6MM

92013-009

$4.93

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

$3.90

92210

NUT,6MM

92210-1490

$3.57
