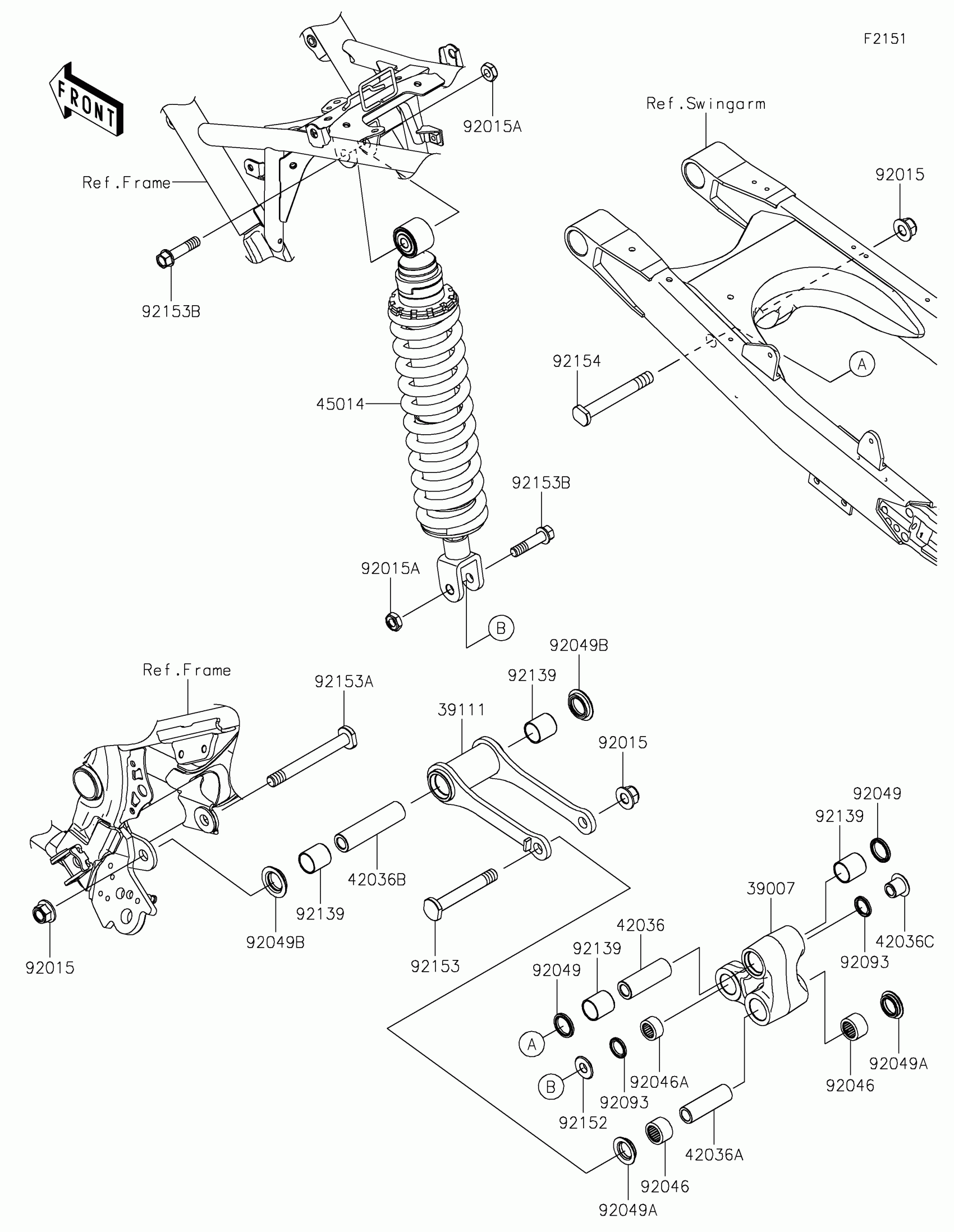

Kawasaki KLX®230 SHERPA S ABS Suspension/Shock Absorber Diagram

Description

Price

39007

ARM-SUSP

39007-0467

$132.36

39111

ROD-TIE

39111-0385

$94.83

42036

SLEEVE,12.1X20X58

42036-0046

$22.01

42036A

SLEEVE,12.1X18X58

42036-0827

$22.01

42036B

SLEEVE,12.1X20X82.6

42036-0857

$29.59

42036C

SLEEVE

42036-1351

$11.28

45014

SHOCKABSORBER

45014-0909

$545.68

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92015A

NUT,LOCK,10MM

92015-1962

$6.11

92046

BEARING-NEEDLE,18BM2416

92046-1144

$29.26

92046A

BEARING-NEEDLE,16BM2212

92046-1192

$18.21

92049

SEAL-OIL,SDO 20 26 3

92049-0135

$11.49

92049A

SEAL-OIL,18X30X5.7

92049-0813

$10.11

92049B

SEAL-OIL

92049-0849

$9.28

92093

SEAL,SO 16 22 2.5

92093-0155

$7.58

92139

BUSHING,20X23X24

92139-0940

$5.08

92152

COLLAR

92152-1139

$8.86

92153

BOLT,12X85

92153-1828

$20.37

92153A

BOLT,12X108

92153-1829

$23.84

92153B

BOLT,FLANGED,10X42

92153-1957

$3.90

92154

BOLT,12X95

92154-3962

$11.65
