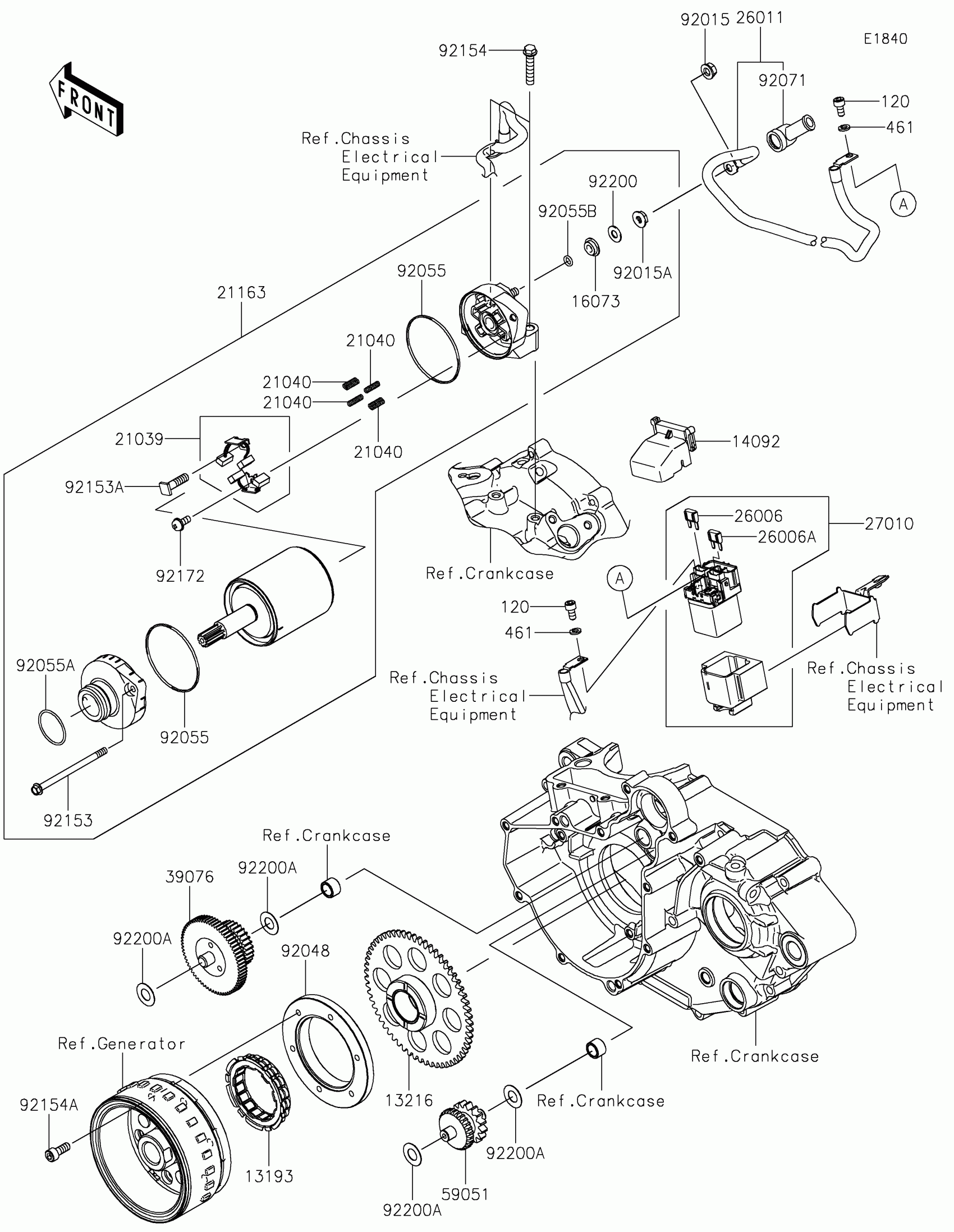

Kawasaki KLX®230 SHERPA S ABS Starter Motor Diagram

#

Description
Price

13193

CLUTCH-ASSY-ONEWAY

13193-0014

$121.73

13216

GEAR-COMP,ONEWAY CLUTCH

13216-0900

$150.42

14092

COVER

14092-0109

$9.22

16073

INSULATOR

16073-0053

$11.42

21039

BRUSH,CARBON

21039-0004

$120.17

21040

SPRING-BRUSH

21040-0003

$9.47

21163

STARTER-ELECTRIC

21163-0783

$324.84

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26011

WIRE-LEAD,STARTER

26011-2500

$30.37

27010

SWITCH

27010-0773

$138.72

39076

LIMITER,STARTER IDLE GEAR

39076-0562

$180.12

59051

GEAR-SPUR,IDLER

59051-0824

$58.83

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT,STARTER MOTOR

92015-1476

$3.85

92048

RACE,ONEWAY CLUTCH

92048-0030

$55.26

92055

RING-O

92055-0136

$5.91

92055A

RING-O

92055-1276

$7.54

92055B

RING-O,4.5X2.0

92055-1370

$4.17

92071

GROMMET

92071-0782

$10.85

92153

BOLT

92153-1850

$11.42

92153A

BOLT

92153-1866

$4.14

92154

BOLT,FLANGED,6X30

92154-1773

$1.10

92154A

BOLT,SOCKET,6X12

92154-7472

$2.00

92172

SCREW

92172-0334

$4.14

92200

WASHER

92200-0386

$4.14

92200A

WASHER,10.2X20X0.5

92200-1976

$3.56

120

BOLT-SOCKET,5X10

120CB0510

$1.23

461

WASHER-SPRING,5MM

461DA0500

$0.66
