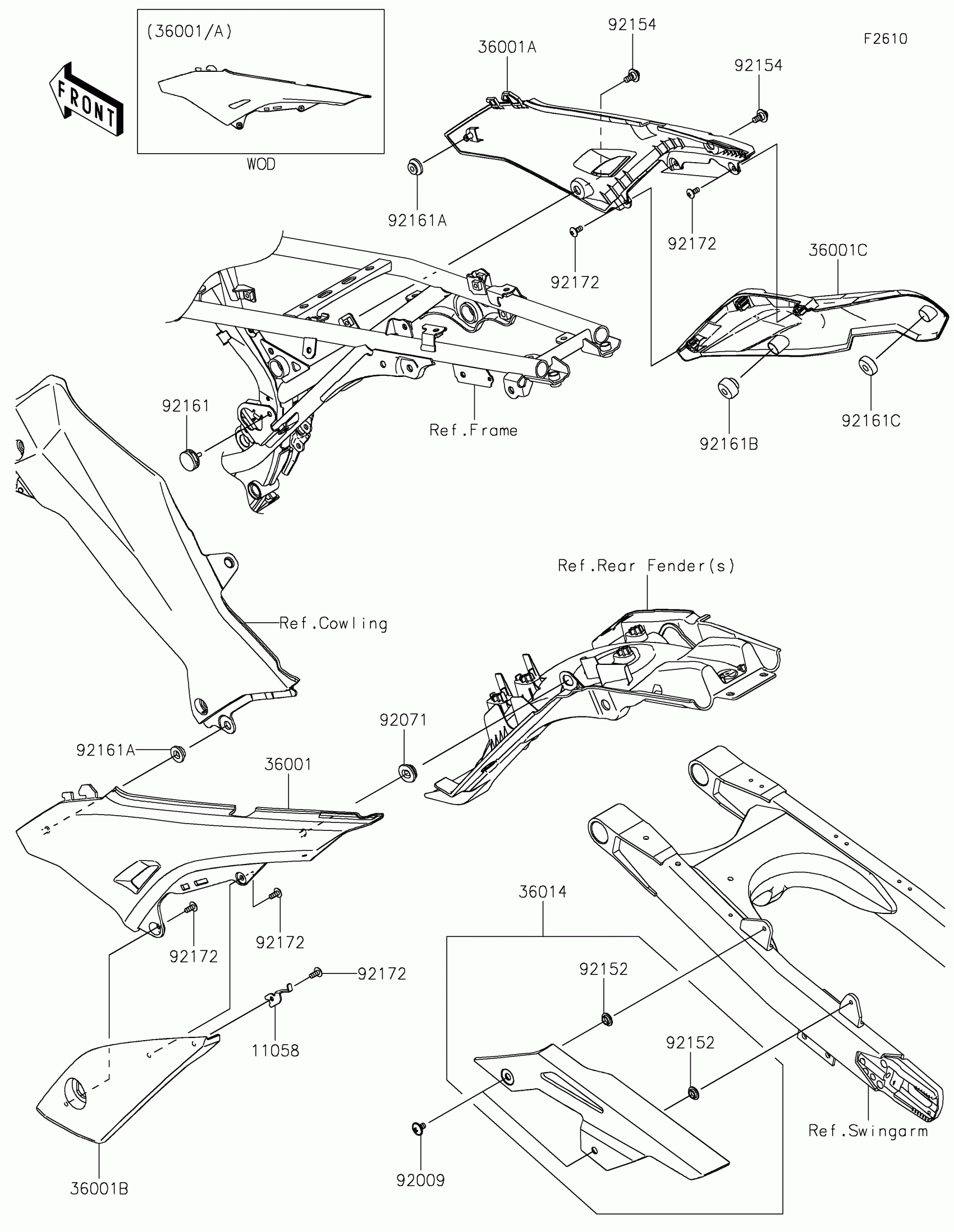

Kawasaki KLX®230 SHERPA S ABS Side Covers/Chain Cover Diagram

Description

Price

11058

BRACKET

11058-3822

$2.58

36001

COVER-SIDE,LH,UPP,W.BEIGE

36001-0761-67J

$43.00

36001A

COVER-SIDE,RH,UPP,W.BEIGE

36001-0763-67J

$44.37

36001B

COVER-SIDE,LH,LWR

36001-0790

$24.36

36001C

COVER-SIDE,RH,LWR

36001-0791

$40.11

36014

CASE-CHAIN

36014-0560

$16.37

92009

SCREW,6X10

92009-1729

$0.26

92071

GROMMET

92071-0795

$1.22

92152

COLLAR,8.8X16X4

92152-1731

$4.95

92154

BOLT,FLANGED,6X13

92154-4411

$2.84

92161

DAMPER

92161-0581

$1.66

92161A

DAMPER

92161-1531

$2.11

92161B

DAMPER

92161-1783

$4.78

92161C

DAMPER

92161-2090

$3.89

92172

SCREW,5X12

92172-1095

Unavailable
