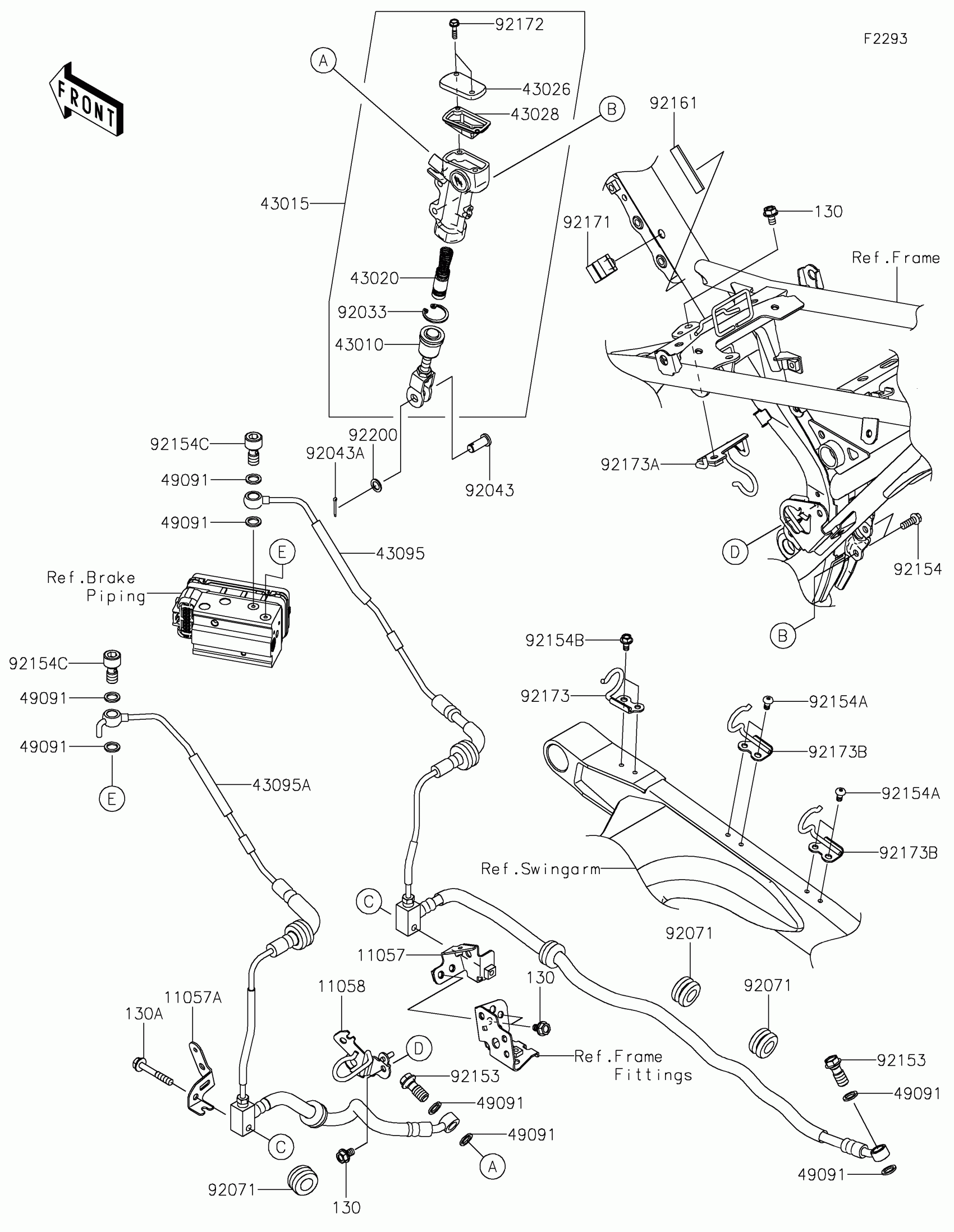

Kawasaki KLX®230 SHERPA S ABS Rear Master Cylinder Diagram

Description

Price

11057

BRACKET

11057-2362

$11.65

11057A

BRACKET

11057-2485

$3.26

11058

BRACKET

11058-1516

$10.97

43010

ROD-ASSY-BRAKE

43010-0025

$54.90

43015

CYLINDER-ASSY-MASTER,RR

43015-0724

$309.99

43020

PISTON-COMP-BRAKE

43020-1094

$65.22

43026

CAP-BRAKE

43026-0023

$16.21

43028

DIAPHRAGM

43028-1092

$20.74

43095

HOSE-BRAKE,ABS UNIT-RR CALIPER

43095-1988

$306.82

43095A

HOSE-BRAKE,ABS UNIT-RR M/C

43095-1989

$278.19

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92043

92043-0004

$11.16

92043A

PIN,COTTER,2.0X15

92043-0766

$1.17

92071

GROMMET,12.2X26X16

92071-0841

$2.90

92153

BOLT,OIL,L=23

92153-0029

$1.63

92154

BOLT,FLANGED,6X16

92154-0460

$1.83

92154A

BOLT,SOCKET,5X10

92154-2801

$0.90

92154B

BOLT,FLANGED,5X10

92154-7278

$1.64

92154C

BOLT,BANJO,10X20.8

92154-7281

$25.31

92161

DAMPER,13X48X2

92161-2548

$3.44

92171

CLAMP

92171-0818

$4.41

92172

SCREW

92172-1064

$2.41

92173

CLAMP,BRAKE HOSE,SWING ARM

92173-1976

$4.60

92173A

CLAMP

92173-2711

$10.37

92173B

CLAMP

92173-2712

$4.36

92200

WASHER,8.5X13X1

92200-1980

$3.92

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X40

130BA0640

$1.20
