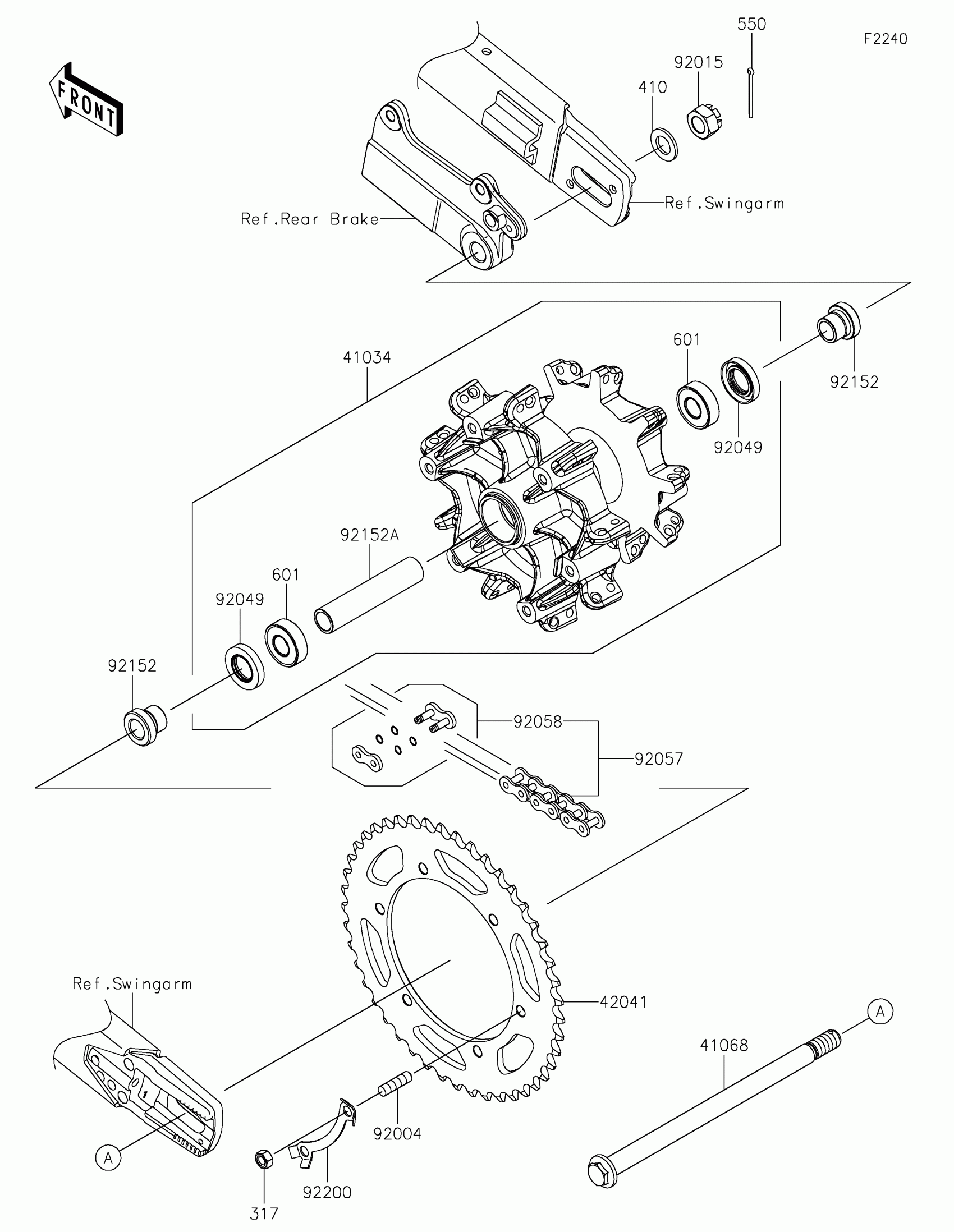

Kawasaki KLX®230 SHERPA S ABS Rear Hub Diagram

Description

Price

41034

DRUM-ASSY,RR,SILVER

41034-0628-67R

$467.80

41068

AXLE,RR,15X244

41068-0673

$90.82

42041

SPROCKET-HUB,45T

42041-0174

Unavailable

92004

STUD,8X30

92004-0822

$4.22

92015

NUT,CASTLE,14MM

92015-1765

$7.49

92049

SEAL-OIL

92049-0114

$12.58

92057

CHAIN,DRIVE,520VF2X108L

92057-0802

$356.50

92058

JOINT-CHAIN

92058-0069

$11.34

92152

COLLAR

92152-2545

$15.63

92152A

COLLAR,15.2X20X96.2

92152-2546

$23.44

92200

WASHER

92200-2677

$2.15

317

NUT-HEX-SMALL,8MM

317BA0800

$1.24

410

WASHER-PLAIN-SMALL,14MM

410AA1400

$1.57

550

PIN-COTTER,3.0X35

550AA3035

$1.98

601

BEARING-BALL

601B6202UU

$17.77
