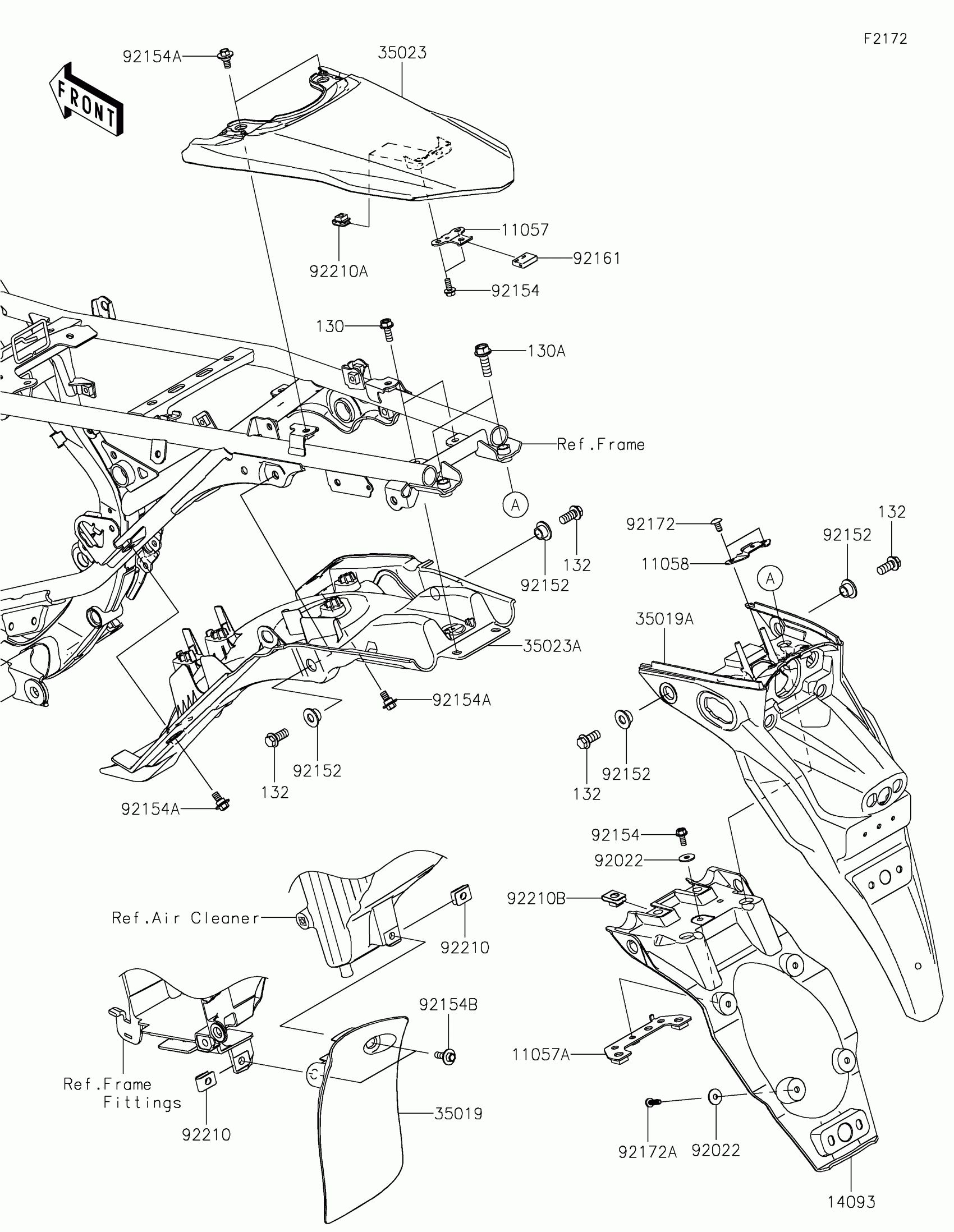

Kawasaki KLX®230 SHERPA S ABS Rear Fender(s) Diagram

Description

Price

11057

BRACKET

11057-2330

$2.29

11057A

BRACKET

11057-2331

$8.53

11058

BRACKET

11058-3804

$2.24

14093

COVER

14093-0860

$75.75

35019

FLAP

35019-0664

$49.20

35019A

FLAP,RR FENDER

35019-0666

$53.12

35023

FENDER-REAR,W.BEIGE

35023-0502-67J

$25.78

35023A

FENDER-REAR

35023-0503

$49.22

92022

WASHER,5.2X16X1.2

92022-263

$1.22

92152

COLLAR

92152-2542

Unavailable

92154

BOLT,FLANGED,5X12

92154-1215

Unavailable

92154A

BOLT,FLANGED,6X13

92154-4411

$2.84

92154B

BOLT,FLANGED,6X14

92154-7286

$2.17

92161

DAMPER,15X21X5.5

92161-1472

$2.11

92172

SCREW,CROS,5X10

92172-1255

$0.44

92172A

SCREW,TAPPING,5X16

92172-1545

$0.83

92210

NUT,6MM

92210-0218

$1.81

92210A

NUT,PLATE,5MM

92210-0262

$1.04

92210B

NUT,6MM

92210-0474

$4.18

130

BOLT-FLANGED,6X16

130BA0616

$0.97

130A

BOLT-FLANGED,8X25

130BA0825

$2.01

132

BOLT-FLANGED-SMALL,8X18

132BA0818

$1.03
