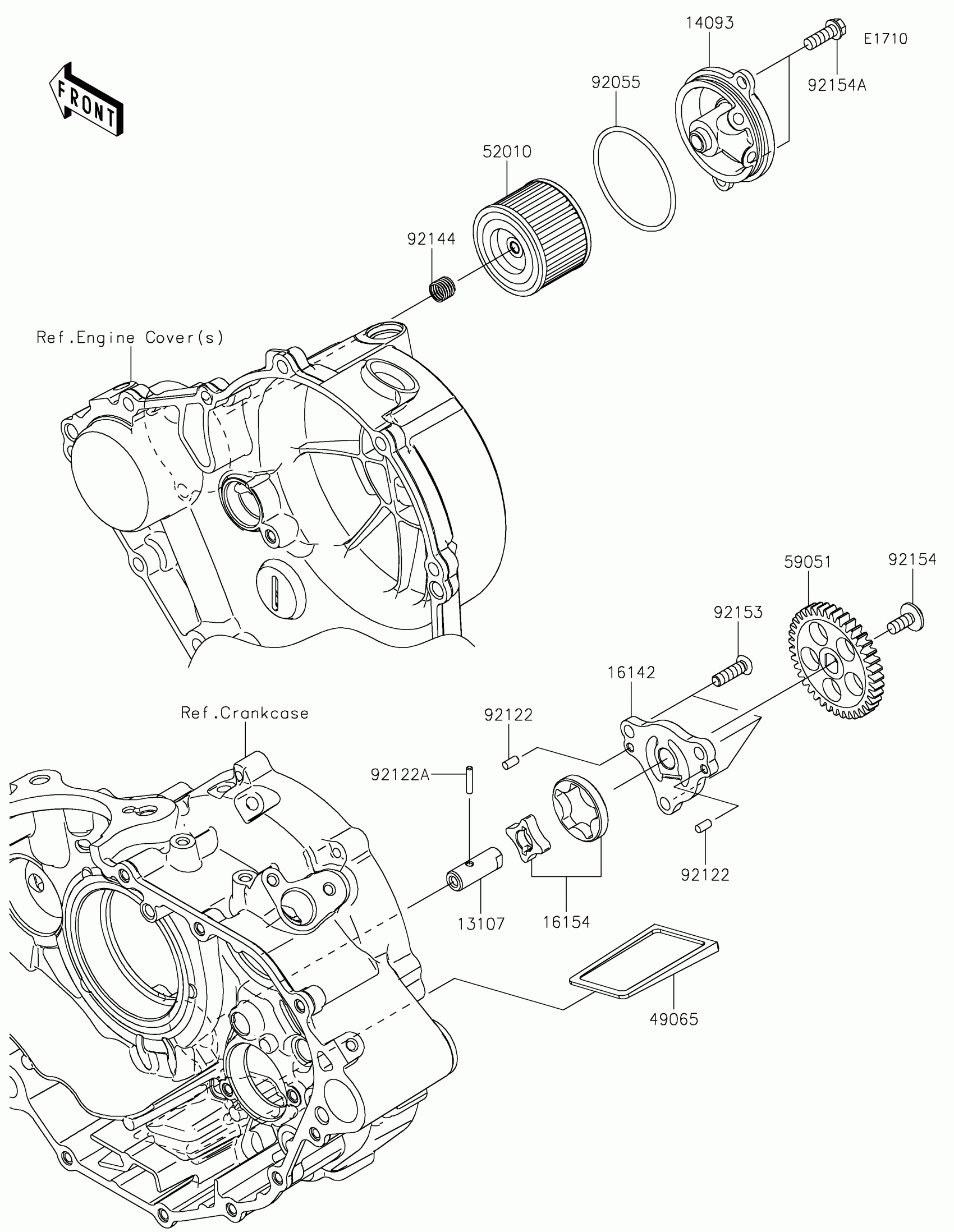

Kawasaki KLX®230 SHERPA S ABS Oil Pump Diagram

Description

Price

13107

SHAFT,OIL PUMP

13107-0891

$27.16

14093

COVER,OIL FILTER

14093-0786

$38.84

16142

COVER-PUMP,OIL

16142-0760

$28.94

16154

ROTOR-PUMP

16154-0747

$35.27

49065

FILTER-OIL

49065-1058

$12.76

52010

ELEMENT-OIL FILTER

52010-1053

$9.10

59051

GEAR-SPUR,39T

59051-0819

$44.79

92055

RING-O,52.6X2.4

92055-1785

$4.50

92122

ROLLER,4X8

92122-0557

$1.19

92122A

ROLLER,3X15.8

92122-1126

$3.92

92144

SPRING

92144-1761

$4.65

92153

BOLT,TORX,6X20

92153-1653

$2.15

92154

BOLT,SOCKET,6X14

92154-2731

$2.17

92154A

BOLT,FLANGED,6X18

92154-7470

$1.08
