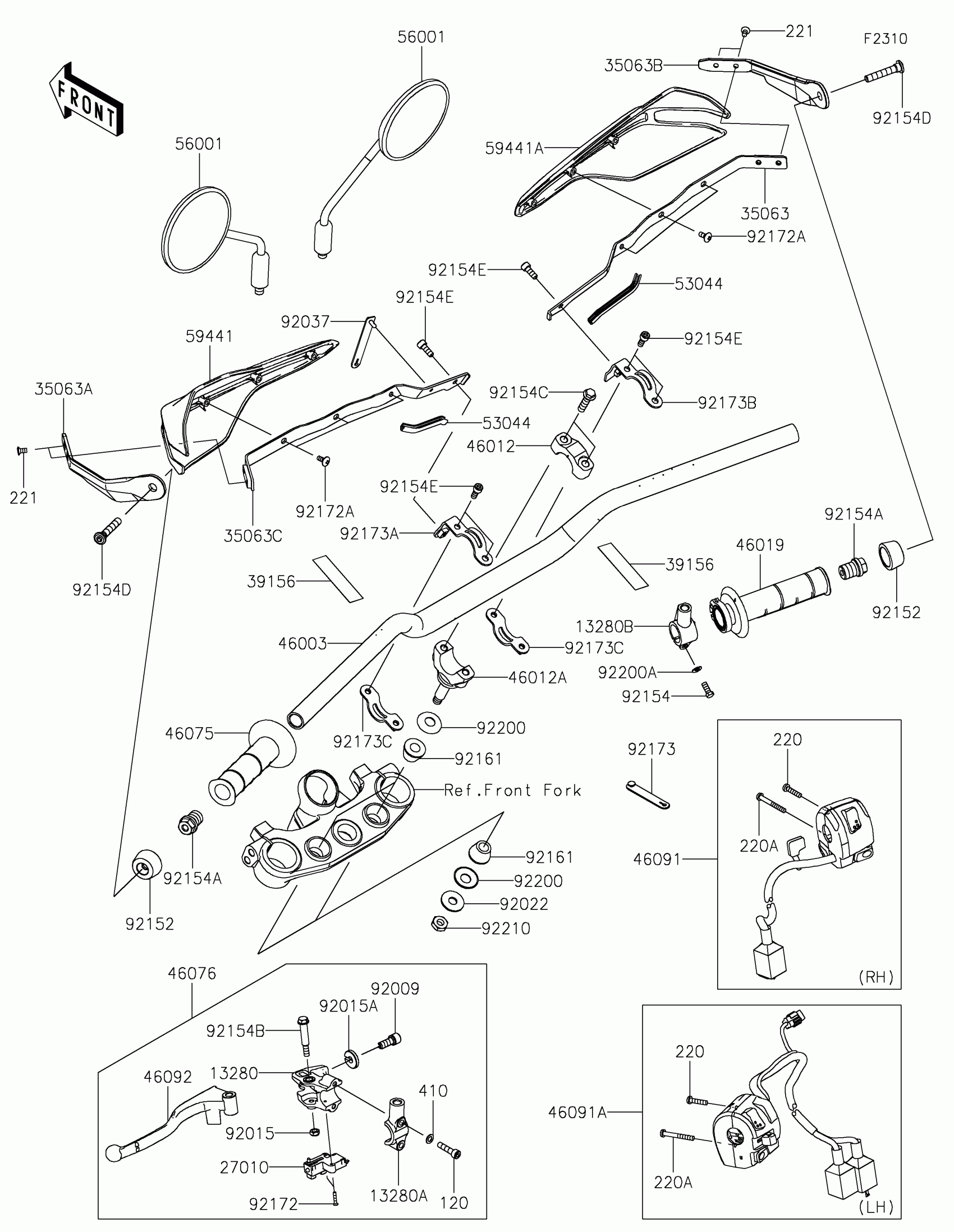

Kawasaki KLX®230 SHERPA S ABS Handlebar Diagram

#

Description
Price

13280

HOLDER,LEVER

13280-0929

$40.81

13280A

HOLDER,MIRROR

13280-0930

$17.11

13280B

HOLDER,MIRROR

13280-1000

$20.71

27010

SWITCH,CLUTCH

27010-0729

$29.57

35063

STAY,HANDLE COVER,RH

35063-1616

$20.54

35063A

STAY,HANDLE COVER,SIDE,LH

35063-1663

$16.95

35063B

STAY,HANDLE COVER,SIDE,RH

35063-1664

$16.95

35063C

STAY,HANDLE COVER,LH

35063-1665

Unavailable

39156

PAD,89X18

39156-2968

$2.31

46003

HANDLE,FAT TYPE BAR

46003-0846

$266.25

46012

HOLDER-HANDLE,UPP,F.BLACK

46012-0449-21

$21.19

46012A

HOLDER-HANDLE,LWR,F.BLACK

46012-0450-21

$26.78

46019

GRIP-ASSY,THROTTLE

46019-0129

$36.34

46075

GRIP,LH

46075-0692

Unavailable

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0198

$113.98

46091

HOUSING-ASSY-CONTROL,RH

46091-0687

$141.30

46091A

HOUSING-ASSY-CONTROL,LH

46091-0717

$146.22

46092

LEVER-GRIP,CLUTCH

46092-0586

$21.36

53044

TRIM,L=85

53044-0556

$9.56

56001

MIRROR-ASSY

56001-0419

$46.52

59441

COVER-HANDLE,LH,W.BEIGE

59441-0313-67J

$26.34

59441A

COVER-HANDLE,RH,W.BEIGE

59441-0314-67J

$26.34

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$11.50

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$7.54

92022

WASHER,10.2X28X2

92022-1088

$3.57

92037

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92152

COLLAR

92152-3982

$10.10

92154

BOLT,UPSET,6X22

92154-1422

$4.17

92154A

BOLT,17X18

92154-1902

$14.30

92154B

BOLT,FLANGED,6X44

92154-2331

$5.80

92154C

BOLT,FLANGED,8X30

92154-7282

$1.64

92154D

BOLT,BAR END

92154-7319

$10.03

92154E

BOLT,SOCKET,6X16

92154-7346

$2.37

92161

DAMPER,12X26X19

92161-2116

$4.58

92172

SCREW,3X16

92172-0183

$1.57

92172A

SCREW,5X12

92172-0857

$0.69

92173

CLAMP

92173-2199

$1.32

92173A

CLAMP,HANDLE,UPP,LH

92173-2845

$7.20

92173B

CLAMP,HANDLE,UPP,RH

92173-2846

$7.20

92173C

CLAMP,HANDLE,LWR

92173-2847

$4.98

92200

WASHER,12.5X27.6X1.2

92200-0872

$4.18

92200A

WASHER,6.5X11.5X0.8

92200-0947

$0.44

92210

NUT,LOCK,10MM

92210-1672

$3.51

120

BOLT-SOCKET,6X25

120CB0625

$1.81

220

SCREW-PAN-CROS,5X22

220AB0522

$0.89

220A

SCREW-PAN-CROS,5X40

220AB0540

$1.49

221

SCREW-CSK-CROS,5X10

221AB0510

$4.02

410

WASHER-PLAIN-SMALL,6MM

410AB0600

$0.68
