2026 Kawasaki KLX®230 Sherpa S ABS Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2026 Kawasaki KLX®230 Sherpa S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

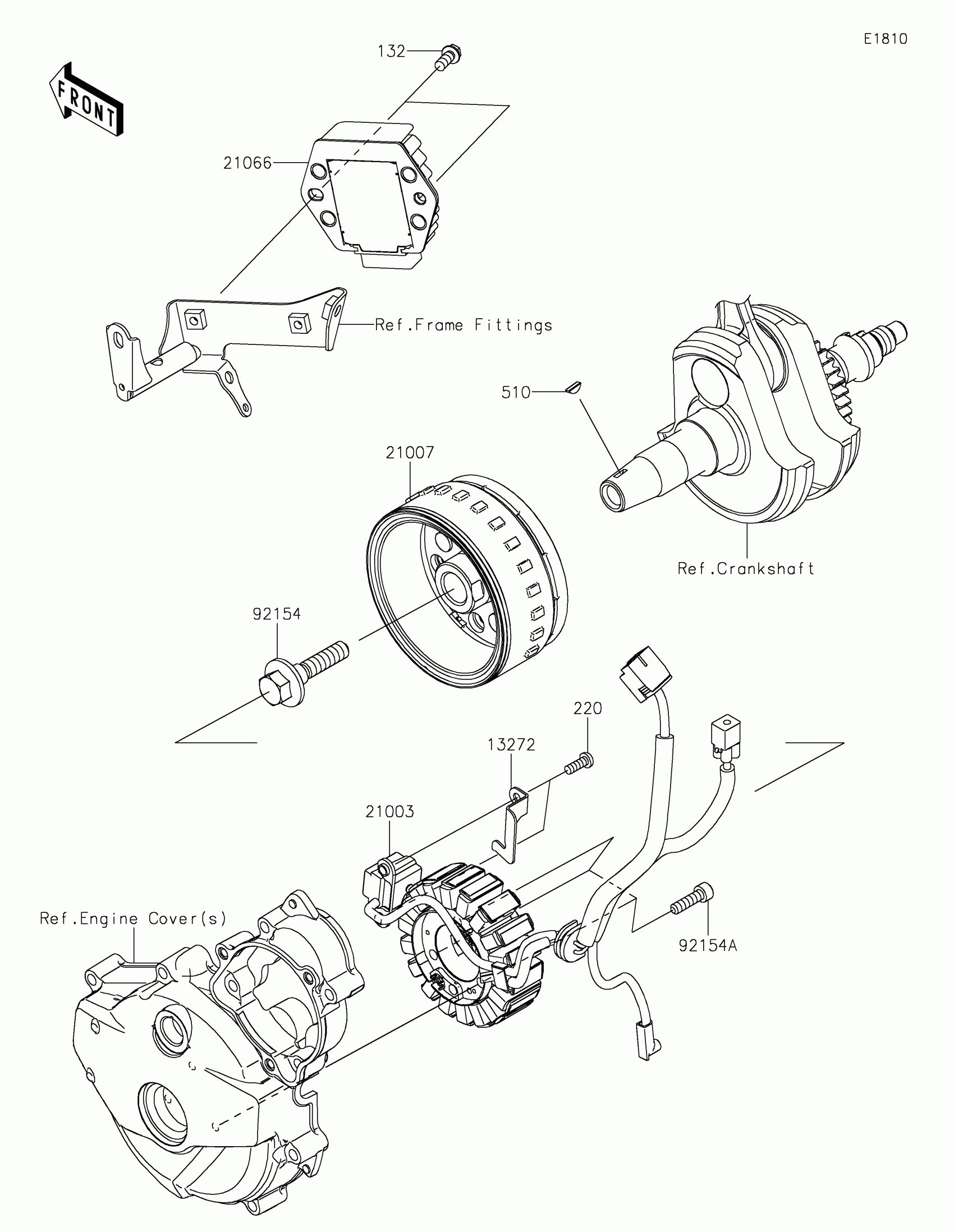

2026 Kawasaki KLX®230 Sherpa S ABS Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE,PULSING COIL

13272-2615

1
Out of stock

21003

STATOR

21003-0211

1
Out of stock

21007

ROTOR

21007-0722

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-0793

1
Out of stock

92154

BOLT

92154-1309

1
Out of stock

92154A

BOLT,SOCKET,6X22

92154-7473

1
Out of stock

132

BOLT-FLANGED-SMALL,6X14

132BA0614

1
Out of stock

220

SCREW-PAN-CROS,5X14

220AA0514

1
Out of stock

510

KEY-WOODRUFF

510A3100

1
Out of stock
