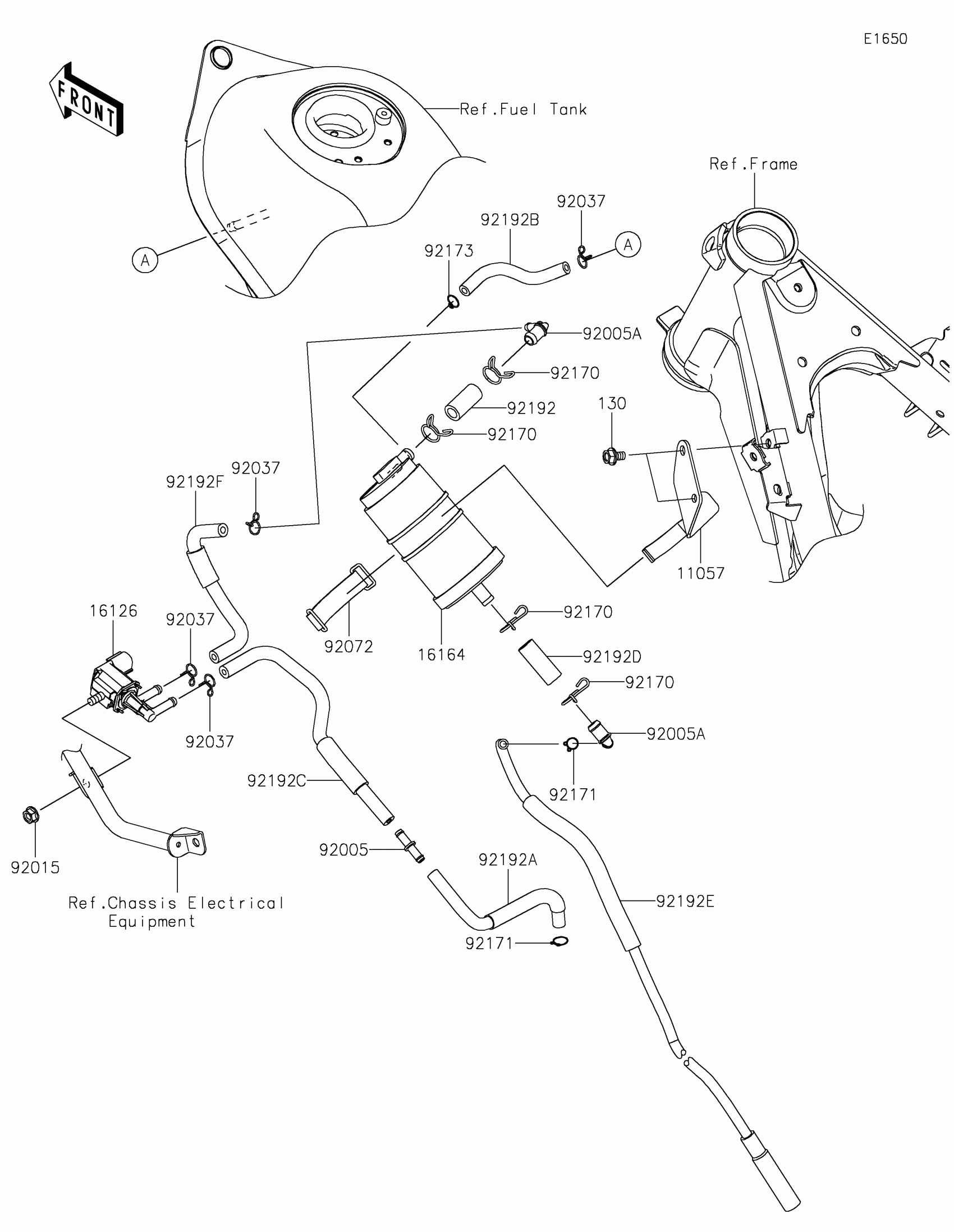

Kawasaki KLX®230 SHERPA S ABS Fuel Evaporative System Diagram

Description

Price

11057

BRACKET,CANISTER

11057-2428

$11.91

16126

VALVE,SOLENOID

16126-0705

$106.99

16164

CANISTER

16164-0022

$133.94

92005

FITTING

92005-0721

$9.09

92005A

FITTING

92005-0753

$5.01

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP

92037-1712

$5.00

92072

BAND,L=50

92072-1419

$16.08

92170

CLAMP

92170-1695

$2.78

92171

CLAMP

92171-0573

$1.34

92173

CLAMP

92173-1190

$2.55

92192

TUBE,9X14.4X30

92192-1757

$16.30

92192A

TUBE,PCV-THB

92192-1939

$39.34

92192B

TUBE,FUEL TANK-CANISTER

92192-1973

$29.64

92192C

TUBE,PCV-THROTTLE BODY

92192-1974

$39.81

92192D

TUBE,DRAIN,9X14X36

92192-2681

$2.04

92192E

TUBE,DRAIN

92192-2686

$22.44

92192F

TUBE,FITTING-PCV

92192-2821

$30.51

130

BOLT-FLANGED,6X10

130BA0610

$1.20
