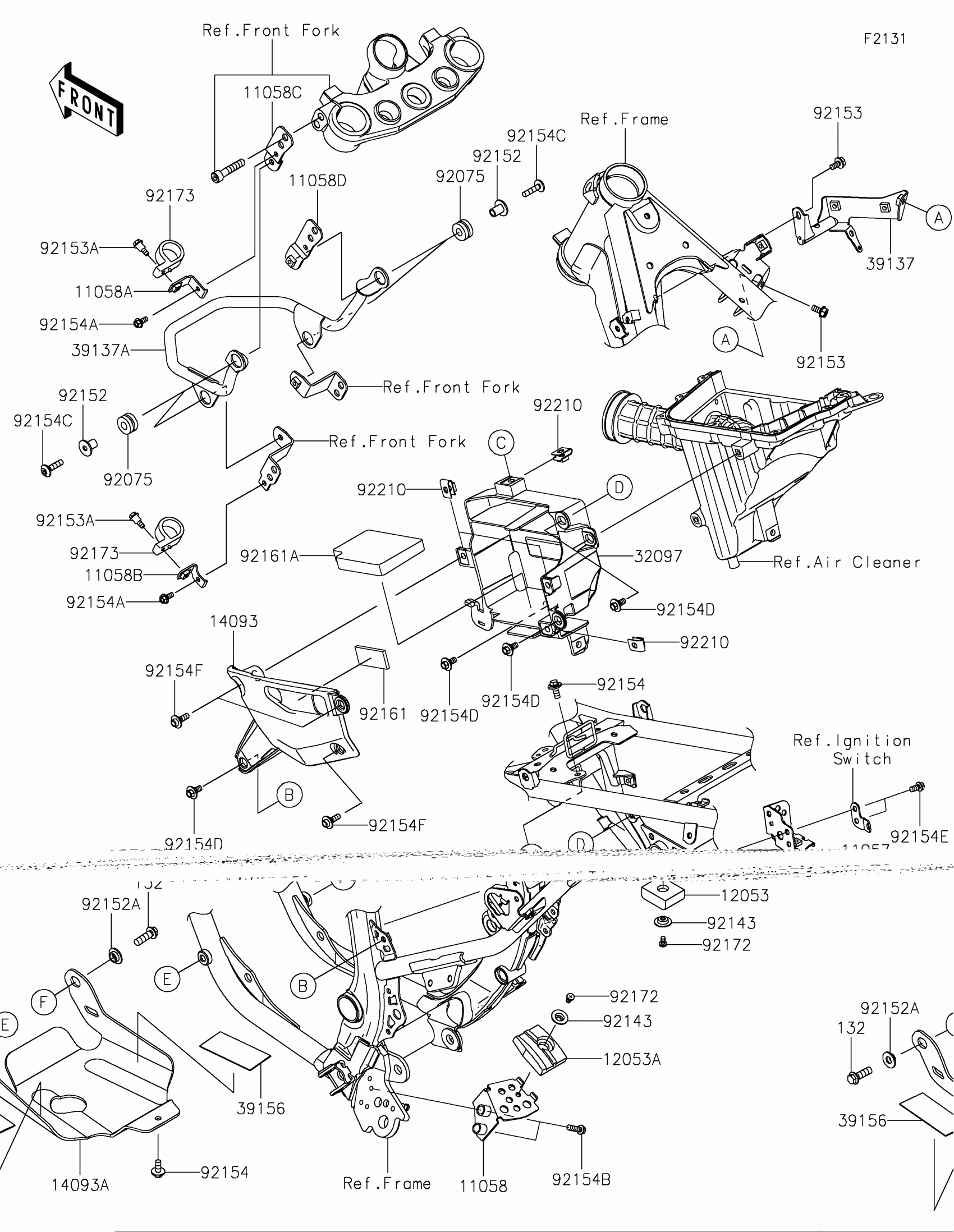

Kawasaki KLX®230 SHERPA S ABS Frame Fittings Diagram

#

Description
Price

11057

BRACKET,UPP

11057-2067

$13.61

11058

BRACKET,LWR

11058-0854

$16.29

11058A

BRACKET,UPP

11058-2292

$2.34

11058B

BRACKET,LWR

11058-2293

$1.93

11058C

BRACKET,UPP,LH

11058-4096

$5.88

11058D

BRACKET,UPP,RH

11058-4097

$5.49

12053

GUIDE-CHAIN,UPP

12053-0270

$2.27

12053A

GUIDE-CHAIN,LWR

12053-0271

$2.44

14093

COVER,BATTERY CASE

14093-1562

$34.54

14093A

COVER,SKID PLATE

14093-1564

$179.28

32097

CASE-BATTERY

32097-0571

$31.34

39137

STAY-COMP,REGULATOR,F.W.SILVER

39137-0753-67Q

$33.70

39137A

STAY-COMP,HEAD LAMP,F.W.SILVER

39137-0781-67Q

$68.82

39156

PAD,85X35X1

39156-2976

$7.83

92075

DAMPER RUBBER,RR FENR

92075-209

$3.57

92143

COLLAR

92143-1676

$4.67

92152

COLLAR

92152-0604

$6.62

92152A

COLLAR

92152-3859

$2.03

92153

BOLT,FLANGED,6X12

92153-1283

$1.73

92153A

BOLT,FLANGED

92153-1397

$3.51

92154

BOLT,FLANGED-SMALL,6X16

92154-1183

$1.32

92154A

BOLT,FLANGED,5X12

92154-1215

Unavailable

92154B

BOLT,FLANGED,6X20

92154-2757

$2.41

92154C

BOLT,SOCKET,6X25

92154-4306

$1.95

92154D

BOLT,FLANGED,6X13

92154-4411

$2.84

92154E

BOLT,FLANGED,6X12

92154-7279

$1.12

92154F

BOLT,FLANGED,6X14

92154-7286

$2.17

92161

DAMPER,49X23X4

92161-2536

$3.53

92161A

DAMPER,BATTERY CASE

92161-2581

$23.76

92172

SCREW,5X8

92172-1540

$1.71

92173

CLAMP

92173-2246

$8.53

92210

NUT,6MM

92210-0218

$1.81

132

BOLT-FLANGED-SMALL,8X25

132BA0825

$3.69
