Description

Price

13086

WHEEL-CLUTCH

13086-0008

$161.68

13087

HUB-CLUTCH

13087-0588

$148.71

13088

PLATE-FRICTION

13088-0562

$20.09

13088A

PLATE-FRICTION

13088-0603

$21.00

13089

PLATE-CLUTCH

13089-1085

$13.74

13089A

PLATE-CLUTCH,T=1.6

13089-1094

$12.80

13089B

PLATE-CLUTCH,T=2.0

13089-1116

Unavailable

13089C

PLATE-CLUTCH,T=1.2

13089-1117

Unavailable

13095

HOUSING-COMP-CLUTCH

13095-0595

$234.45

13102

RELEASE-COMP-CLUTCH

13102-0084

$58.84

13114

PUSHER-CLUTCH

13114-0001

$11.32

13280

HOLDER,CLUTCH PUSHER

13280-0812

$14.10

13280A

HOLDER,CLUTCH SPRING

13280-0936

$39.50

92015

NUT,16MM

92015-1581

$19.64

92022

WASHER,16.3X29X1.75

92022-1356

$7.34

92022A

WASHER,JUDDER SPRING

92022-1974

$15.16

92022B

WASHER,JUDDER SPRING SEAT

92022-1993

$15.16

92026

SPACER,20.3X36.6X2

92026-0725

$13.49

92045

BEARING-BALL,627UMC3 J

92045-0915

$14.34

92145

SPRING

92145-1846

$14.96

92152

COLLAR,20X26.8X26.7

92152-2550

$30.40

92154

BOLT,6X25

92154-3785

$1.78

92200

WASHER,7X12.5X0.8

92200-0909

$3.86

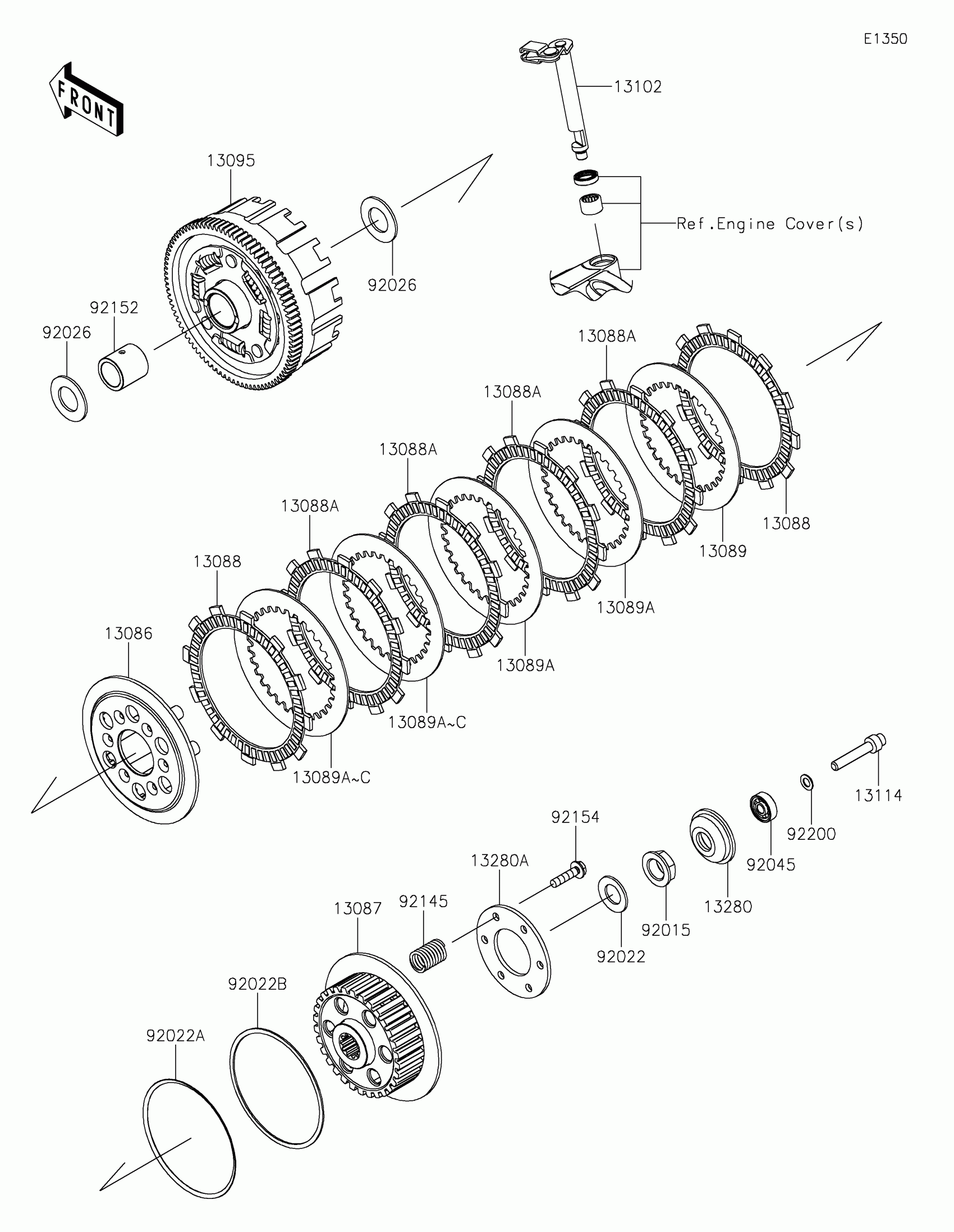

Kawasaki KLX®230 SHERPA S ABS Clutch Diagram

WHEEL-CLUTCH

HUB-CLUTCH

PLATE-FRICTION

PLATE-FRICTION

PLATE-CLUTCH

PLATE-CLUTCH,T=1.6

PLATE-CLUTCH,T=2.0

PLATE-CLUTCH,T=1.2

HOUSING-COMP-CLUTCH

RELEASE-COMP-CLUTCH

PUSHER-CLUTCH

HOLDER,CLUTCH PUSHER

HOLDER,CLUTCH SPRING

NUT,16MM

WASHER,16.3X29X1.75

WASHER,JUDDER SPRING

WASHER,JUDDER SPRING SEAT

SPACER,20.3X36.6X2

BEARING-BALL,627UMC3 J

SPRING

COLLAR,20X26.8X26.7

BOLT,6X25

WASHER,7X12.5X0.8
