- KLX®230 SHERPA S ABS
Chassis Electrical Equipment

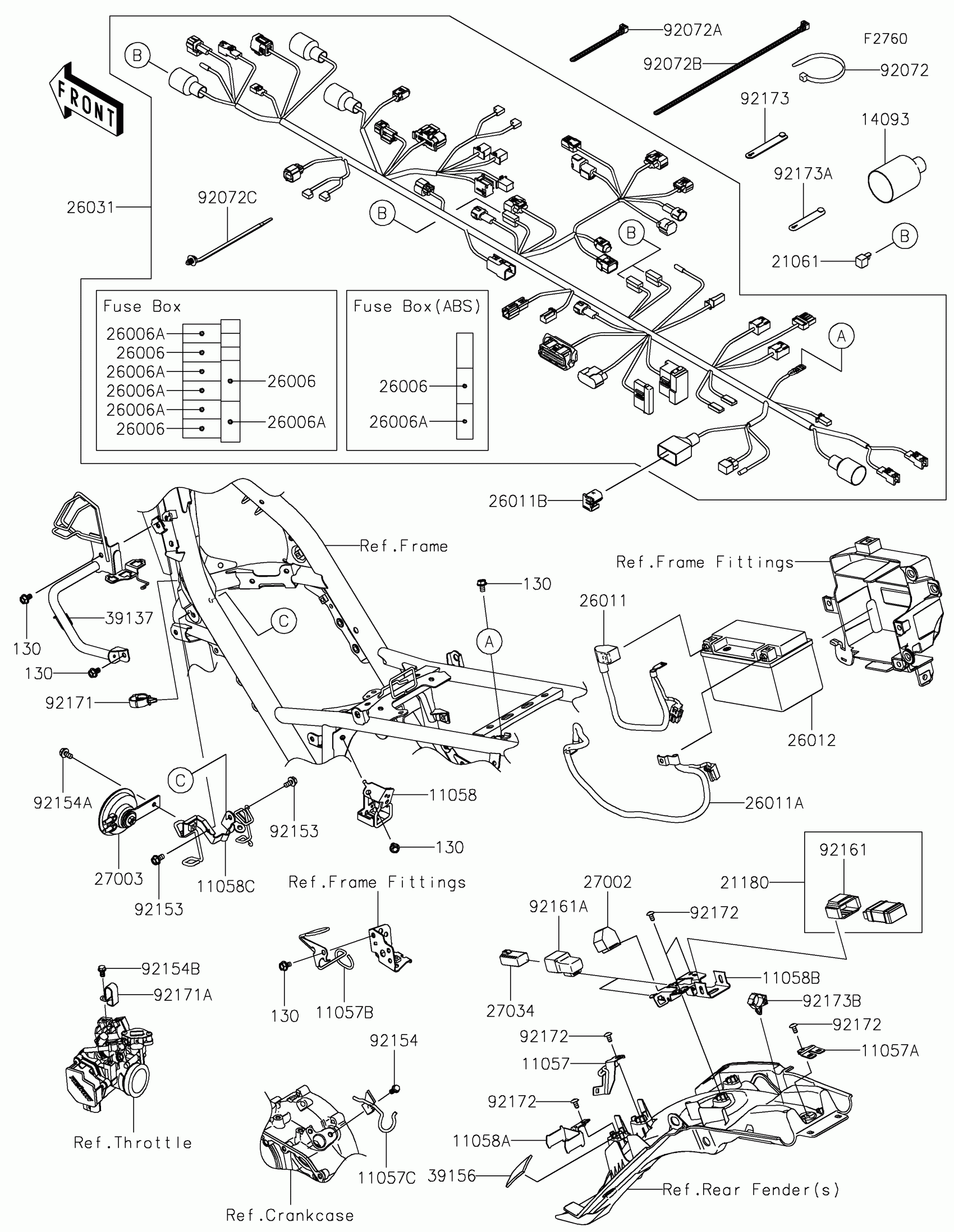

Kawasaki KLX®230 SHERPA S ABS Chassis Electrical Equipment Diagram
#
11057
BRACKET,FUSE BOX
11057-2350
$3.26
11057A
BRACKET,RR HARNESS
11057-2351
$2.10
11057B
BRACKET
11057-2463
$10.21
11057C
BRACKET,BRAKE HOSE&HARNESS
11057-2772
$8.74
11058
BRACKET
11058-1293
$20.07
11058A
BRACKET
11058-1296
$5.01
11058B
BRACKET
11058-1299
$19.32
11058C
BRACKET,HORN
11058-2059
$13.57
14093
COVER,HARNESS
14093-0720
$4.55
21061
RECTIFIER
21061-1003
$29.60
21180
TRANSCEIVER,BLUETOOTH
21180-0007
$175.30
26006
FUSE,MINI BLADE,15A,BLUE
26006-0001
$6.12
26006A
FUSE,MINI BLADE,10A,RED
26006-1078
$4.87
26011
WIRE-LEAD,BATTERY(+)
26011-2455
$59.94
26011A
WIRE-LEAD,BATTERY(-)
26011-2456
$57.72
26011B
WIRE-LEAD,DIAG CONNECTOR
26011-2468
$5.86
26012
BATTERY,YTX7A-BS,12V 6.3AH
26012-1599
$201.03
26031
HARNESS,MAIN
26031-4406
$710.28
27002
RELAY-ASSY,TURN SIGNAL
27002-0031
$25.81
27003
HORN
27003-0166
$77.12
27034
RELAY
27034-0012
$36.91
39137
STAY-COMP
39137-0749
$50.14
39156
PAD,55X30X5
39156-2451
$1.98
92072
BAND,L=152
92072-0948
$4.02
92072A
BAND,L=140
92072-0949
$7.11
92072B
BAND,L=250
92072-0950
$2.14
92072C
BAND,OS170-FT7(BLACK)
92072-1414
Unavailable
92153
BOLT,FLANGED,6X12
92153-1283
$2.41
92154
BOLT,FLANGED,6X12
92154-1776
$0.63
92154A
BOLT,FLANGED,6X12
92154-2776
$2.70
92154B
BOLT,FLANGED,6X10
92154-7280
$1.65
92161
DAMPER
92161-2516
$15.38
92161A
DAMPER,RELAY
92161-2546
$5.81
92171
CLAMP,20MM DIA.
92171-0069
$2.80
92171A
CLAMP
92171-0911
$7.68
92172
SCREW,CROS,5X10
92172-1255
$0.42
92173
CLAMP
92173-2194
$1.83
92173A
CLAMP
92173-2199
$1.48
92173B
CLAMP
92173-2737
$3.88
130
BOLT-FLANGED,6X10
130BA0610
$1.20
