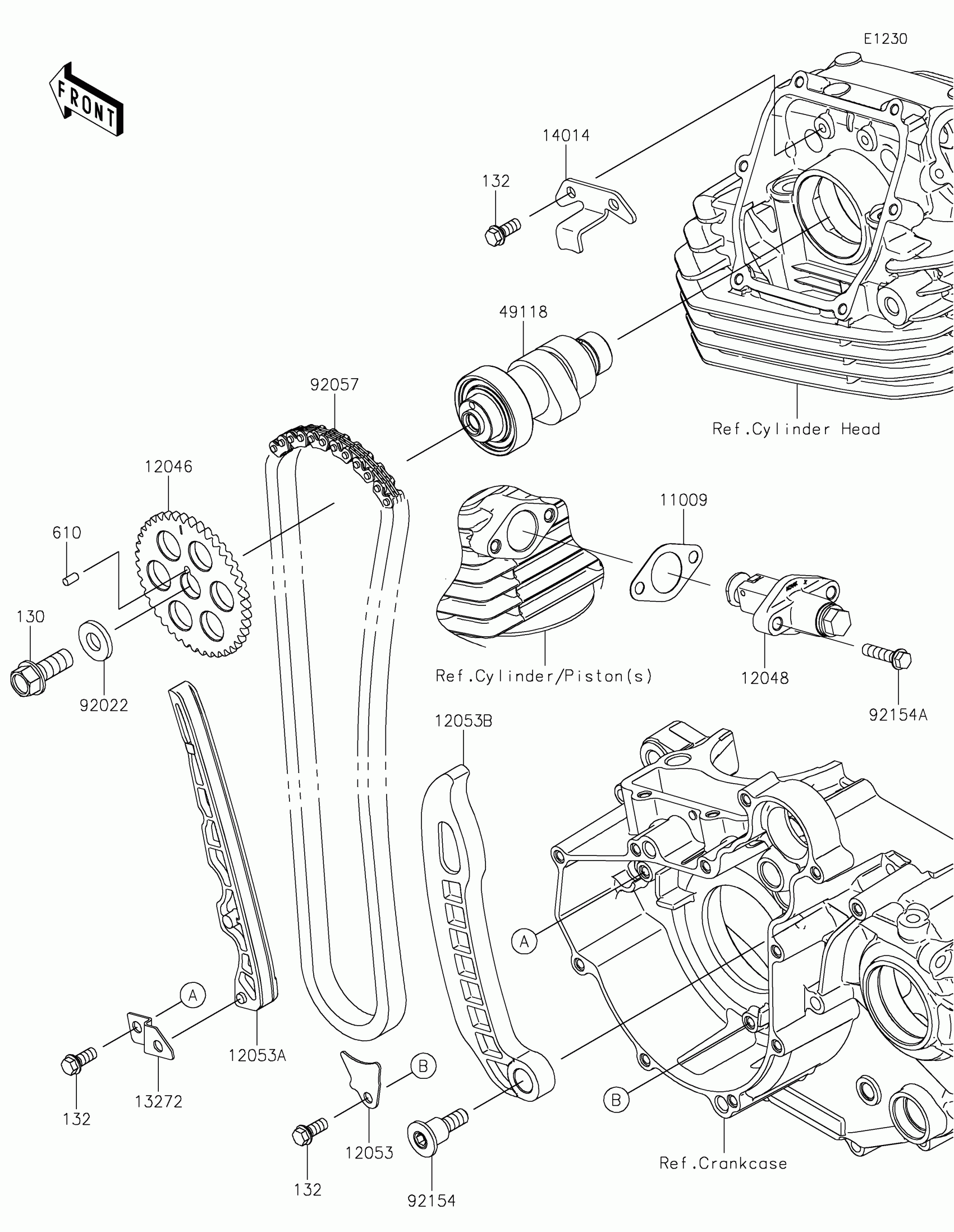

Kawasaki KLX®230 SHERPA S ABS Camshaft(s)/Tensioner Diagram

Description

Price

11009

GASKET,TENSIONER

11009-1858

$4.61

12046

SPROCKET,42T

12046-0615

$50.75

12048

TENSIONER-ASSY

12048-0127

$126.43

12053

GUIDE-CHAIN,LWR

12053-0275

$4.55

12053A

GUIDE-CHAIN,FR

12053-0315

$43.40

12053B

GUIDE-CHAIN,RR

12053-0316

$60.91

13272

PLATE,CHAIN GUIDE

13272-2626

$4.10

14014

PLATE-POSITION

14014-0578

$14.80

49118

CAMSHAFT-COMP

49118-0970

$308.68

92022

WASHER,10X22X3

92022-1365

$5.52

92057

CHAIN,CAM,SCZ-0407SV-110L

92057-0949

$22.88

92154

BOLT

92154-1307

$24.01

92154A

BOLT,FLANGED-SMALL,6X25

92154-7471

$2.70

130

BOLT-FLANGED,10X25

130BA1025

$3.40

132

BOLT-FLANGED-SMALL,6X14

132BD0614

$3.67

610

ROLLER,4X8

610A0408

$4.31
