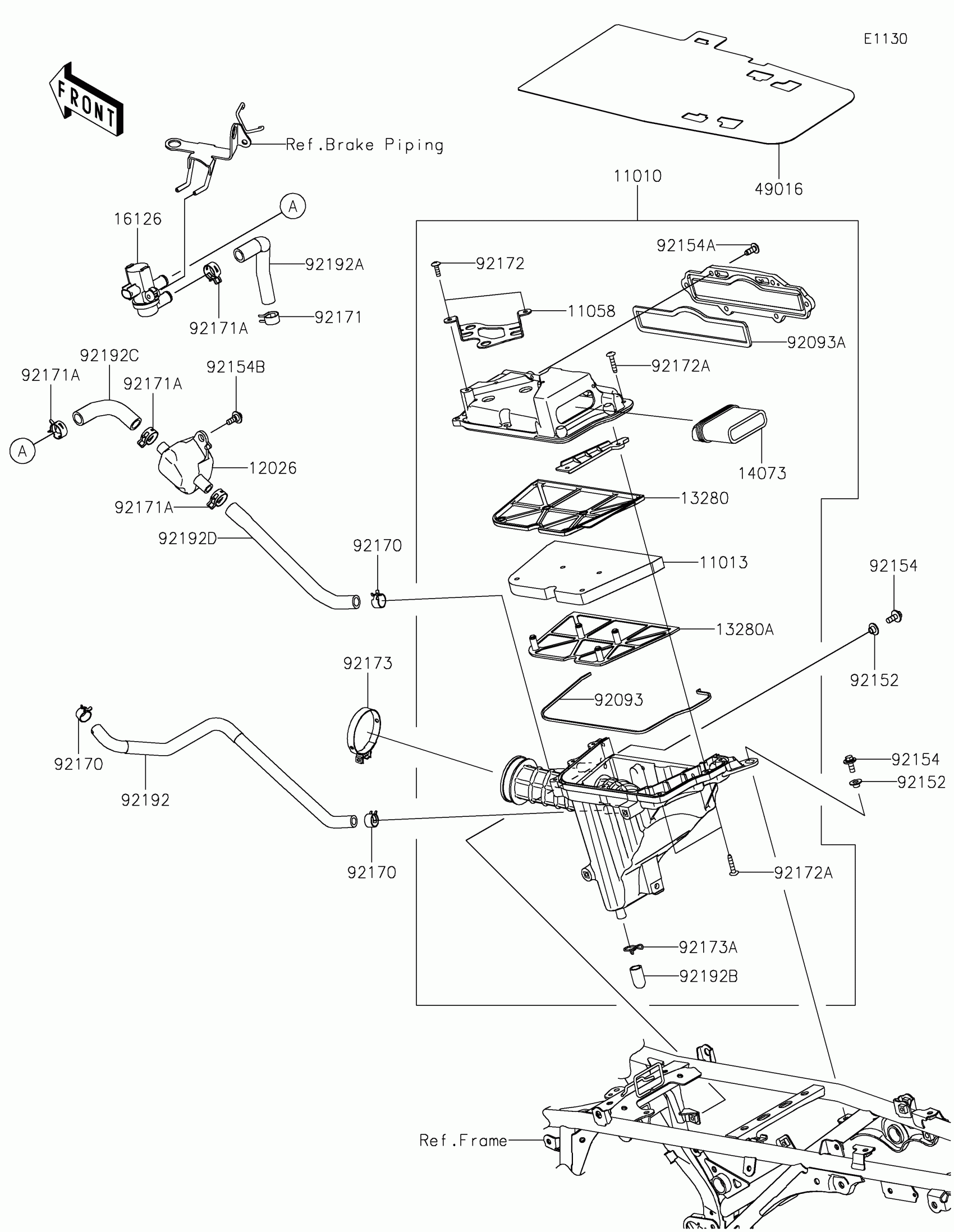

Kawasaki KLX®230 SHERPA S ABS Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-1845

$223.17

11013

ELEMENT-AIR FILTER

11013-0790

$13.41

11058

BRACKET,ECU

11058-1337

$36.48

12026

CHAMBER

12026-0026

$44.84

13280

HOLDER,UPP

13280-0945

$3.10

13280A

HOLDER,LWR

13280-0946

$12.59

14073

DUCT,IN

14073-1931

$61.07

16126

VALVE,AIR SWITCH

16126-0750

$86.26

49016

COVER-SEAL

49016-0729

$23.85

92093

SEAL

92093-0727

$4.64

92093A

SEAL

92093-0728

$34.20

92152

COLLAR,6.3X8.3X6.2

92152-2586

$7.41

92154

BOLT,FLANGED-SMALL,6X16

92154-1183

$1.32

92154A

BOLT,6X16

92154-3970

$2.12

92154B

BOLT,FLANGED,6X12

92154-7289

$4.58

92170

CLAMP,BRAKE HOSE

92170-1434

$11.81

92171

CLAMP

92171-0533

$2.71

92171A

CLAMP,18.8MM

92171-2056

$1.27

92172

SCREW,5X16

92172-0908

$2.07

92172A

SCREW

92172-1291

$1.22

92173

CLAMP

92173-2191

$13.63

92173A

CLAMP,14MM

92173-2474

$4.32

92192

TUBE,BLOW-BY

92192-1929

$23.47

92192A

TUBE,ASWV-HEAD

92192-1930

$12.59

92192B

TUBE

92192-2582

$7.44

92192C

TUBE,CHAMBER-ASWV

92192-2723

$8.00

92192D

TUBE,A/C-CHAMBER

92192-2724

$12.76
