Starter Motor

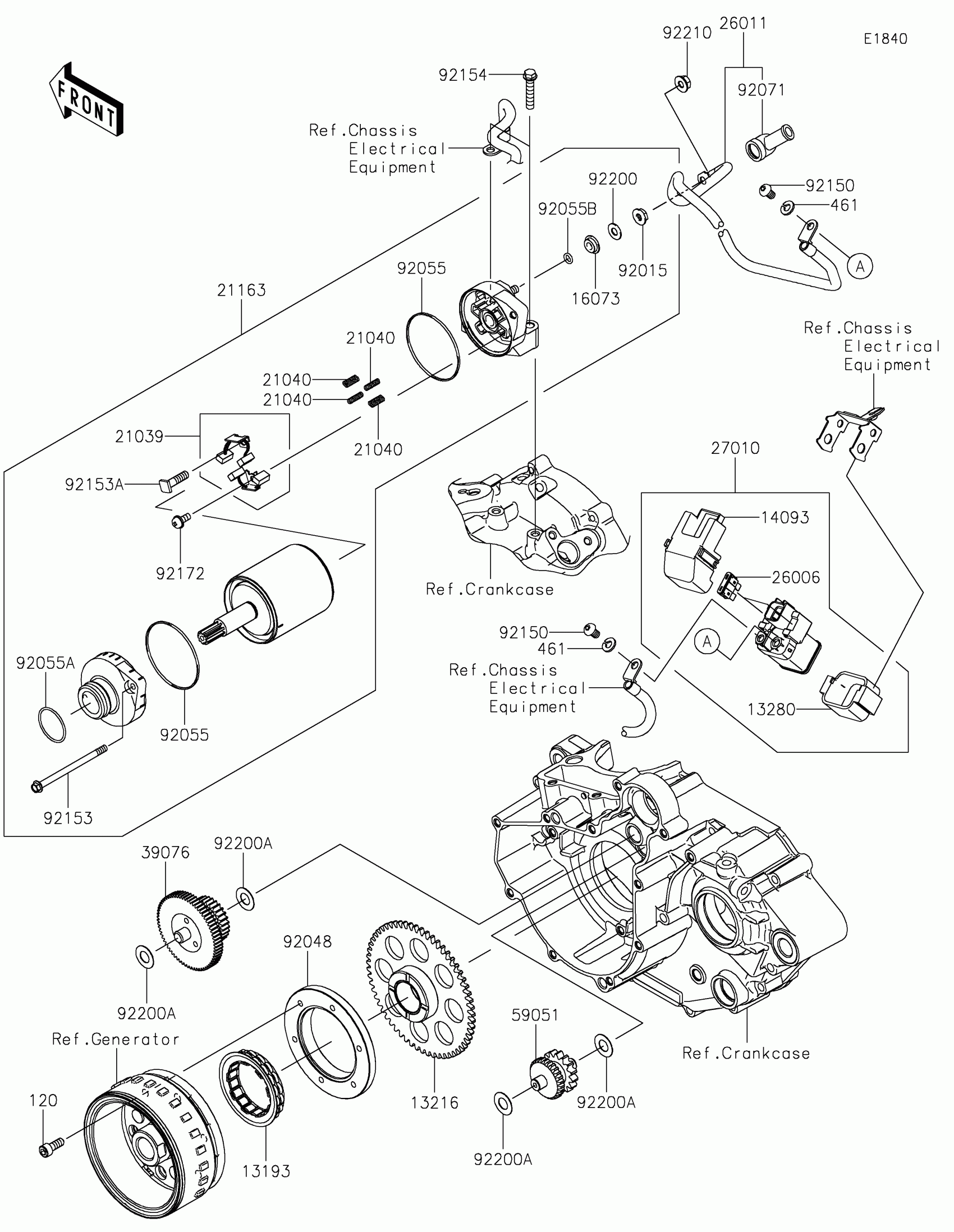

Kawasaki KLX®230 SE Starter Motor Diagram
#
Description
Price
13193
CLUTCH-ASSY-ONEWAY
13193-0007
$119.24
13216
GEAR-COMP,ONEWAY CLUTCH
13216-0900
$147.32
13280
HOLDER
13280-0710
$14.49
14093
COVER
14093-0199
$18.77
16073
INSULATOR
16073-0053
$11.93
21039
BRUSH,CARBON
21039-0004
$117.72
21040
SPRING-BRUSH
21040-0003
$9.79
21163
STARTER-ELECTRIC
21163-0783
$318.20
26006
FUSE,BLADE,30A,GREEN
26006-1006
$4.96
26011
WIRE-LEAD
26011-0890
$30.12
27010
SWITCH
27010-0754
$135.59
39076
LIMITER,STARTER IDLE GEAR
39076-0020
$183.19
59051
GEAR-SPUR,IDLER
59051-0824
$57.70
92015
NUT,STARTER MOTOR
92015-1476
$4.31
92048
RACE,ONEWAY CLUTCH
92048-0030
$54.21
92055
RING-O
92055-0136
$7.75
92055A
RING-O
92055-1276
$9.91
92055B
RING-O,4.5X2.0
92055-1370
$4.69
92071
GROMMET
92071-0024
$10.21
92150
BOLT,6X10
92150-1577
$3.60
92153
BOLT
92153-1850
$11.93
92153A
BOLT
92153-1866
$4.65
92154
BOLT,FLANGED,6X30
92154-1773
$1.19
92172
SCREW
92172-0334
$4.65
92200
WASHER
92200-0386
$4.65
92200A
WASHER,10.2X20X0.5
92200-1976
$3.94
92210
NUT,6MM
92210-0188
$2.15
120
BOLT-SOCKET,6X16
120CA0616
$2.49
461
WASHER-SPRING,6MM
461DB0600
$0.65
