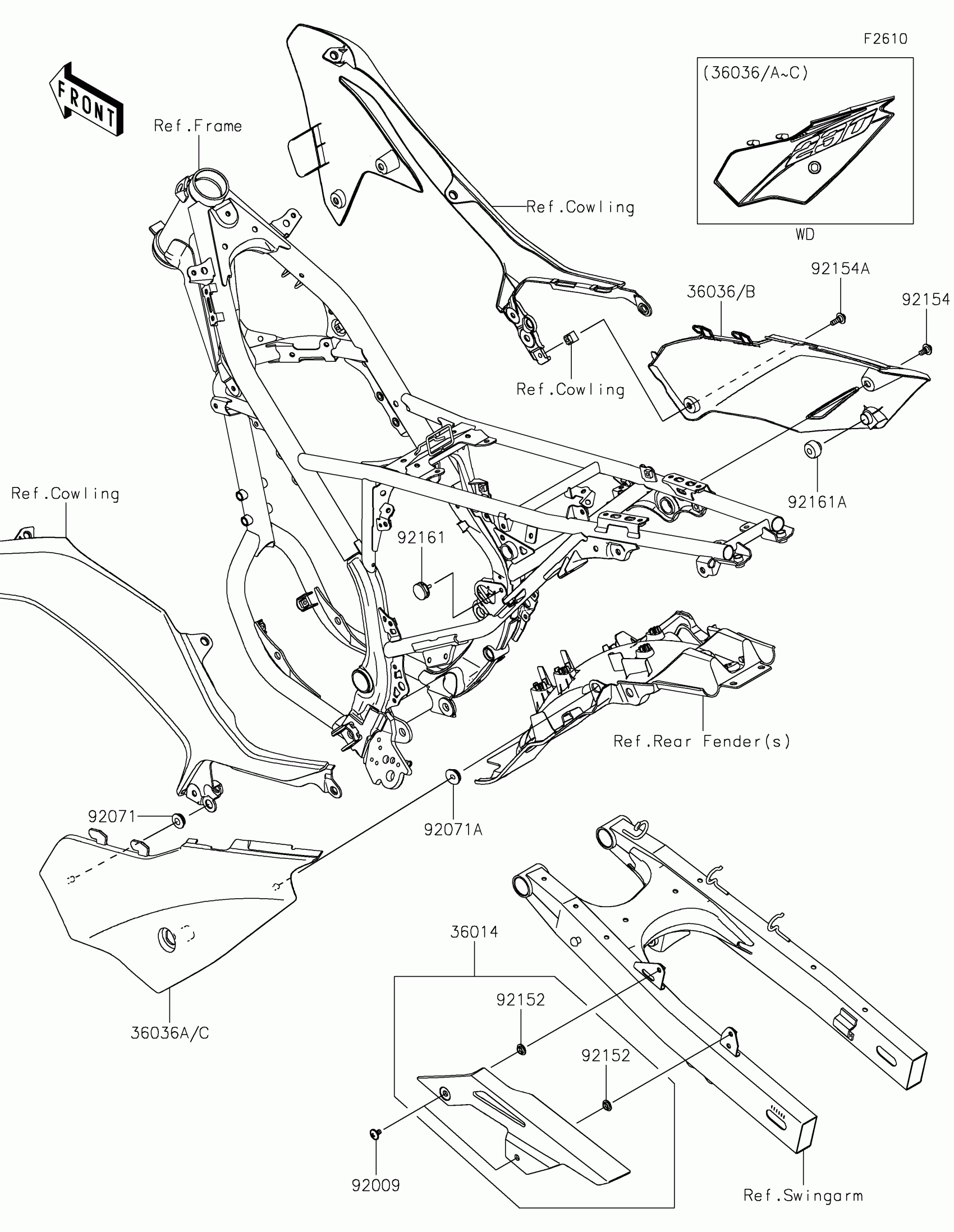

Kawasaki KLX®230 SE Side Covers/Chain Cover Diagram

Description

Price

36014

CASE-CHAIN

36014-0560

$17.48

36036

COVER-SIDE,RH,EBONY

36036-5231-6C

$145.12

36036A

COVER-SIDE,LH,EBONY

36036-5232-6C

$145.12

36036B

COVER-SIDE,RH,EBONY

36036-5233-6C

$145.12

36036C

COVER-SIDE,LH,EBONY

36036-5234-6C

$145.12

92009

SCREW,6X10

92009-1729

$0.22

92071

GROMMET

92071-0794

$1.36

92071A

GROMMET

92071-0795

$1.36

92152

COLLAR,8.8X16X4

92152-1731

$5.65

92154

BOLT,FLANGED,6X9

92154-0546

$3.74

92154A

BOLT,FLANGED,6X28

92154-1739

$2.75

92161

DAMPER

92161-0581

$1.94

92161A

DAMPER

92161-1783

$5.44
