Description

Price

11057

BRACKET

11057-3910

$25.42

13070

GUIDE

13070-0909

$6.46

14069

BREATHER,FUEL TANK

14069-0033

$10.19

39156

PAD

39156-2463

$6.81

51001

TANK-COMP-FUEL,F.S.BLACK

51001-0902-25Q

$749.58

51049

CAP-TANK

51049-0735

$136.31

92037

CLAMP,12.5MM

92037-1271

$2.79

92037

CLAMP,12.5MM

92037-1271

$2.79

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92151

BOLT,FLANGED,6X30

92151-1105

$4.39

92152

COLLAR,6.8X10X16

92152-2666

$9.47

92154

BOLT,FLANGED,6X10

92154-0459

$7.65

92161

DAMPER,FUEL TANK,FR

92161-1392

$3.35

92161A

DAMPER,8X22X10

92161-1685

$0.88

92161B

DAMPER

92161-2216

$2.10

92161C

DAMPER

92161-2217

$1.37

92161D

DAMPER

92161-2231

$9.95

92161E

DAMPER

92161-2286

$6.52

92192

TUBE,DRAIN

92192-1949

$18.38

92192A

TUBE,10X14X870

92192-1964

$19.58

92192B

TUBE,10X14X26

92192-1965

$1.81

120

BOLT-SOCKET,5X12

120CA0512

$1.57

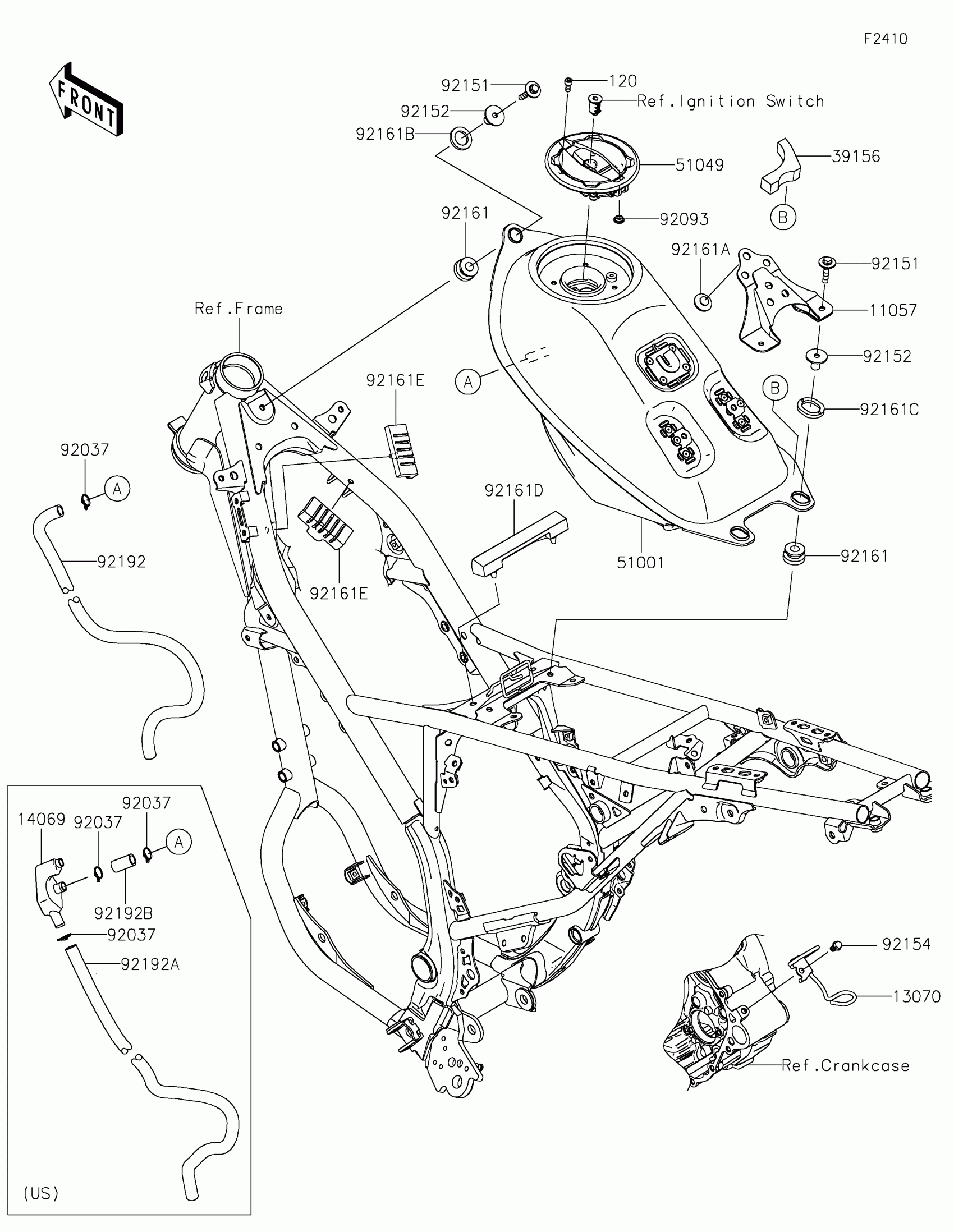

Kawasaki KLX®230 SE Fuel Tank Diagram

BRACKET

GUIDE

BREATHER,FUEL TANK

PAD

TANK-COMP-FUEL,F.S.BLACK

CAP-TANK

CLAMP,12.5MM

CLAMP,12.5MM

SEAL,FUEL TANK CAP

BOLT,FLANGED,6X30

COLLAR,6.8X10X16

BOLT,FLANGED,6X10

DAMPER,FUEL TANK,FR

DAMPER,8X22X10

DAMPER

DAMPER

DAMPER

DAMPER

TUBE,DRAIN

TUBE,10X14X870

TUBE,10X14X26

BOLT-SOCKET,5X12
