Front Fork

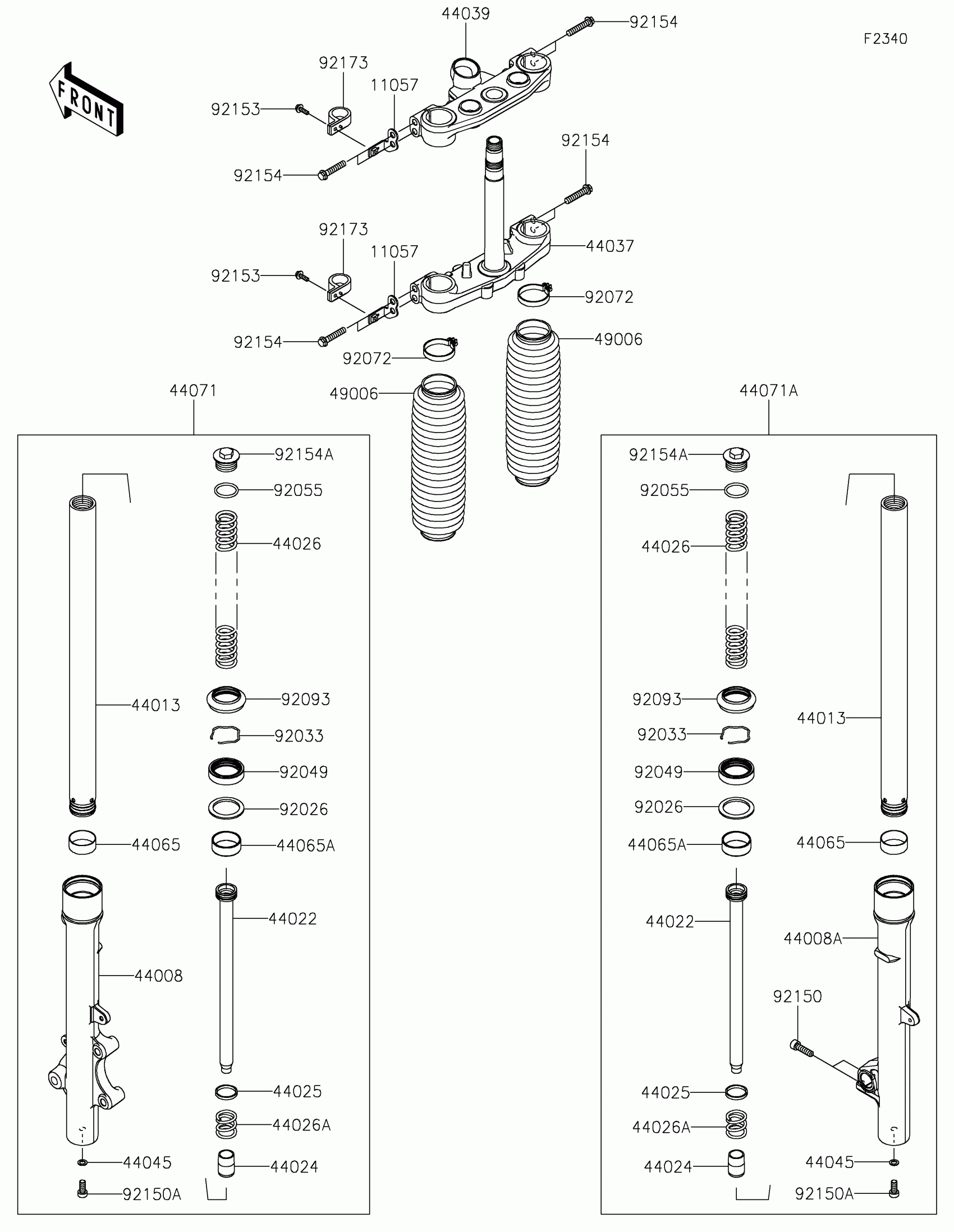

Kawasaki KLX®230 SE Front Fork Diagram
#
Description
Price
11057
BRACKET
11057-2284
$17.10
44008
PIPE-FORK OUTER,LH
44008-0089
$242.79
44008A
PIPE-FORK OUTER,RH
44008-0090
$242.79
44013
PIPE-FORK INNER
44013-0355
$229.57
44022
CYLINDER-FORK
44022-0056
$70.91
44024
CAP-OIL-LOCK
44024-0016
$22.60
44025
RING-FORK PISTON
44025-1062
$10.02
44026
SPRING-FRONT FORK
44026-0241
$51.50
44026A
SPRING-FRONT FORK
44026-1556
$6.40
44037
HOLDER-FORK UNDER
44037-0191
$263.70
44039
HOLDER-FORK UPPER
44039-0193
$296.37
44045
GASKET,FORK CYLINDER BOLT
44045-051
$6.16
44065
BUSHING-FRONT FORK
44065-0067
$43.34
44065A
BUSHING-FRONT FORK
44065-0068
$43.34
44071
DAMPER-ASSY,LH
44071-1363
$477.90
44071A
DAMPER-ASSY,RH
44071-1364
$477.90
49006
BOOT
49006-0612
$61.13
92026
SPACER,FORK
92026-1443
$8.58
92033
RING-SNAP
92033-1286
$8.03
92049
SEAL-OIL
92049-0734
$21.20
92055
RING-O
92055-1456
$3.60
92072
BAND
92072-0826
$18.55
92093
SEAL,FORK OUTER
92093-1367
$21.57
92150
BOLT,SOCKET,8X30
92150-1407
$2.80
92150A
BOLT,SOCKET,8X18
92150-1432
$9.91
92153
BOLT,FLANGED
92153-1397
$3.90
92154
BOLT
92154-0463
$4.41
92154A
BOLT
92154-3953
$17.10
92173
CLAMP
92173-2246
$8.74
