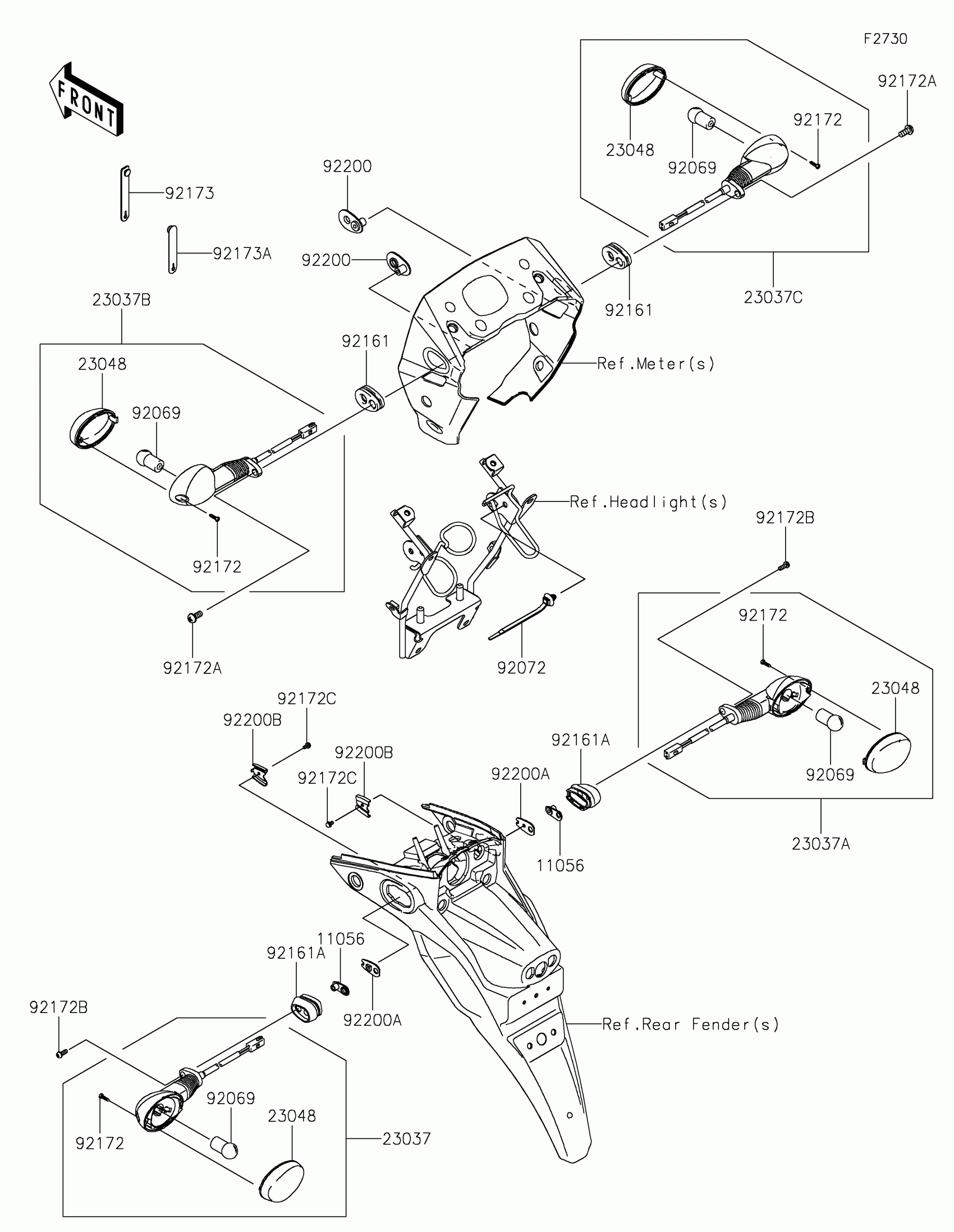

Kawasaki KLX®230 S Turn Signals Diagram

Description

Price

11056

BRACKET,6MM

11056-4156

$4.96

23037

LAMP-ASSY-SIGNAL,RR,LH

23037-0418

$49.25

23037A

LAMP-ASSY-SIGNAL,RR,RH

23037-0419

$49.25

23037B

LAMP-ASSY-SIGNAL,FR,LH

23037-0456

$71.63

23037C

LAMP-ASSY-SIGNAL,FR,RH

23037-0457

$71.63

23048

LENS-SIGNAL LAMP

23048-0035

$10.86

92069

BULB,12V 10W

92069-0106

$4.15

92072

BAND,OS170-FT7(BLACK)

92072-0947

$3.58

92161

DAMPER,MOUNT,FR

92161-2113

$7.60

92161A

DAMPER,SIGNAL LAMP

92161-2549

$7.74

92172

SCREW,TAPPING,2.9X13

92172-0343

$1.78

92172A

SCREW,6X14

92172-0497

$5.38

92172B

SCREW-PAN-WP-CROS,6X14

92172-1256

$4.13

92172C

SCREW,4X8

92172-1542

$3.52

92173

CLAMP

92173-2198

$1.48

92173A

CLAMP

92173-2199

$1.48

92200

WASHER,SIGNAL LAMP

92200-0370

$8.68

92200A

WASHER,W/NUT,M4

92200-1978

$3.94

92200B

WASHER

92200-1979

$3.94
