2022 Kawasaki KLX®230 S Throttle Diagram

← All diagrams

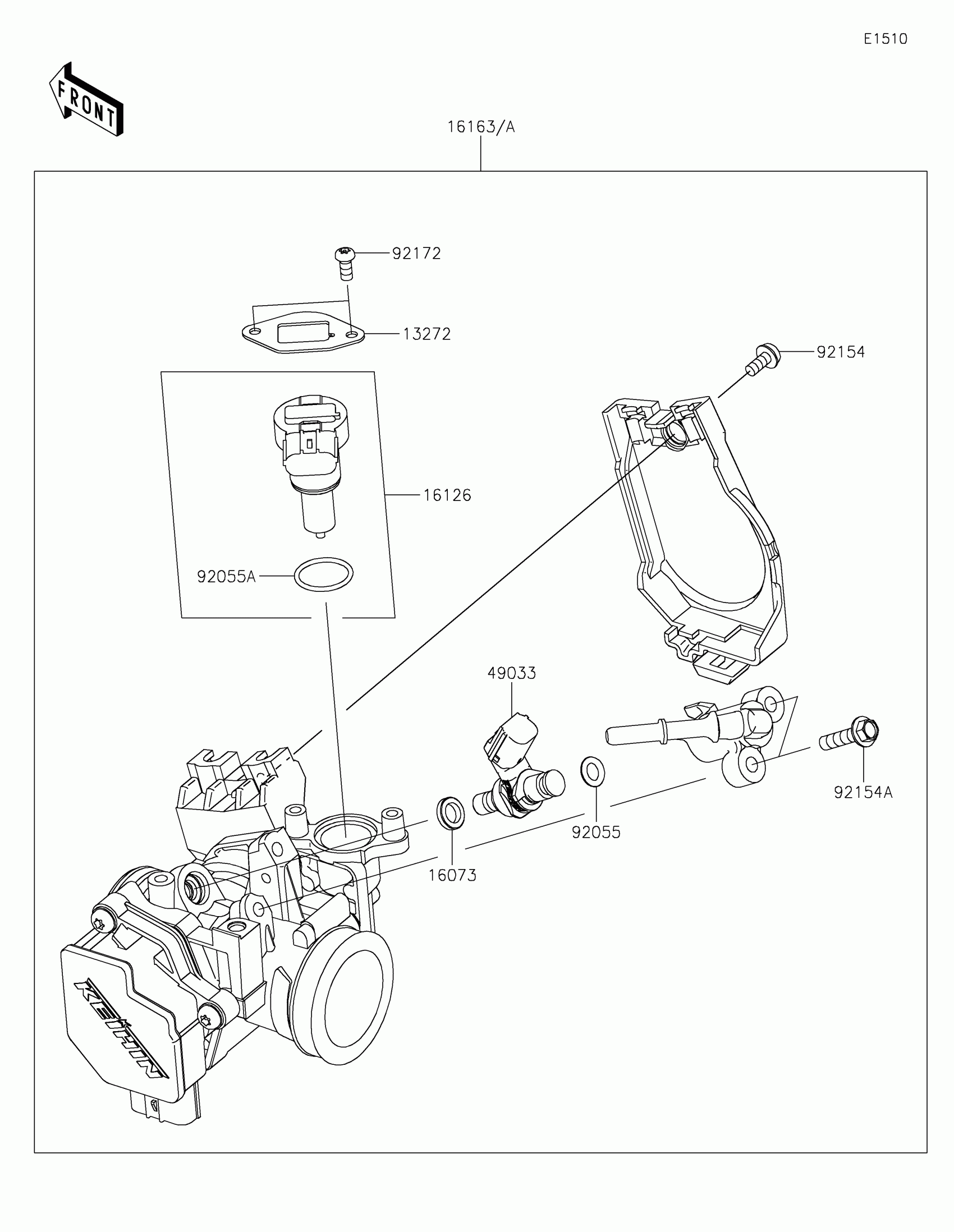

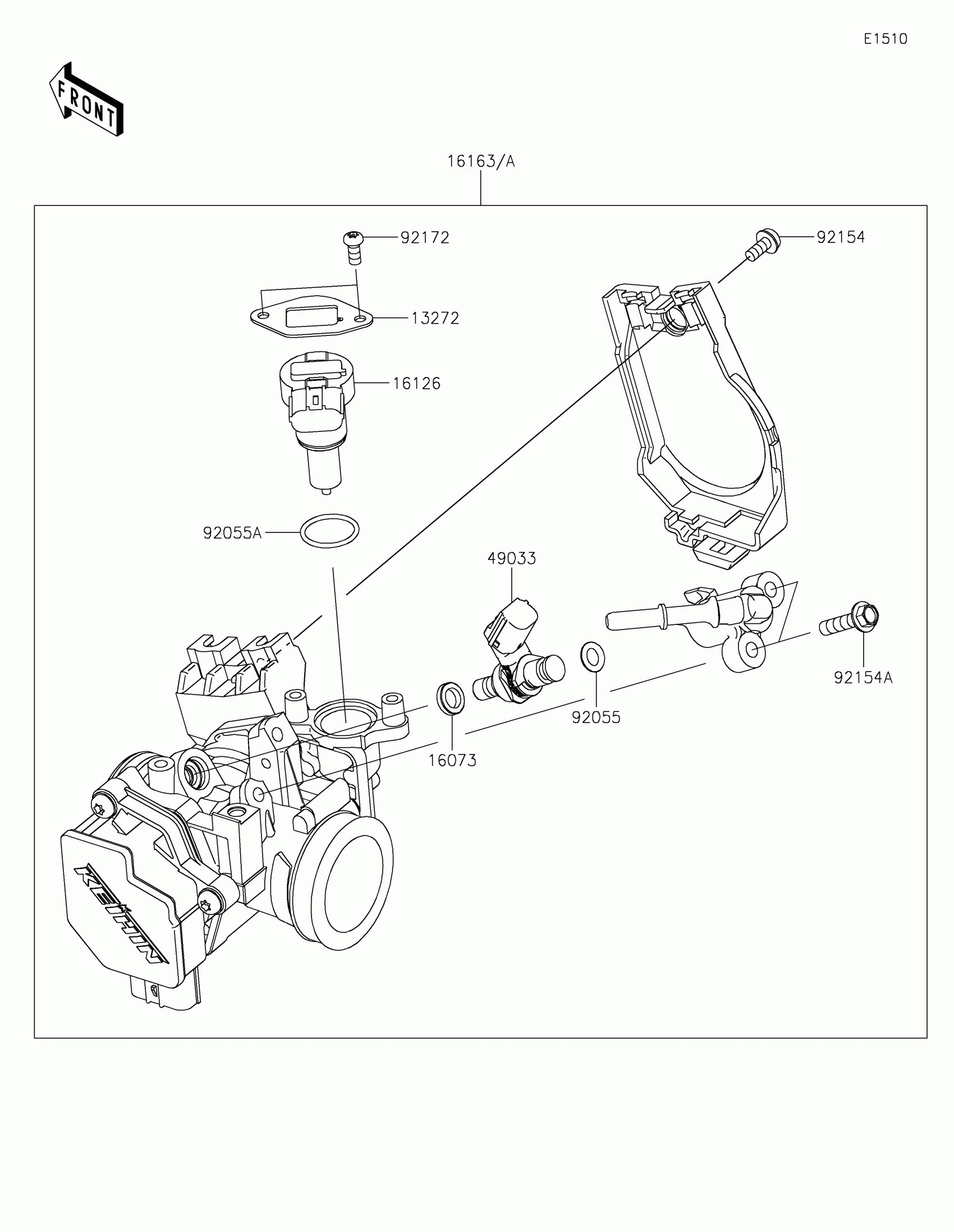

Find the part on the Throttle diagram for your 2022 Kawasaki KLX®230 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLX®230 S Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-1862

1

$21.07

In stock

16073

INSULATOR

16073-0821

1

$19.17

In stock

16126

VALVE,ISC

16126-0729

1

$118.86

In stock

16163

THROTTLE-ASSY

16163-0951

1

$642.87

In stock

16163A

THROTTLE-ASSY

16163-0990

1

$642.87

In stock

49033

NOZZLE-INJECTION

49033-0031

1

$196.73

In stock

92055

RING-O,6.3X2.2

92055-0821

1

$7.58

In stock

92055A

RING-O

92055-0826

1

$8.37

In stock

92154

BOLT

92154-0133

1

$7.15

In stock

92154A

BOLT,FLANGED,5X20

92154-1559

1

$1.69

In stock

92172

SCREW,TORX

92172-0903

1

$3.19

In stock
