2022 Kawasaki KLX®230 S Fuel Injection Diagram

← All diagrams

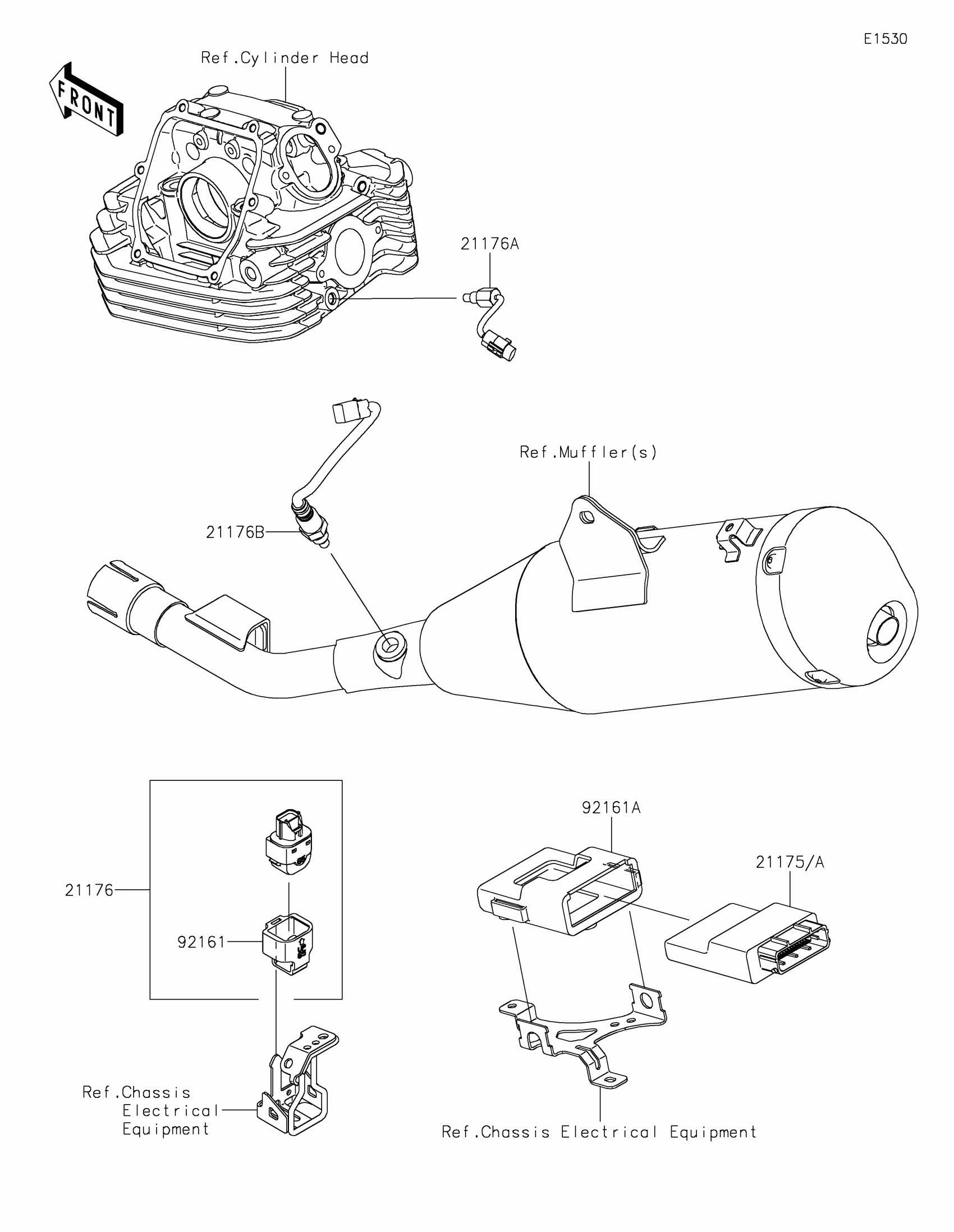

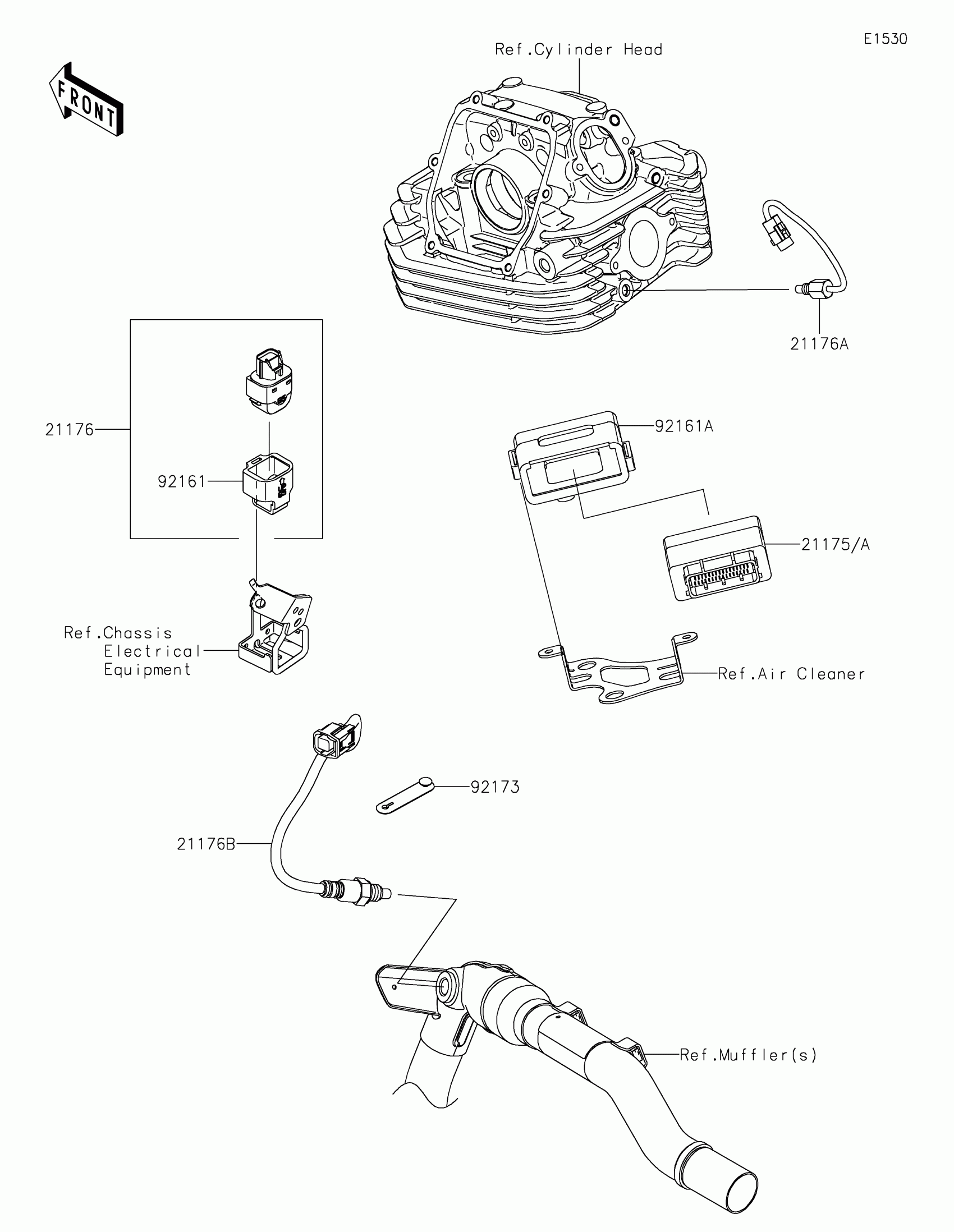

Find the part on the Fuel Injection diagram for your 2022 Kawasaki KLX®230 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLX®230 S Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21175

1

$538.98

In stock

21175A

1

$538.98

In stock

21176

SENSOR,VEHICLE-DOWN

21176-0704

1

$84.36

In stock

21176A

SENSOR,ENGINE TEMP

21176-0898

1

$55.84

In stock

21176B

SENSOR,OXYGEN

21176-0899

1

$228.95

In stock

92161

DAMPER

92161-0951

1

$14.14

In stock

92161A

DAMPER,ECU

92161-2101

1

$8.88

In stock
