Description

Price

11057

BRACKET

11057-2330

$2.80

11057A

BRACKET

11057-2331

$8.74

11057B

BRACKET

11057-2332

$2.80

14093

COVER

14093-0860

$74.33

35019

FLAP

35019-0664

$48.27

35019A

FLAP,RR FENDER

35019-0666

$52.10

35023

FENDER-REAR,L.GREEN

35023-0502-290

$27.48

35023A

FENDER-REAR,B.GRAY

35023-0502-67A

$27.48

35023B

FENDER-REAR

35023-0503

$48.28

92022

WASHER,5.2X16X1.2

92022-263

$1.66

92152

COLLAR

92152-2542

$2.80

92154

BOLT,FLANGED,5X12

92154-1215

Unavailable

92154A

BOLT,FLANGED,6X13

92154-4411

$3.74

92154B

BOLT,FLANGED,6X14

92154-7286

$2.65

92161

DAMPER,15X21X5.5

92161-1472

$3.02

92172

SCREW,CROS,5X10

92172-1255

$0.42

92172A

SCREW,TAPPING,5X16

92172-1545

$0.82

92210

NUT,6MM

92210-0218

$2.55

92210A

NUT,PLATE,5MM

92210-0262

$1.34

92210B

NUT,6MM

92210-0474

$5.54

130

BOLT-FLANGED,6X16

130BA0616

$1.20

130A

BOLT-FLANGED,8X25

130BA0825

$2.95

132

BOLT-FLANGED-SMALL,8X18

132BA0818

$1.11

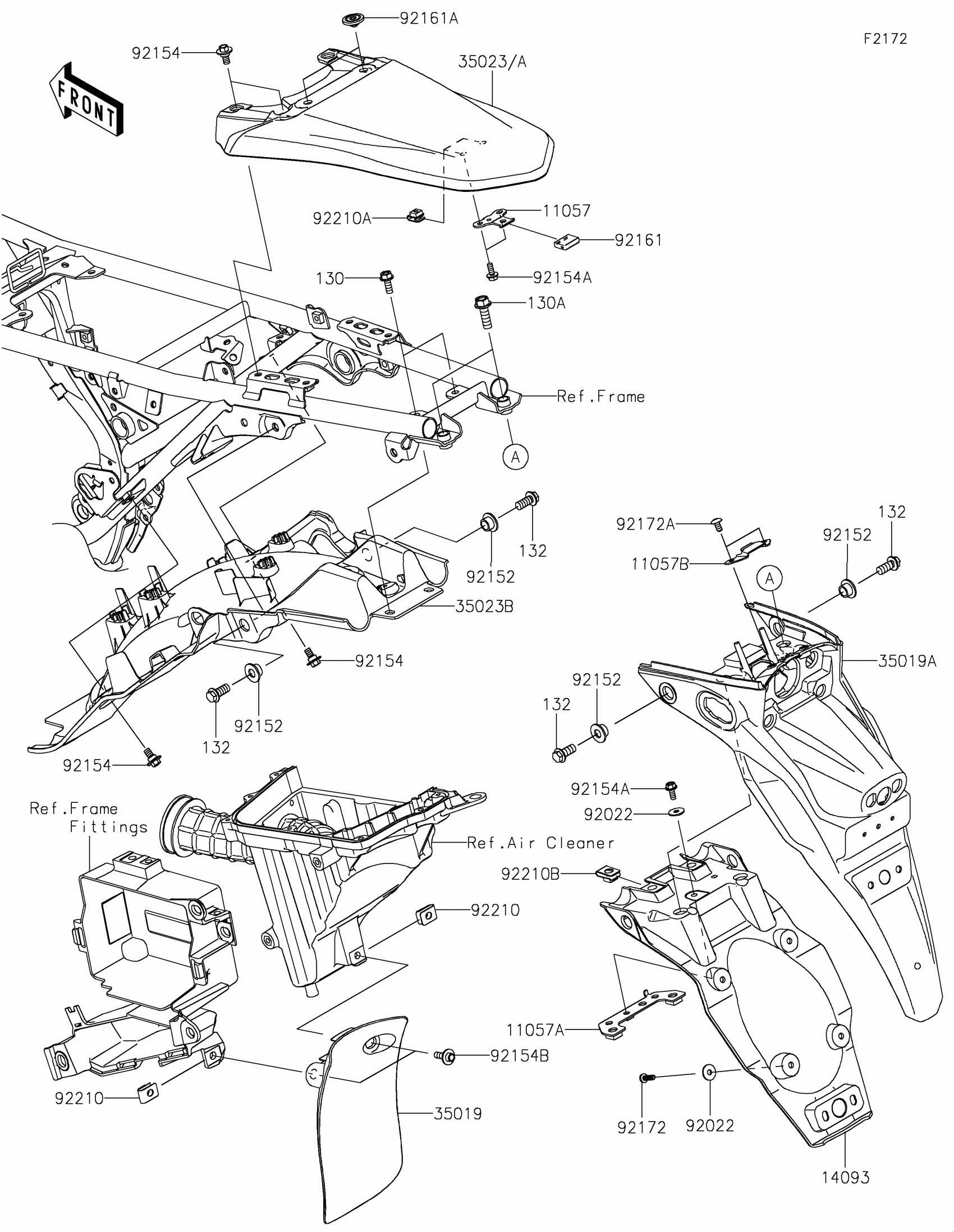

Kawasaki KLX®230 S Rear Fender(s) Diagram

BRACKET

BRACKET

BRACKET

COVER

FLAP

FLAP,RR FENDER

FENDER-REAR,L.GREEN

FENDER-REAR,B.GRAY

FENDER-REAR

WASHER,5.2X16X1.2

COLLAR

BOLT,FLANGED,5X12

BOLT,FLANGED,6X13

BOLT,FLANGED,6X14

DAMPER,15X21X5.5

SCREW,CROS,5X10

SCREW,TAPPING,5X16

NUT,6MM

NUT,PLATE,5MM

NUT,6MM

BOLT-FLANGED,6X16

BOLT-FLANGED,8X25

BOLT-FLANGED-SMALL,8X18
