2022 Kawasaki KLX®230 S Owner's Tools Diagram

← All diagrams

Find the part on the Owner's Tools diagram for your 2022 Kawasaki KLX®230 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

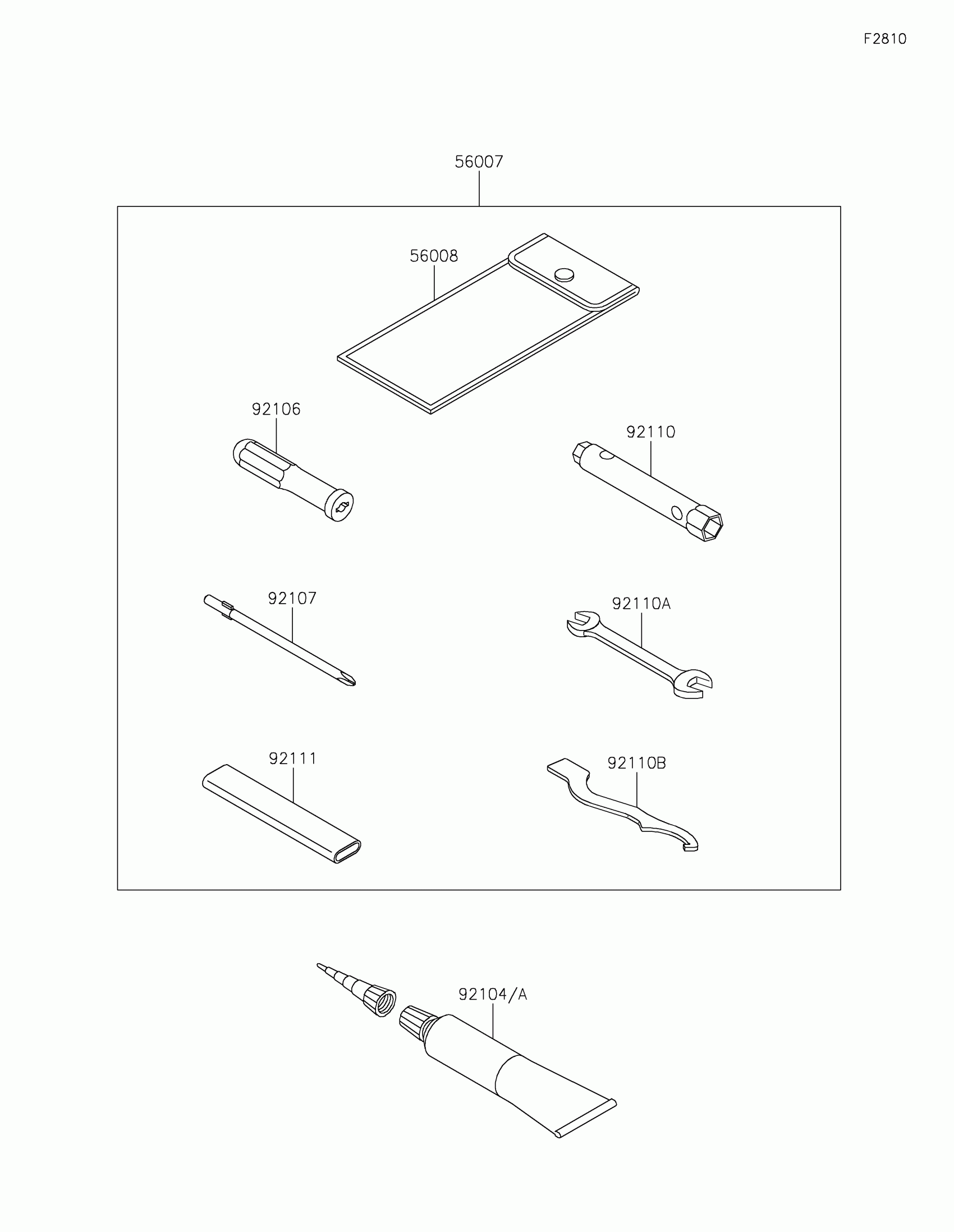

2022 Kawasaki KLX®230 S Owner's Tools Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56007

TOOL-KIT

56007-0190

1

$114.67

In stock

56008

BAG,TOOL

56008-0050

1

$20.54

In stock

92104

1

$87.28

In stock

92104A

1

$100.50

In stock

92106

GRIP-SCREW DRIVER

92106-0005

1

$11.27

In stock

92107

1

$16.54

In stock

92110

1

$9.14

In stock

92110A

1

$8.37

In stock

92110B

1

$30.37

In stock

92111

TOOL-BAR

92111-1057

1

$12.03

In stock
