2022 Kawasaki KLX®230 S Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2022 Kawasaki KLX®230 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

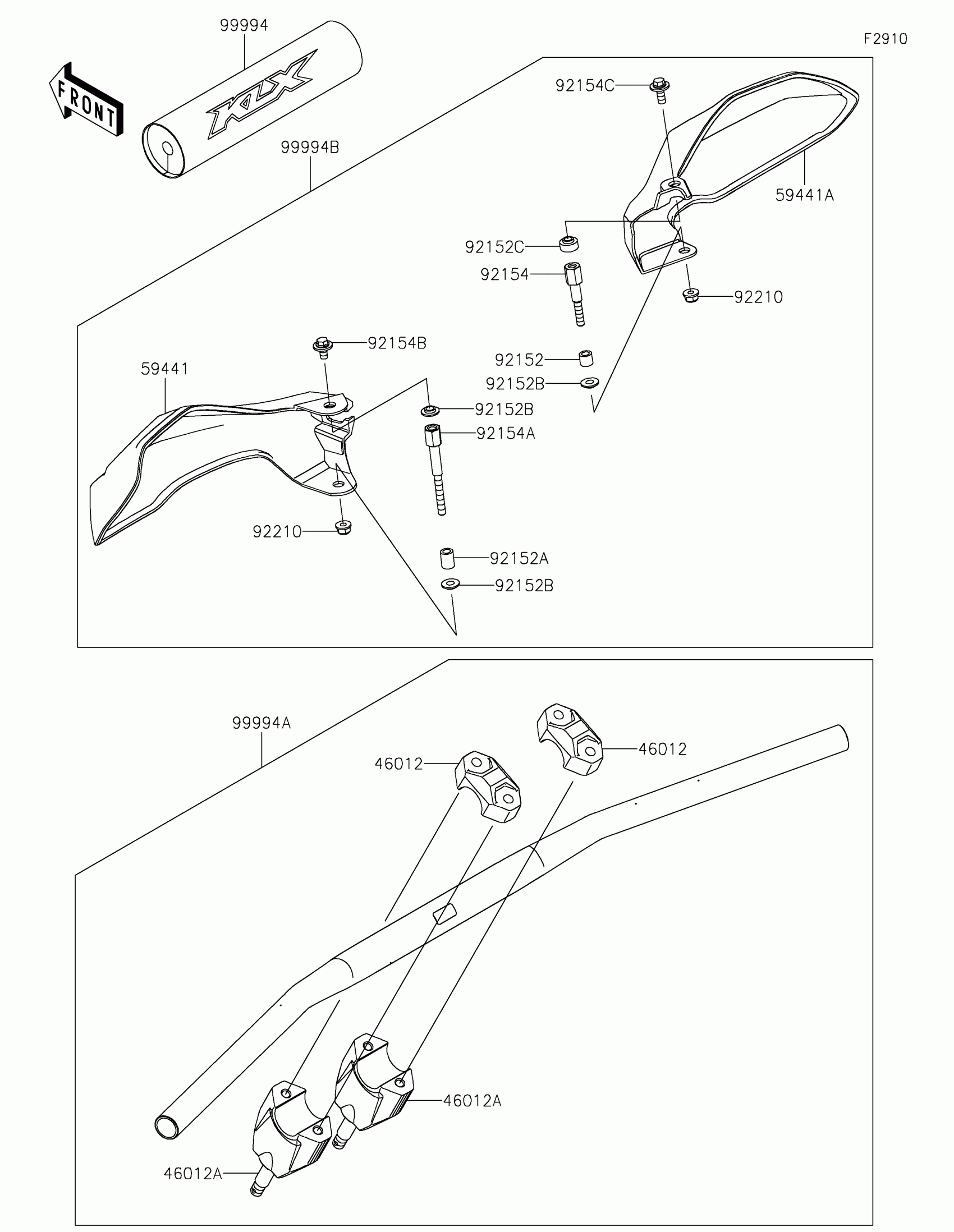

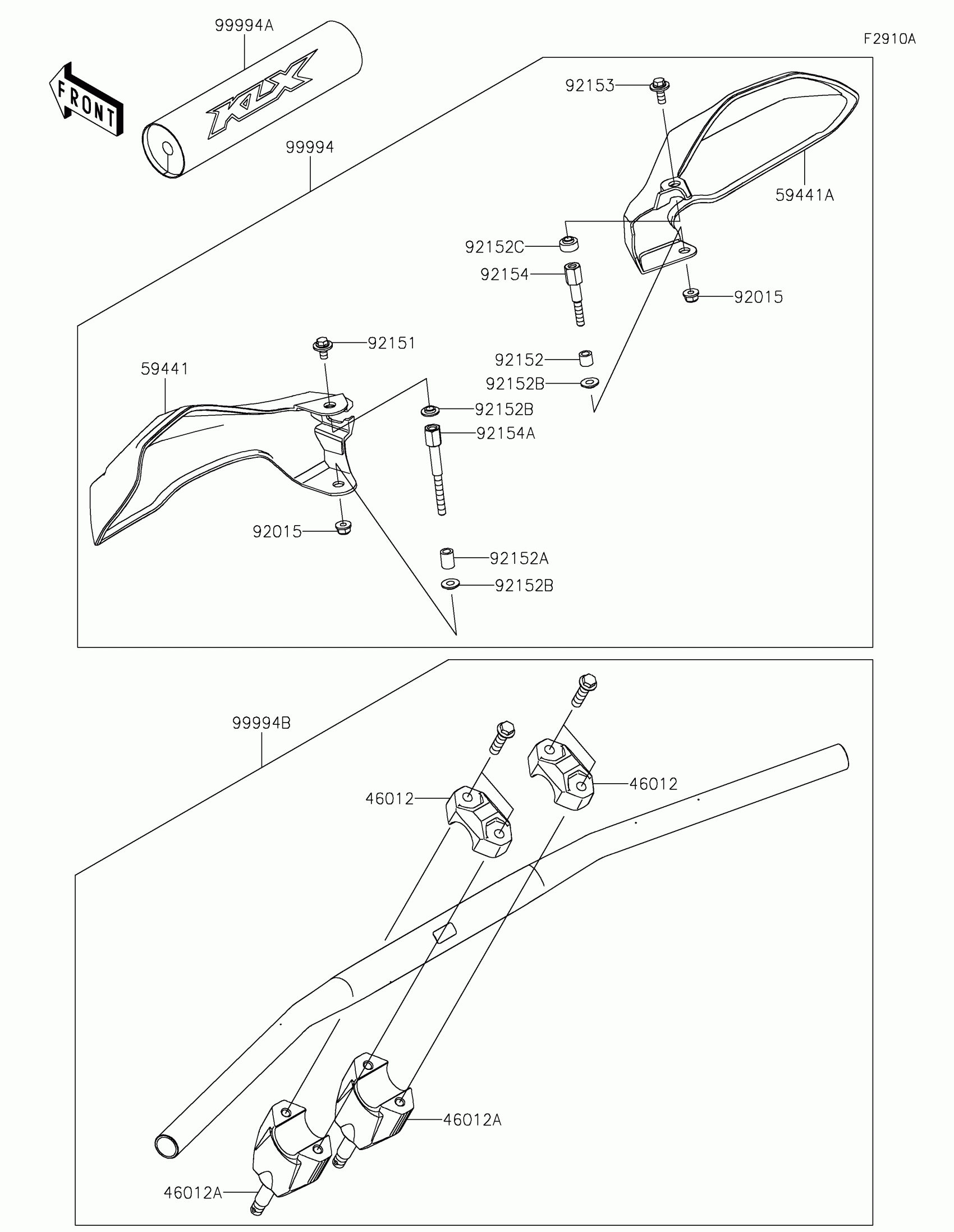

2022 Kawasaki KLX®230 S Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

46012

1

$21.98

In stock

46012A

1

$27.25

In stock

59441

COVER-HANDLE,LH,EBONY

59441-0045-68L

1

$29.90

In stock

59441A

COVER-HANDLE,RH,EBONY

59441-0046-68L

1

$29.90

In stock

92015

1

$3.72

In stock

92151

BOLT,6X12

92151-1985

1

$4.15

In stock

92152

COLLAR,6.5X10.5X9.3

92152-1992

1
Out of stock

92152A

COLLAR,6.5X10.5X14

92152-2302

1
Out of stock

92152B

COLLAR,6.5X15X3.4

92152-2314

1
Out of stock

92152C

COLLAR

92152-2592

1

$4.59

In stock

92153

BOLT,FLANGED,6X16

92153-1059

1
Out of stock

92154

BOLT

92154-1670

1

$17.97

In stock

92154A

BOLT

92154-2359

1

$10.59

In stock

99994

HAND GUARD,EBONY

99994-1248-68L

1

$113.00

In stock

99994A

HANDLE-BAR PAD

99994-1274

1

$50.92

In stock

99994B

1

$252.57

In stock
