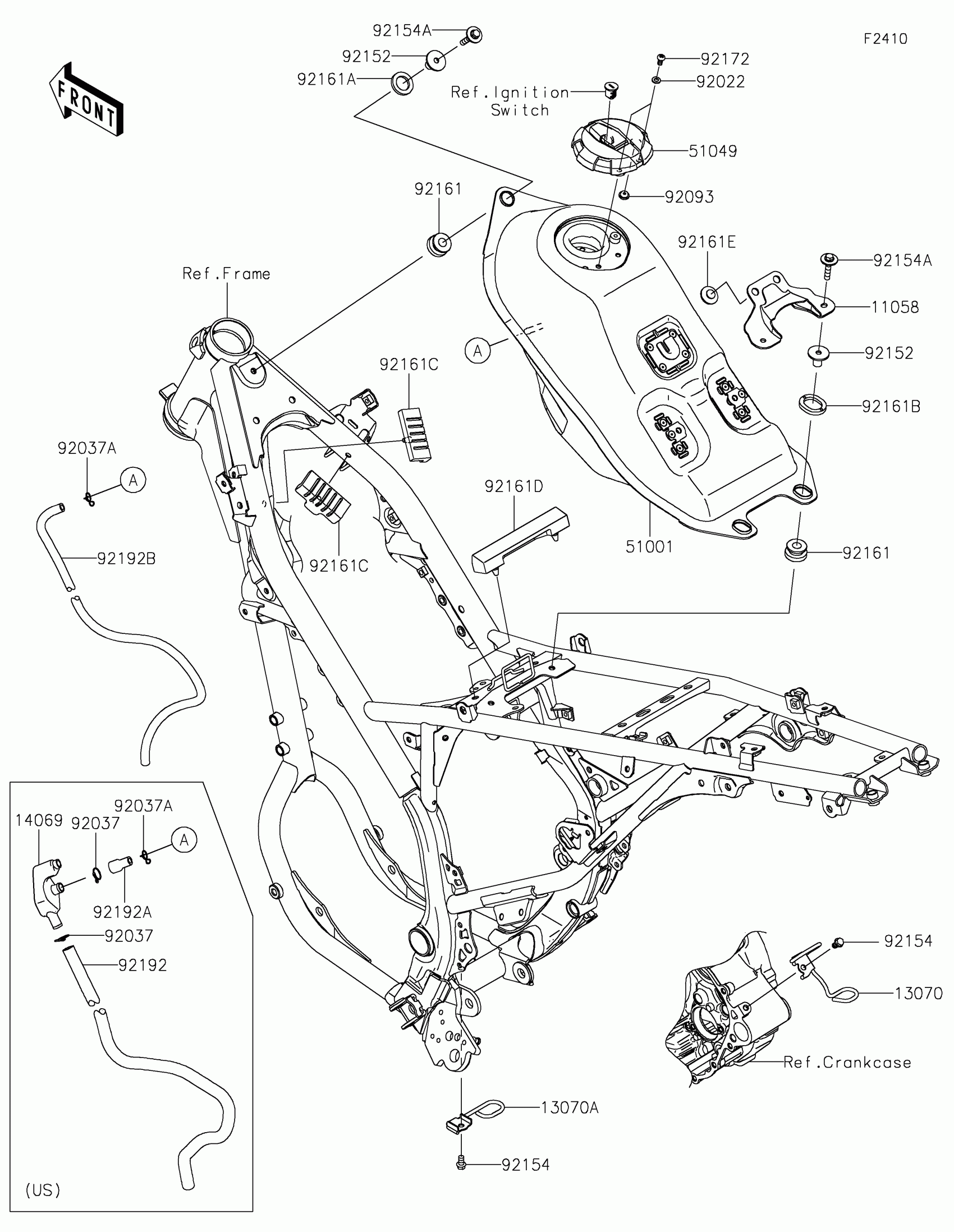

Kawasaki KLX®230 S Fuel Tank Diagram

#

Description
Price

11058

BRACKET,FUEL TANK

11058-1312

$26.21

13070

GUIDE

13070-0909

$6.46

13070A

GUIDE

13070-0912

$4.80

14069

BREATHER,FUEL TANK

14069-0033

$10.19

51001

TANK-COMP-FUEL,F.S.BLACK

51001-0937-25Q

$572.75

51049

CAP-TANK,FUEL

51049-0766

$108.49

92022

WASHER,5.1X10X1.0

92022-1977

$3.65

92037

CLAMP,12.5MM

92037-1271

$2.79

92037A

CLAMP

92037-1712

$5.00

92093

SEAL,RO 2X12X4.8

92093-0722

$4.80

92152

COLLAR,6.8X10X16

92152-2666

$9.47

92154

BOLT,FLANGED,6X10

92154-0459

$7.65

92154A

BOLT,FLANGED,6X30

92154-7273

$4.21

92161

DAMPER,FUEL TANK,FR

92161-1392

$3.35

92161A

DAMPER

92161-2216

$2.10

92161B

DAMPER

92161-2217

$1.37

92161C

DAMPER

92161-2286

$6.52

92161D

DAMPER,FUEL TANK

92161-2537

$14.92

92161E

DAMPER

92161-2547

$0.85

92172

SCREW,5X10

92172-0496

$4.20

92192

TUBE,10X14X870

92192-1964

$19.58

92192A

TUBE

92192-2721

$3.68

92192B

TUBE,DRAIN

92192-2722

$26.00
