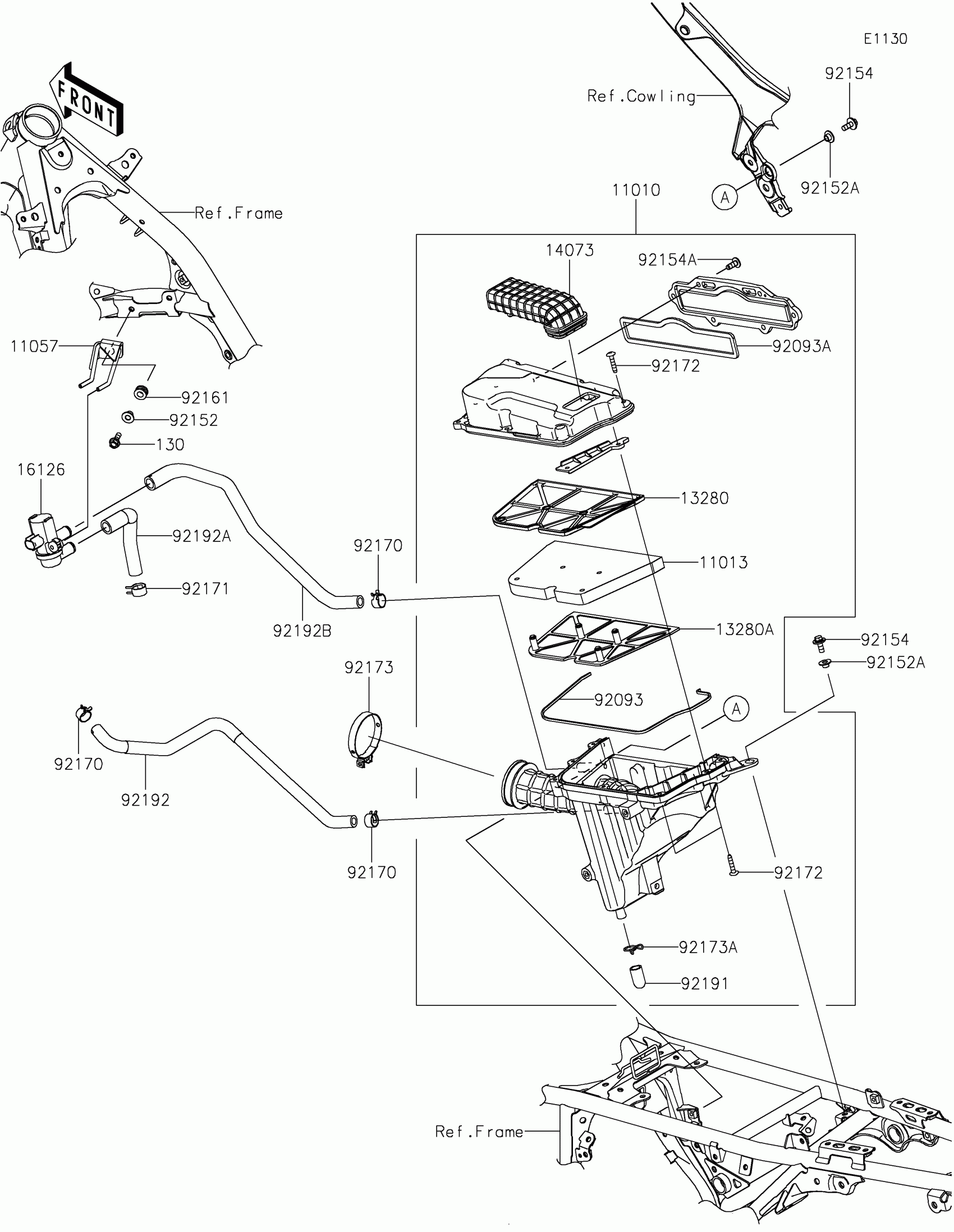

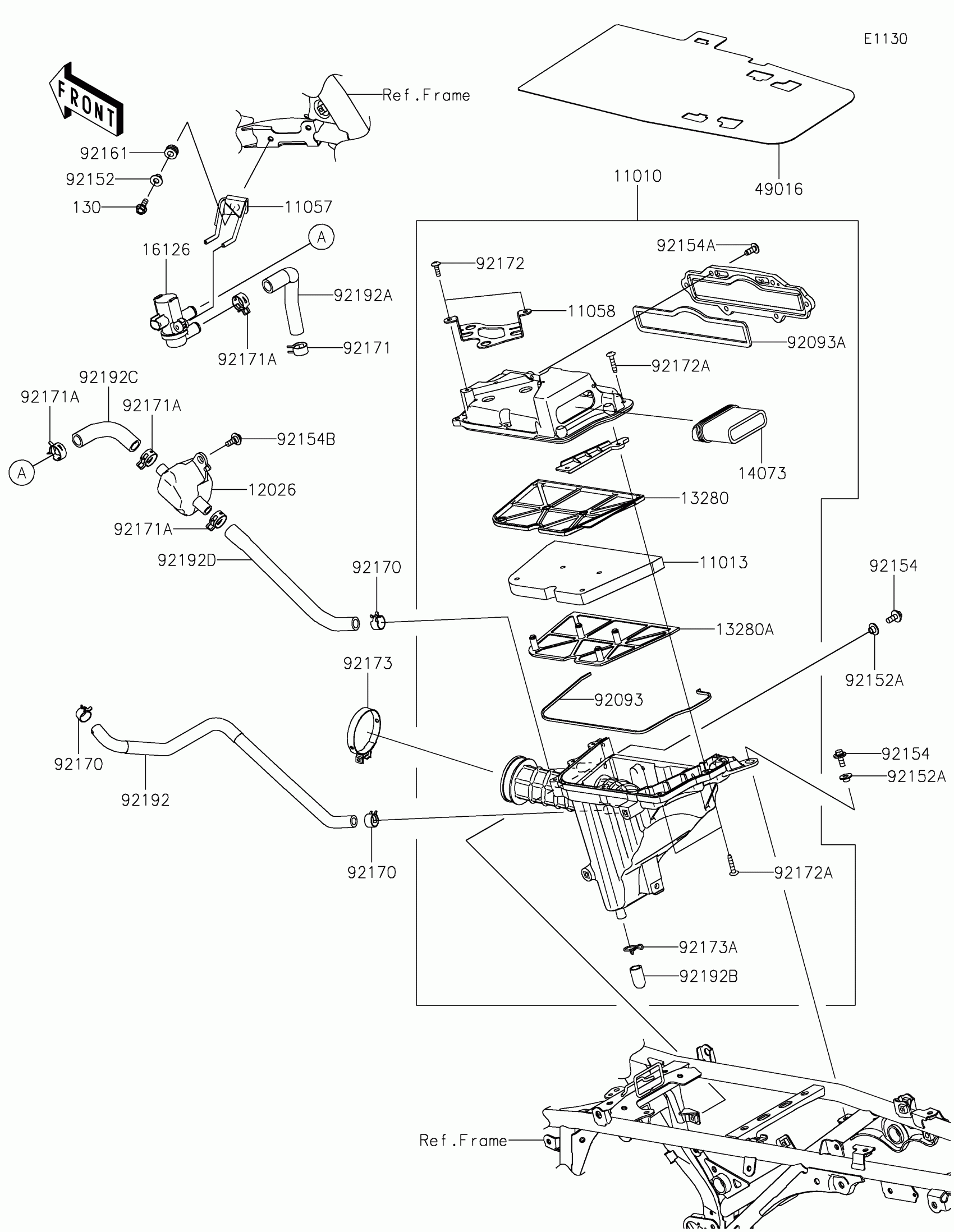

Kawasaki KLX®230 S Air Cleaner Diagram
#
Description
Price
11010
FILTER-ASSY-AIR
11010-1845
$218.55
11013
ELEMENT-AIR FILTER
11013-0790
$17.78
11057
BRACKET,ASWV
11057-2432
$13.83
11058
BRACKET,ECU
11058-1337
$35.80
12026
CHAMBER
12026-0026
$43.99
13280
HOLDER,UPP
13280-0945
$3.51
13280A
HOLDER,LWR
13280-0946
$13.22
14073
DUCT,IN
14073-1931
$59.90
16126
VALVE,AIR SWITCH
16126-0750
$84.63
49016
COVER-SEAL
49016-0729
$25.39
92093
SEAL
92093-0727
$5.27
92093A
SEAL
92093-0728
$33.57
92152
COLLAR,6.3X8.3X9.2
92152-1725
$5.98
92152A
COLLAR,6.3X8.3X6.2
92152-2586
$7.51
92154
BOLT,FLANGED-SMALL,6X16
92154-1183
$1.48
92154A
BOLT,6X16
92154-3970
$2.58
92154B
BOLT,FLANGED,6X12
92154-7289
$5.17
92161
DAMPER
92161-0031
$0.67
92170
CLAMP,BRAKE HOSE
92170-1434
$12.35
92171
CLAMP
92171-0533
$3.39
92171A
CLAMP,18.8MM
92171-2056
$1.46
92172
SCREW,5X16
92172-0908
$2.51
92172A
SCREW
92172-1291
$1.37
92173
CLAMP
92173-2191
$14.34
92173A
CLAMP,14MM
92173-2474
$4.88
92192
TUBE,BLOW-BY
92192-1929
$24.97
92192A
TUBE,ASWV-HEAD
92192-1930
$13.22
92192B
TUBE
92192-2582
$7.56
92192C
TUBE,CHAMBER-ASWV
92192-2723
$8.18
92192D
TUBE,A/C-CHAMBER
92192-2724
$13.42
130
BOLT-FLANGED,6X18
130BA0618
$1.54
