2025 Kawasaki KLX®230 S ABS Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 2025 Kawasaki KLX®230 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

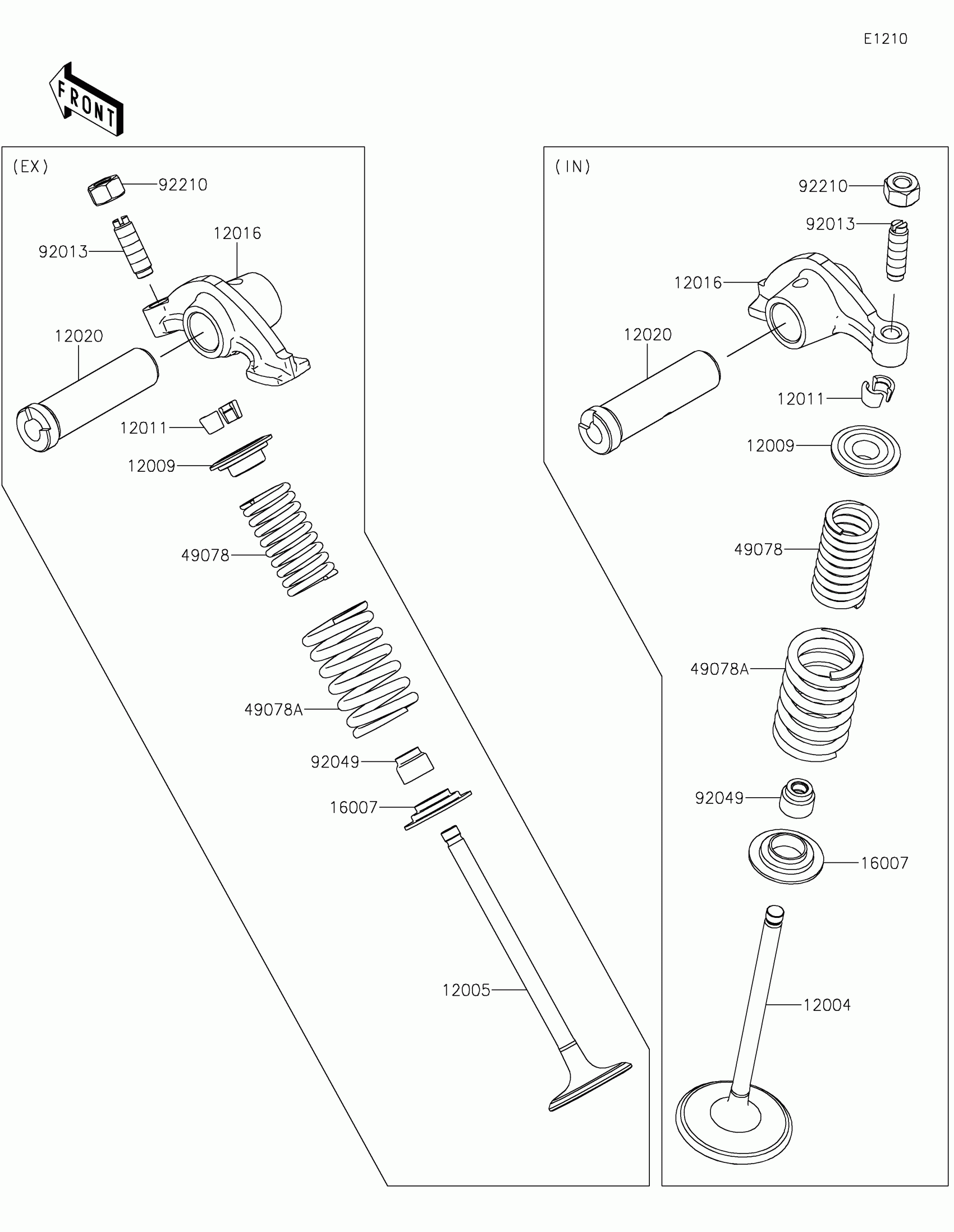

2025 Kawasaki KLX®230 S ABS Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-0780

1
Out of stock

12005

VALVE-EXHAUST

12005-0803

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-0721

1
Out of stock

12011

COLLET

12011-1003

1
Out of stock

12016

ARM-ROCKER

12016-0728

1
Out of stock

12020

SHAFT-ROCKER

12020-0030

1
Out of stock

16007

SEAT-SPRING

16007-0787

1
Out of stock

49078

SPRING-ENGINE VALVE

49078-0756

1
Out of stock

49078A

SPRING-ENGINE VALVE

49078-0757

1
Out of stock

92013

SCREW,6MM

92013-009

1
Out of stock

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

1
Out of stock

92210

NUT,6MM

92210-1490

1
Out of stock
