2025 Kawasaki KLX®230 S ABS Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2025 Kawasaki KLX®230 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

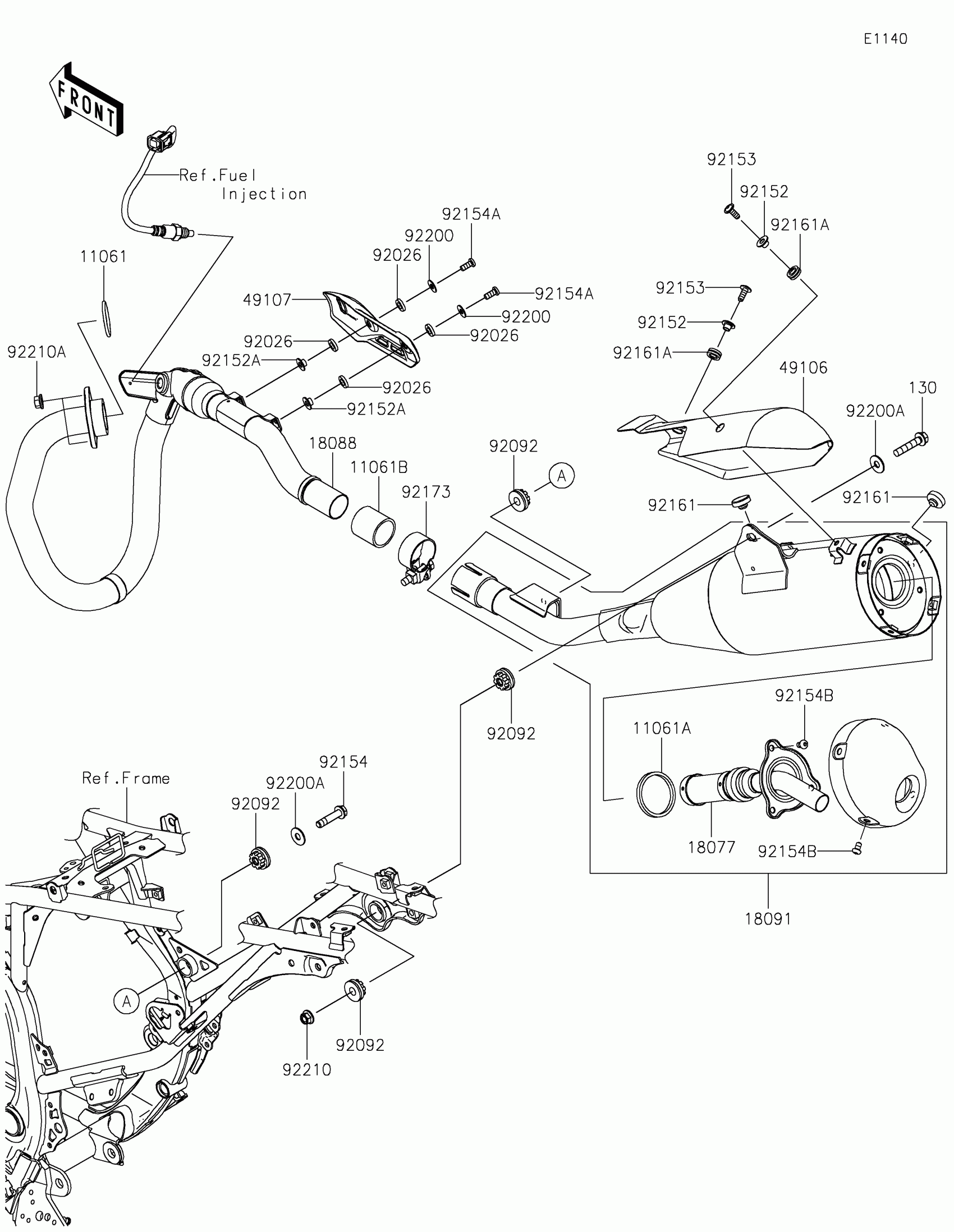

2025 Kawasaki KLX®230 S ABS Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,EX PIPE

11061-0027

1
Out of stock

11061A

GASKET,J/P-SILENCER

11061-0174

1
Out of stock

11061B

GASKET,EXHAUST PIPE CONNECTING

11061-1407

1
Out of stock

18077

ARRESTER-SPARK

18077-0046

1
Out of stock

18088

PIPE-EXHAUST

18088-1746

1
Out of stock

18091

BODY-COMP-MUFFLER

18091-1305

1
Out of stock

49106

COVER-MUFFLER

49106-0888

1
Out of stock

49107

COVER-EXHAUST PIPE

49107-0881

1
Out of stock

92026

SPACER,8.7X15.2X3

92026-0868

1
Out of stock

92092

BUSHING-RUBBER

92092-0018

1
Out of stock

92152

COLLAR,6.3X8.3X16

92152-1602

1
Out of stock

92152A

COLLAR,6.3X8.3X6.2

92152-2586

1
Out of stock

92153

BOLT,SOCKET,6X16

92153-0817

1
Out of stock

92154

BOLT,FLANGED,8X36

92154-1301

1
Out of stock

92154A

BOLT,6X14

92154-3955

1
Out of stock

92154B

BOLT,SOCKET,6X10

92154-4336

1
Out of stock

92161

DAMPER,MUFFLER

92161-1284

1
Out of stock

92161A

DAMPER

92161-1475

1

$4.23

In stock

92173

CLAMP

92173-2189

1
Out of stock

92200

WASHER,6.5X16X1

92200-1974

1
Out of stock

92200A

WASHER,8.5X22X1.5

92200-1975

1
Out of stock

92210

NUT,LOCK,FLANGED,8MM

92210-0140

1
Out of stock

92210A

NUT,8MM

92210-2207

1
Out of stock

130

BOLT-FLANGED,8X40

130CA0840

1

$1.29

In stock
