2025 Kawasaki KLX®230 S ABS Transmission Diagram

← All diagrams

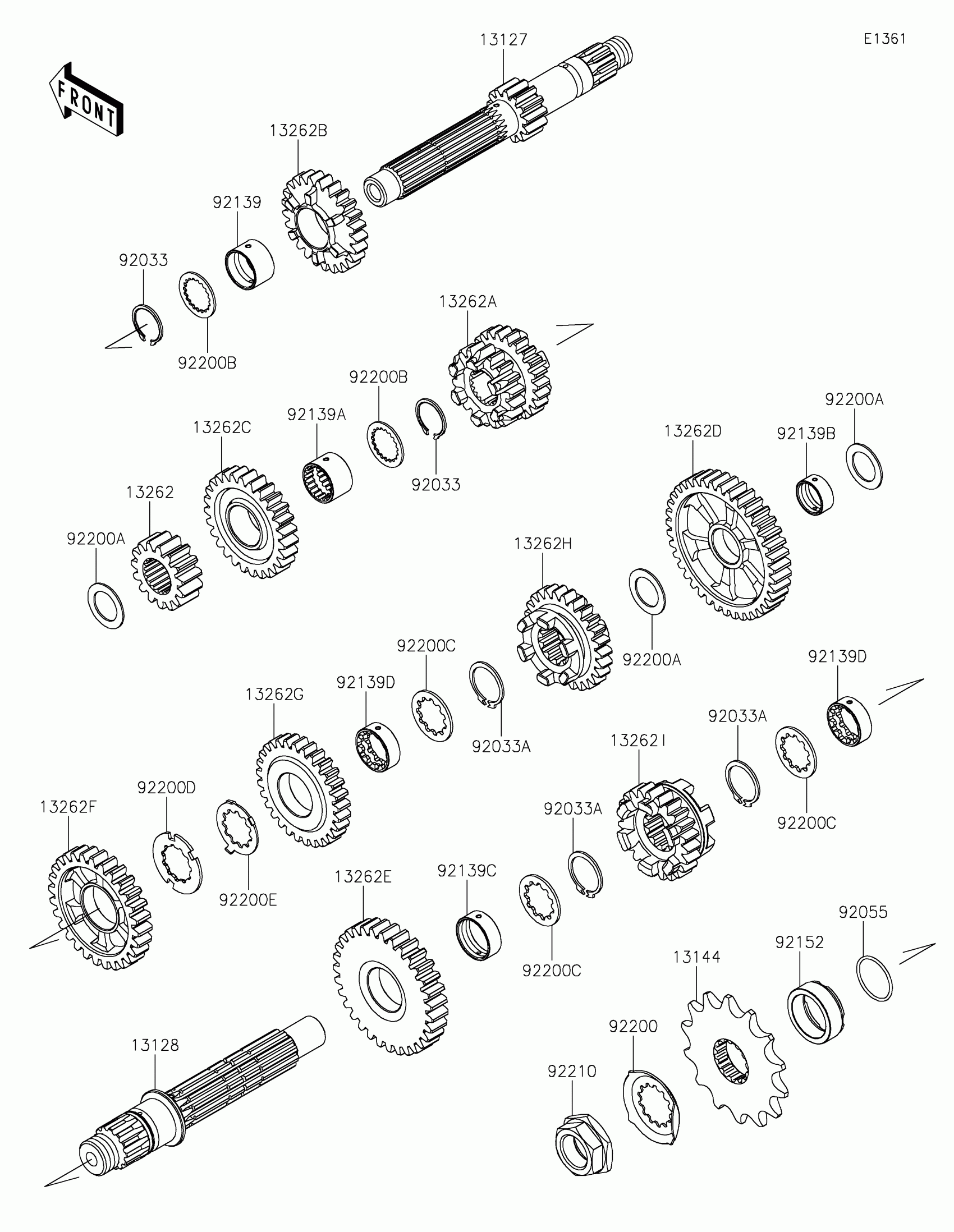

Find the part on the Transmission diagram for your 2025 Kawasaki KLX®230 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX®230 S ABS Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13127

SHAFT-TRANSMISSION INPUT

13127-0698

1
Out of stock

13128

SHAFT-TRANSMISSION OUTPUT

13128-0712

1
Out of stock

13144

SPROCKET-OUTPUT,14T

13144-0599

1
Out of stock

13262

GEAR,INPUT 2ND,15T

13262-1368

1
Out of stock

13262A

GEAR,INPUT 3RD&4TH,18T&23T

13262-1369

1
Out of stock

13262B

GEAR,INPUT 5TH,25T

13262-1370

1
Out of stock

13262C

GEAR,INPUT 6TH,27T

13262-1371

1
Out of stock

13262D

GEAR,OUTPUT LOW,39T

13262-1372

1
Out of stock

13262E

GEAR,OUTPUT 2ND,31T

13262-1373

1
Out of stock

13262F

GEAR,OUTPUT 3RD,28T

13262-1374

1
Out of stock

13262G

GEAR,OUTPUT 4TH,29T

13262-1375

1
Out of stock

13262H

GEAR,OUTPUT 5TH,26T

13262-1376

1
Out of stock

13262I

GEAR,OUTPUT 6TH,23T

13262-1377

1
Out of stock

92033

RING-SNAP

92033-0798

1
Out of stock

92033A

RING-SNAP

92033-0799

1
Out of stock

92055

RING-O,21.5X1.5

92055-1787

1
Out of stock

92139

BUSHING,20X23X14

92139-0917

1
Out of stock

92139A

BUSHING,17.9X23X14.5

92139-0918

1
Out of stock

92139B

BUSHING,17X20X8.5

92139-0919

1
Out of stock

92139C

BUSHING,22X25X8.5

92139-0920

1
Out of stock

92139D

BUSHING,18.7X25X8.6

92139-0921

1
Out of stock

92152

COLLAR

92152-1350

1
Out of stock

92200

WASHER

92200-1720

1
Out of stock

92200A

WASHER,17.2X26X1

92200-2223

1
Out of stock

92200B

WASHER,20X26X1.2

92200-2224

1
Out of stock

92200C

WASHER,22.3X29X1.5

92200-2226

1
Out of stock

92200D

WASHER

92200-2227

1
Out of stock

92200E

WASHER

92200-2228

1
Out of stock

92210

NUT,20MM

92210-0850

1
Out of stock
