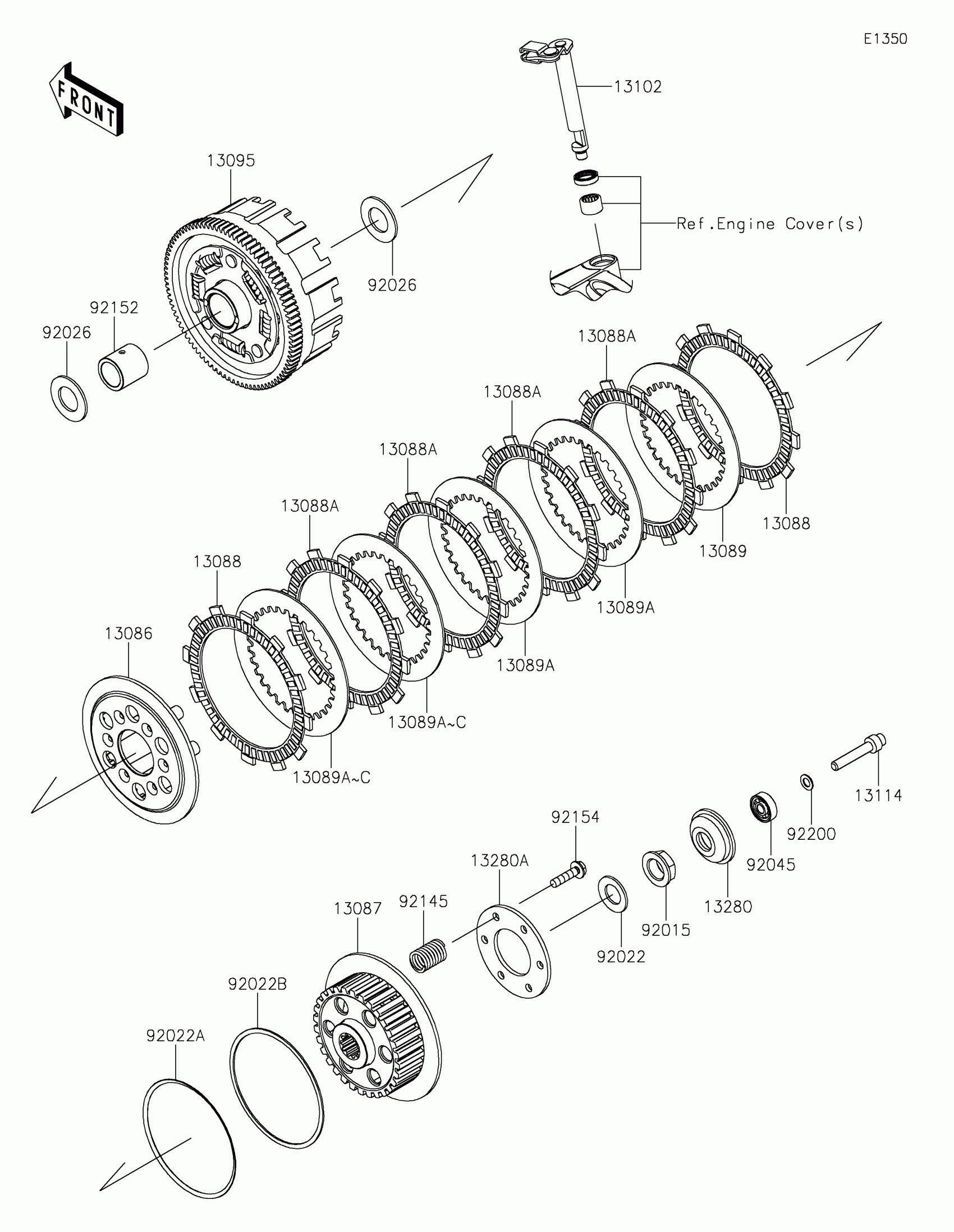

Find the part on the Clutch diagram for your 2025 Kawasaki KLX®230 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX®230 S ABS Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13086

WHEEL-CLUTCH

13086-0008

1
Out of stock

13087

HUB-CLUTCH

13087-0588

1
Out of stock

13088

PLATE-FRICTION

13088-0562

1
Out of stock

13088A

PLATE-FRICTION

13088-0603

1
Out of stock

13089

PLATE-CLUTCH

13089-1085

1
Out of stock

13089A

PLATE-CLUTCH,T=1.6

13089-1094

1
Out of stock

13089B

PLATE-CLUTCH,T=2.0

13089-1116

—
Out of stock

13089C

PLATE-CLUTCH,T=1.2

13089-1117

—
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-0595

1
Out of stock

13102

RELEASE-COMP-CLUTCH

13102-0084

1
Out of stock

13114

PUSHER-CLUTCH

13114-0001

1
Out of stock

13280

1

$13.39

In stock

13280A

HOLDER,CLUTCH SPRING

13280-0936

1
Out of stock

92015

NUT,16MM

92015-1581

1
Out of stock

92022

WASHER,16.3X29X1.75

92022-1356

1
Out of stock

92022A

WASHER,JUDDER SPRING

92022-1974

1
Out of stock

92022B

WASHER,JUDDER SPRING SEAT

92022-1993

1
Out of stock

92026

SPACER,20.3X36.6X2

92026-0725

1
Out of stock

92045

BEARING-BALL,627UMC3 J

92045-0915

1
Out of stock

92145

SPRING

92145-1846

1
Out of stock

92152

COLLAR,20X26.8X26.7

92152-2550

1
Out of stock

92154

BOLT,6X25

92154-3785

1
Out of stock

92200

WASHER,7X12.5X0.8

92200-0909

1
Out of stock
