2025 Kawasaki KLX®230 S ABS Starter Motor Diagram

← All diagrams

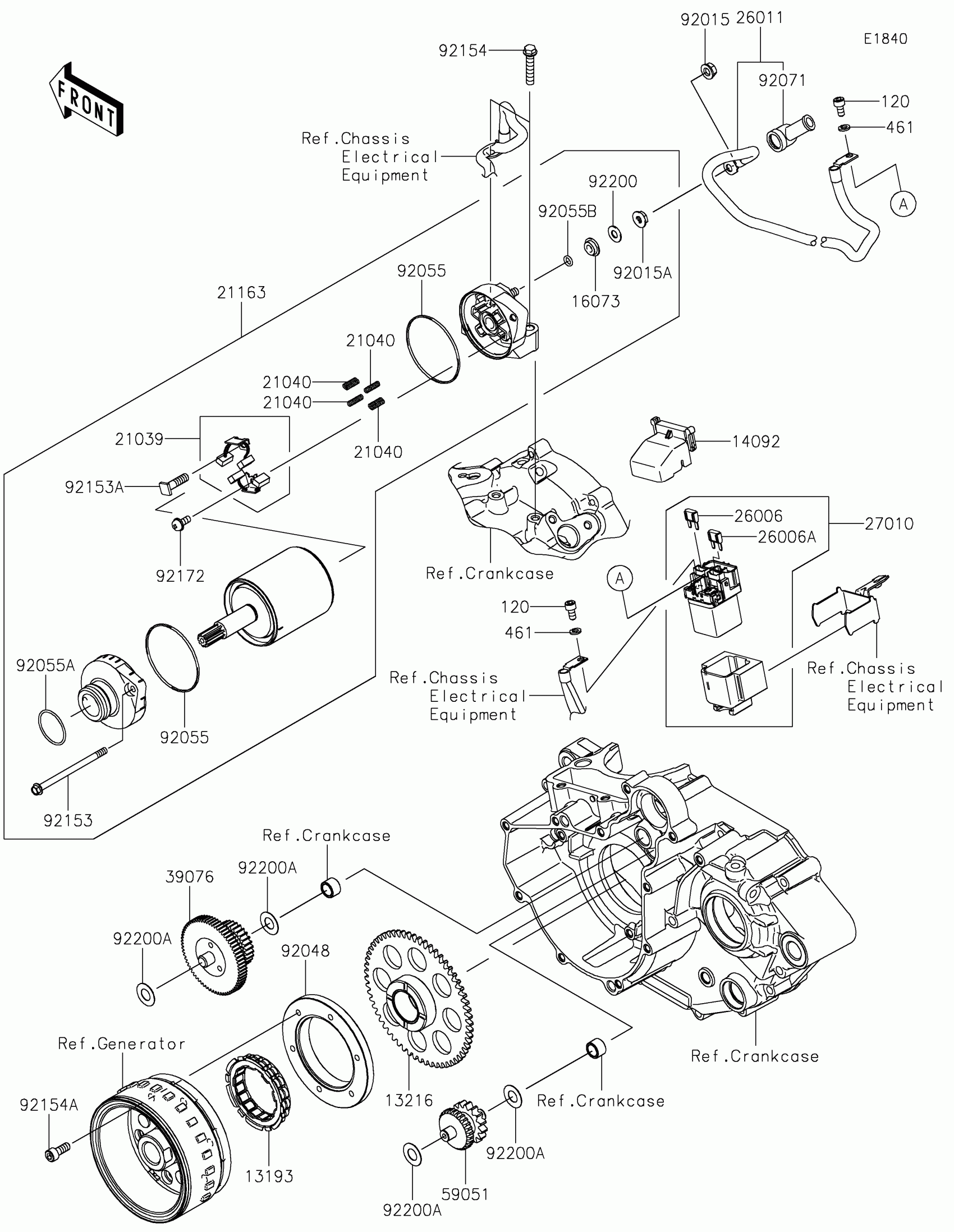

Find the part on the Starter Motor diagram for your 2025 Kawasaki KLX®230 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX®230 S ABS Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13193

CLUTCH-ASSY-ONEWAY

13193-0014

1
Out of stock

13216

GEAR-COMP,ONEWAY CLUTCH

13216-0900

1
Out of stock

14092

COVER

14092-0109

1
Out of stock

16073

INSULATOR

16073-0053

1
Out of stock

21039

BRUSH,CARBON

21039-0004

1
Out of stock

21040

SPRING-BRUSH

21040-0003

1
Out of stock

21163

STARTER-ELECTRIC

21163-0783

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,30A,GREEN

26006-1080

1
Out of stock

26011

WIRE-LEAD,STARTER

26011-2500

1
Out of stock

27010

SWITCH

27010-0773

1
Out of stock

39076

LIMITER,STARTER IDLE GEAR

39076-0562

1
Out of stock

59051

GEAR-SPUR,IDLER

59051-0824

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92048

RACE,ONEWAY CLUTCH

92048-0030

1
Out of stock

92055

RING-O

92055-0136

1
Out of stock

92055A

RING-O

92055-1276

1
Out of stock

92055B

RING-O,4.5X2.0

92055-1370

1
Out of stock

92071

GROMMET

92071-0782

1
Out of stock

92153

BOLT

92153-1850

1
Out of stock

92153A

BOLT

92153-1866

1
Out of stock

92154

BOLT,FLANGED,6X30

92154-1773

1
Out of stock

92154A

BOLT,SOCKET,6X12

92154-7472

1
Out of stock

92172

SCREW

92172-0334

1
Out of stock

92200

WASHER

92200-0386

1
Out of stock

92200A

WASHER,10.2X20X0.5

92200-1976

1
Out of stock

120

BOLT-SOCKET,5X10

120CB0510

1
Out of stock

461

WASHER-SPRING,5MM

461DA0500

1
Out of stock
