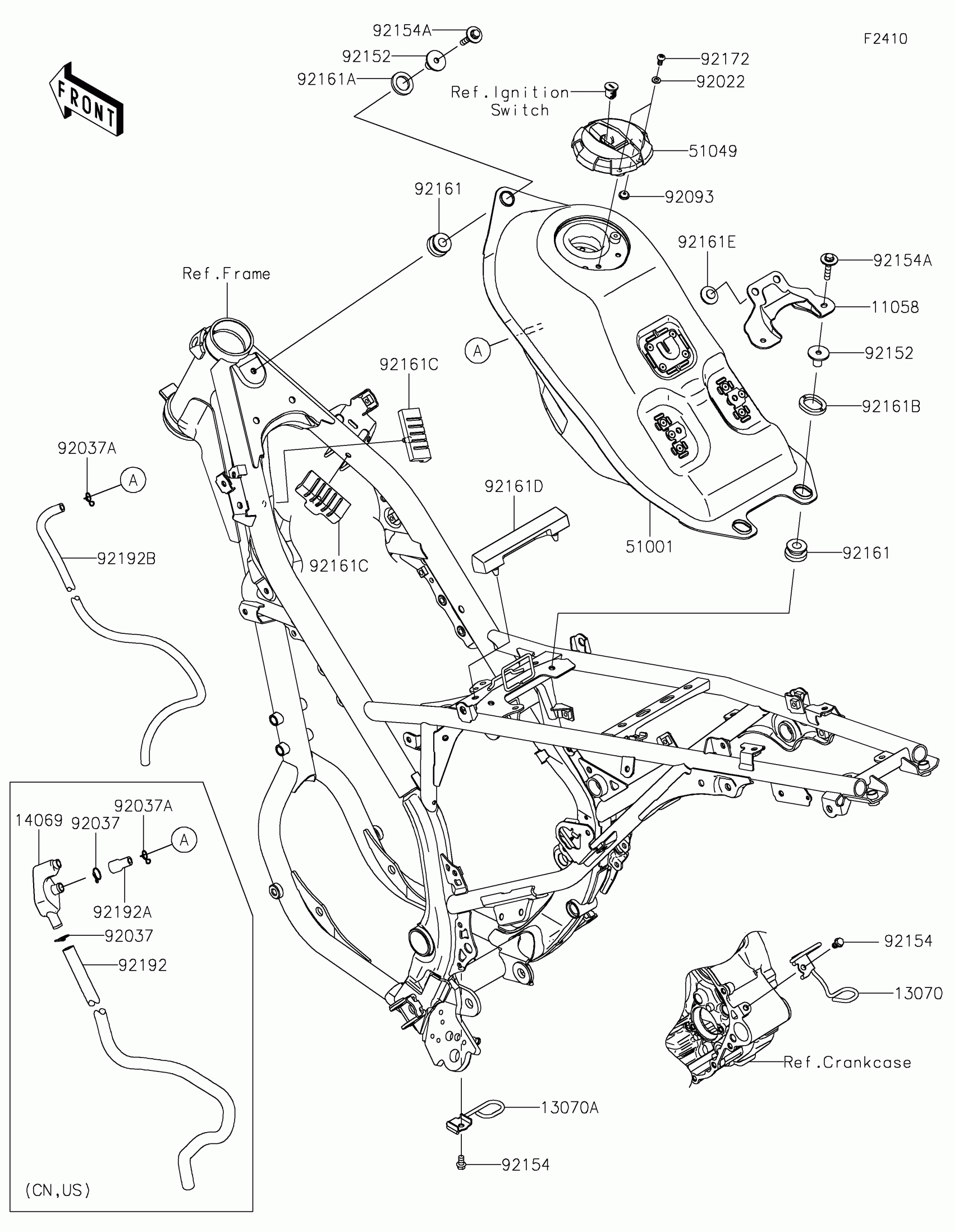

Kawasaki KLX®230 S ABS Fuel Tank Diagram

#

Description
Price

11058

BRACKET,FUEL TANK

11058-1312

$24.61

13070

GUIDE

13070-0909

$5.61

13070A

GUIDE

13070-0912

$4.25

14069

BREATHER,FUEL TANK

14069-0033

$9.85

51001

TANK-COMP-FUEL,F.S.BLACK

51001-0937-25Q

$585.73

51049

CAP-TANK,FUEL

51049-0766

$110.78

92022

WASHER,5.1X10X1.0

92022-1977

$2.76

92037

CLAMP,12.5MM

92037-1271

$1.73

92037A

CLAMP

92037-1712

$3.81

92093

SEAL,RO 2X12X4.8

92093-0722

$4.25

92152

COLLAR,6.8X10X16

92152-2666

$9.19

92154

BOLT,FLANGED,6X10

92154-0459

$7.54

92154A

BOLT,FLANGED,6X30

92154-7273

$3.76

92161

DAMPER,FUEL TANK,FR

92161-1392

$2.68

92161A

DAMPER

92161-2216

$1.78

92161B

DAMPER

92161-2217

$1.22

92161C

DAMPER

92161-2286

$5.66

92161D

DAMPER,FUEL TANK

92161-2537

$14.15

92161E

DAMPER

92161-2547

$0.85

92172

SCREW,5X10

92172-0496

$3.76

92192

TUBE,10X14X870

92192-1964

$14.77

92192A

TUBE

92192-2721

$3.24

92192B

TUBE,DRAIN

92192-2722

$24.42
