2025 Kawasaki KLX®230 S ABS Fuel Injection Diagram

← All diagrams

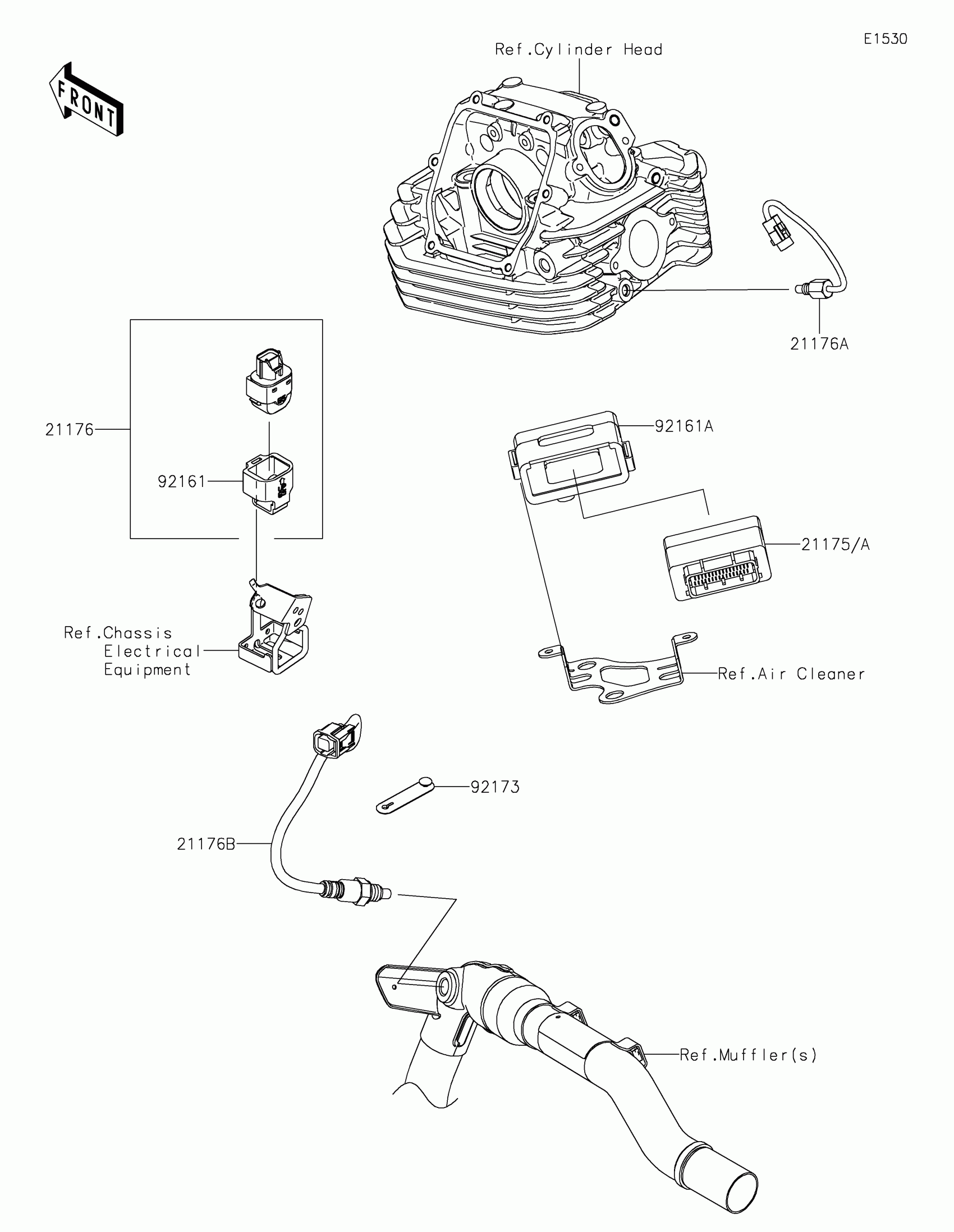

Find the part on the Fuel Injection diagram for your 2025 Kawasaki KLX®230 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX®230 S ABS Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21175

CONTROL UNIT-ELECTRONIC

21175-2078

1
Out of stock

21175A

CONTROL UNIT-ELECTRONIC

21175-2079

1
Out of stock

21176

SENSOR,VEHICLE-DOWN

21176-0704

1
Out of stock

21176A

SENSOR,ENGINE TEMP

21176-0898

1
Out of stock

21176B

SENSOR,OXYGEN

21176-1231

1
Out of stock

92161

DAMPER

92161-0951

1
Out of stock

92161A

DAMPER,ECU

92161-2101

1
Out of stock

92173

CLAMP

92173-2198

1
Out of stock
