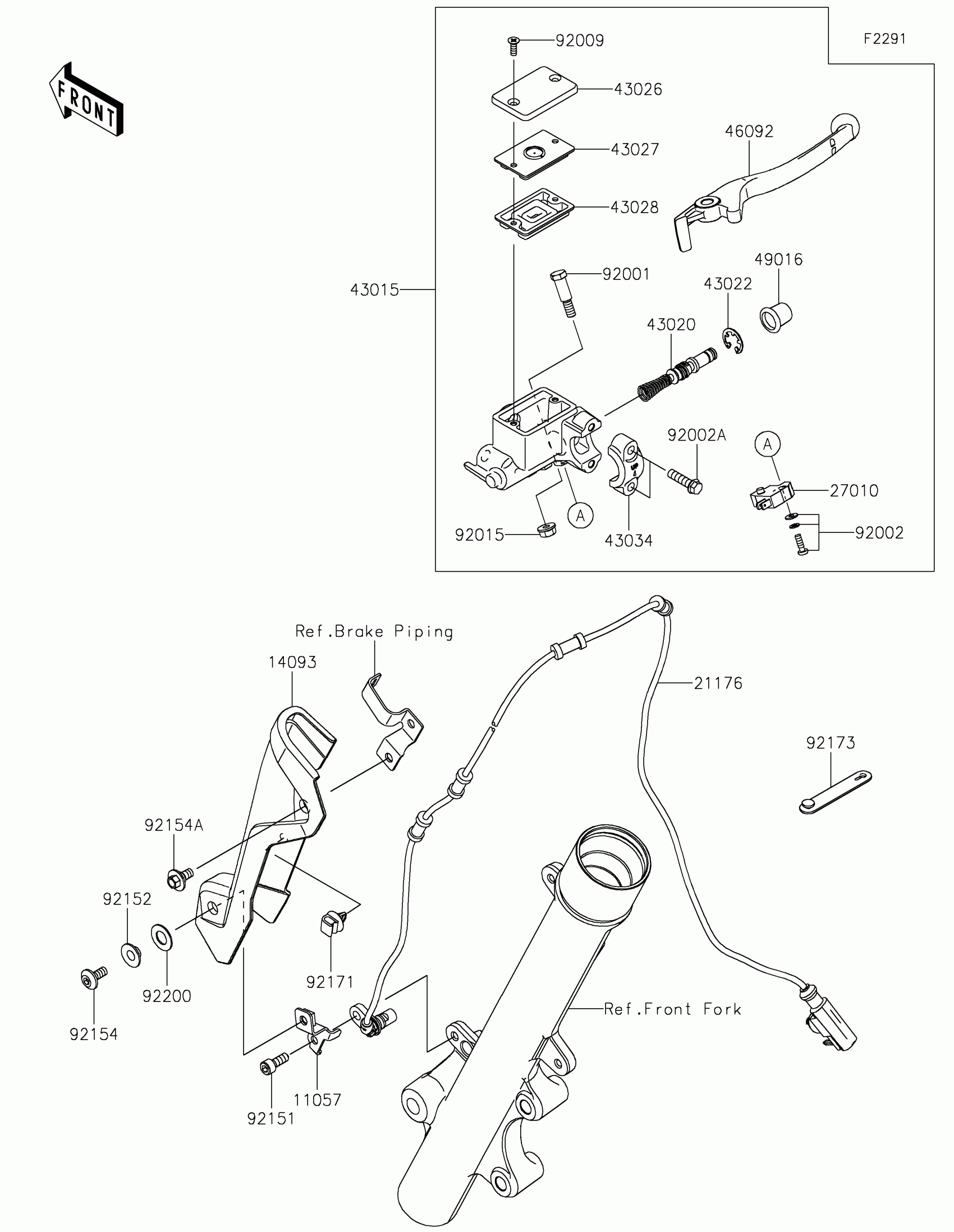

Kawasaki KLX®230 S ABS Front Master Cylinder Diagram

Description

Price

11057

BRACKET,ABS SENSOR

11057-4142

$4.37

14093

COVER,ABS SENSOR

14093-0863

$5.03

21176

SENSOR,SPEED,FR

21176-1244

$258.13

27010

SWITCH,BRAKE

27010-0873

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0826

$218.29

43020

PISTON-COMP-BRAKE

43020-0034

$51.24

43022

STOPPER-BRAKE,PISTON

43022-0004

$4.65

43026

CAP-BRAKE

43026-1082

$20.87

43027

PLATE-DIAPHRAGM

43027-1057

$4.13

43028

DIAPHRAGM

43028-1061

$16.18

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$19.45

46092

LEVER-GRIP,FRONT BRAKE

46092-0587

$33.81

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92001

BOLT,FRONT BRAKE LEVER

92001-1728

$14.23

92002

BOLT,SCREW,4X12

92002-1323

$3.92

92002A

BOLT

92002-1894

$5.52

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92151

BOLT

92151-1166

$2.26

92152

COLLAR

92152-0427

$7.75

92154

BOLT,SOCKET,6X14

92154-3763

$1.42

92154A

BOLT,FLANGED,6X13

92154-4411

$3.74

92171

CLAMP

92171-0640

$3.90

92173

CLAMP

92173-2199

$1.48

92200

WASHER,10.5X20X1.0

92200-0870

$0.82
