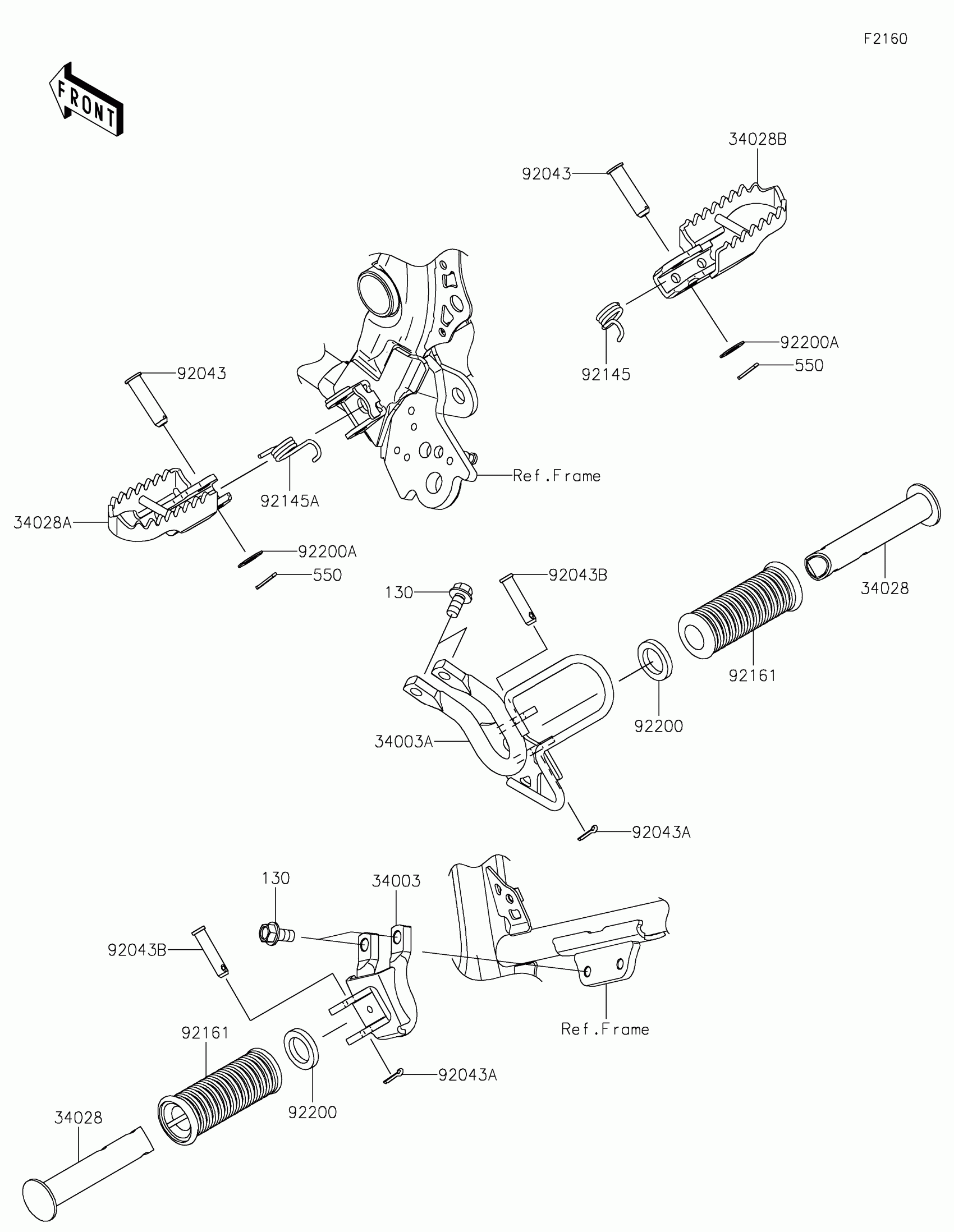

Kawasaki KLX®230 S ABS Footrests Diagram

Description

Price

34003

HOLDER-STEP,LH,P.SILVER

34003-0183-458

$36.23

34003A

HOLDER-STEP,RH,P.SILVER

34003-0206-458

$52.11

34028

STEP,RR

34028-0007

$8.25

34028A

STEP,LH

34028-0369

$43.20

34028B

STEP,RH

34028-0371

$43.20

92043

PIN,10X35

92043-0744

$5.24

92043A

PIN,COTTER,2.5X18

92043-0771

$0.69

92043B

92043-1714

$1.56

92145

SPRING,STEP,RH

92145-2300

$9.49

92145A

SPRING,STEP,LH

92145-2301

$9.49

92161

DAMPER,REAR STEP

92161-0866

$12.85

92200

WASHER,20X30X4.5

92200-0869

$2.44

92200A

WASHER,10.5X20X1.0

92200-0870

$0.83

130

BOLT-FLANGED,8X16

130CA0816

$1.77

550

PIN-COTTER,2.0X18

550AA2018

$1.80
