2025 Kawasaki KLX®230 S ABS Cowling Diagram

← All diagrams

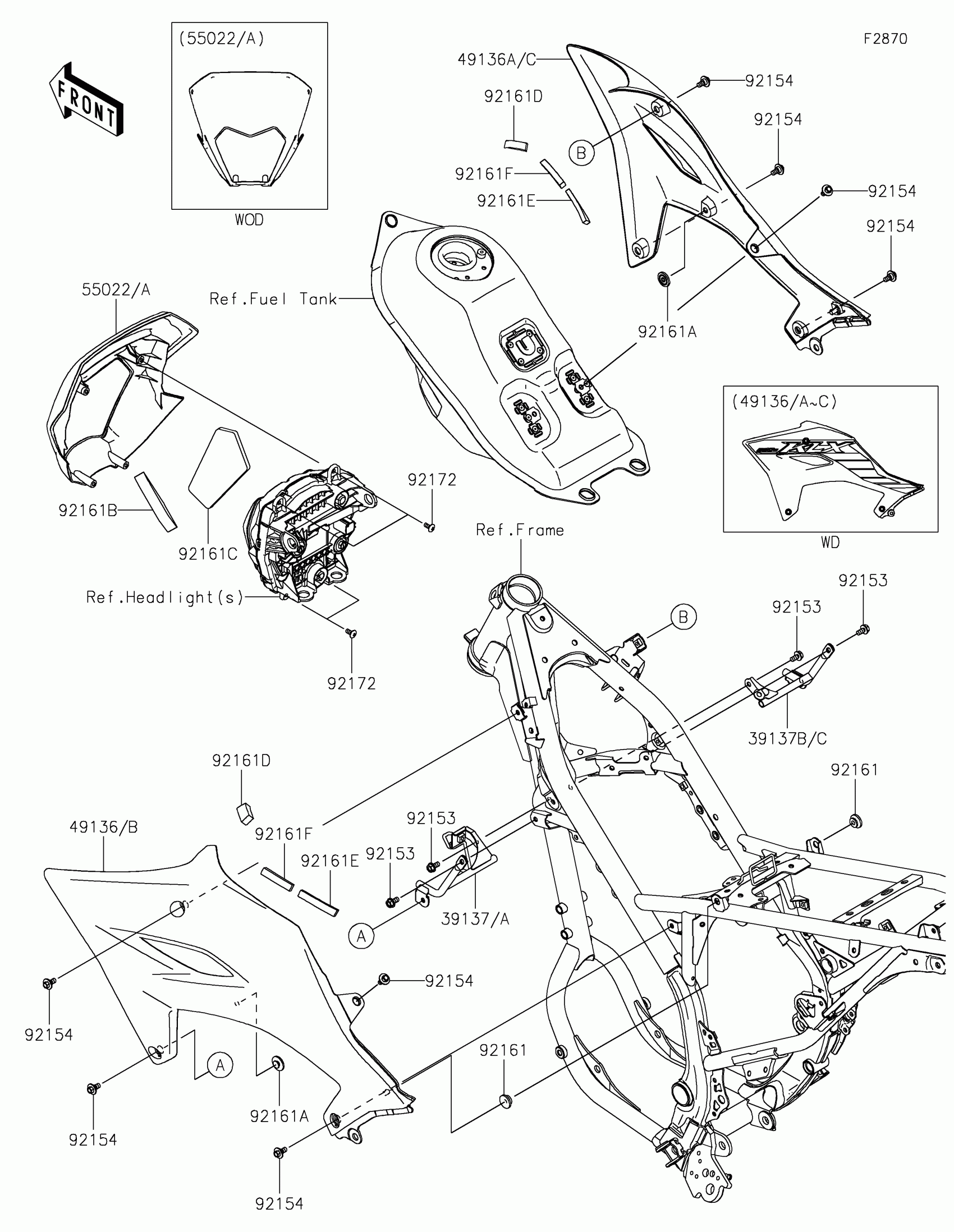

Find the part on the Cowling diagram for your 2025 Kawasaki KLX®230 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX®230 S ABS Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39137

STAY-COMP,LH,F.S.BLACK

39137-0747-18R

1
Out of stock

39137A

STAY-COMP,LH,P.SILVER

39137-0747-458

1
Out of stock

39137B

STAY-COMP,RH,F.S.BLACK

39137-0748-18R

1
Out of stock

39137C

STAY-COMP,RH,P.SILVER

39137-0748-458

1
Out of stock

49136

SHROUD-ENGINE,LH,B.GRAY

49136-5290-67A

1
Out of stock

49136A

SHROUD-ENGINE,RH,B.GRAY

49136-5291-67A

1
Out of stock

49136B

SHROUD-ENGINE,LH,L.GREEN

49136-5292-290

1
Out of stock

49136C

SHROUD-ENGINE,RH,L.GREEN

49136-5293-290

1
Out of stock

55022

COVER-HEAD LAMP,L.GREEN

55022-0331-290

1
Out of stock

55022A

COVER-HEAD LAMP,B.GRAY

55022-0331-67A

1
Out of stock

92153

BOLT,FLANGED,6X12

92153-1283

1
Out of stock

92154

BOLT,FLANGED,6X13

92154-4411

1
Out of stock

92161

DAMPER

92161-1531

1

$2.44

In stock

92161A

DAMPER

92161-2547

1
Out of stock

92161B

DAMPER,HEAD LAMP COVER,LH

92161-2656

1
Out of stock

92161C

DAMPER,HEAD LAMP COVER,RH

92161-2657

1
Out of stock

92161D

DAMPER,15X30X10

92161-2674

1
Out of stock

92161E

DAMPER,10X60X6

92161-2724

1
Out of stock

92161F

DAMPER,10X50X8

92161-2725

1
Out of stock

92172

SCREW,5X12

92172-1095

1
Out of stock
