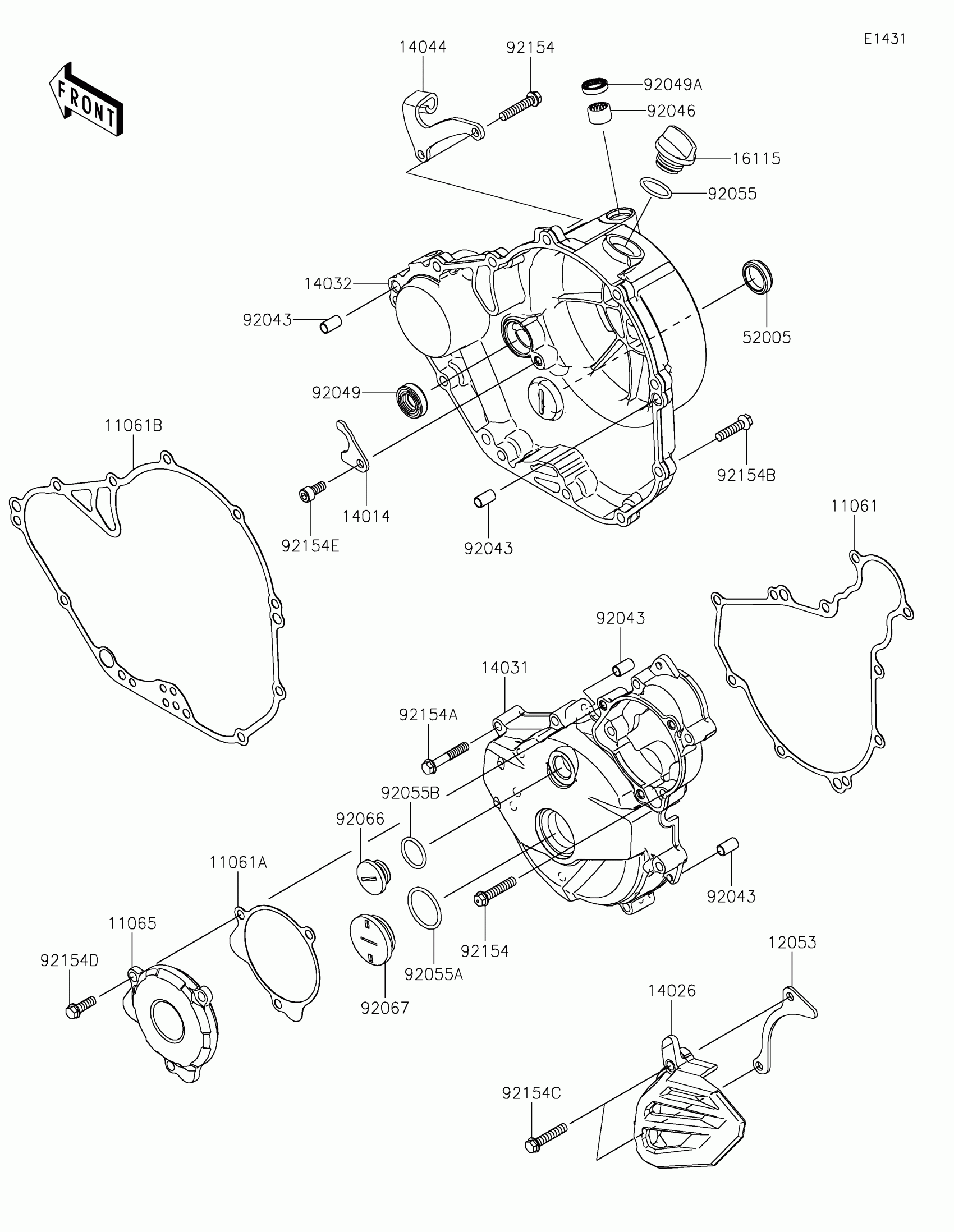

Kawasaki KLX®230 S ABS Engine Cover(s) Diagram

#

Description
Price

11061

GASKET,GENERATOR COVER

11061-1299

$33.80

11061A

GASKET,GENERATOR COVER CAP

11061-1300

$8.96

11061B

GASKET,CLUTCH COVER

11061-1301

$43.34

11065

CAP,GENERATOR COVER

11065-1300

$41.04

12053

GUIDE-CHAIN

12053-0272

$4.06

14014

PLATE-POSITION

14014-0567

$8.30

14026

COVER-CHAIN

14026-0146

$33.61

14031

COVER-GENERATOR

14031-0644

$120.56

14032

COVER-CLUTCH

14032-0685

$149.42

14044

HOLDER-CABLE

14044-0578

$6.77

16115

CAP-OIL FILLER

16115-1053

$12.20

52005

GAUGE,OIL LEVEL

52005-1009

$18.40

92043

PIN,6.2X8X14

92043-1741

$3.71

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$15.63

92049

SEAL-OIL

92049-1191

$24.41

92049A

SEAL-OIL,AG0353-F0

92049-1262

$6.57

92055

RING-O,19.8MM

92055-0844

Unavailable

92055A

RING-O,27.7X2.4

92055-091

$6.22

92055B

RING-O,20X2

92055-1786

$8.25

92066

PLUG,COVER

92066-0011

$15.94

92067

PLUG,30X8

92067-024

$11.29

92154

BOLT,FLANGED,6X30

92154-4061

$1.37

92154A

BOLT,FLANGED,6X35

92154-7465

$1.90

92154B

BOLT,FLANGED,6X25

92154-7466

$3.23

92154C

BOLT,FLANGED,6X30

92154-7469

$1.15

92154D

BOLT,FLANGED,6X18

92154-7470

$1.08

92154E

BOLT,SOCKET,6X14

92154-7476

$3.94
