2025 Kawasaki KLX®230 S ABS Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2025 Kawasaki KLX®230 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

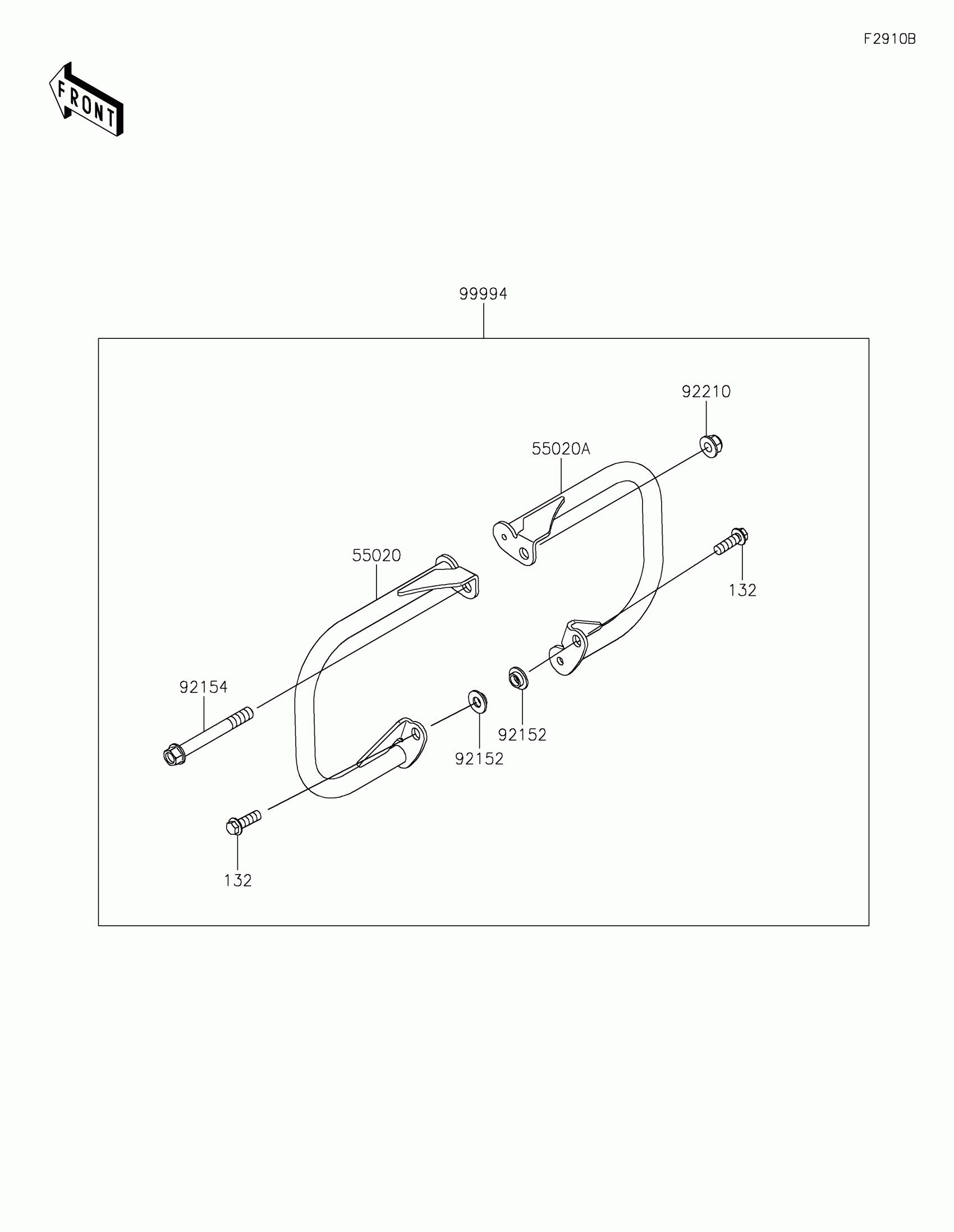

2025 Kawasaki KLX®230 S ABS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

55020

GUARD,LH,P.SILVER

55020-2562-458

1
Out of stock

55020A

GUARD,RH,P.SILVER

55020-2563-458

1
Out of stock

92152

COLLAR

92152-3859

1
Out of stock

92154

BOLT,FLANGED,10X85

92154-4039

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock

99994

ENGINE GUARD,P.SILVER

99994-2050-458

1
Out of stock

132

1

$3.69

In stock
