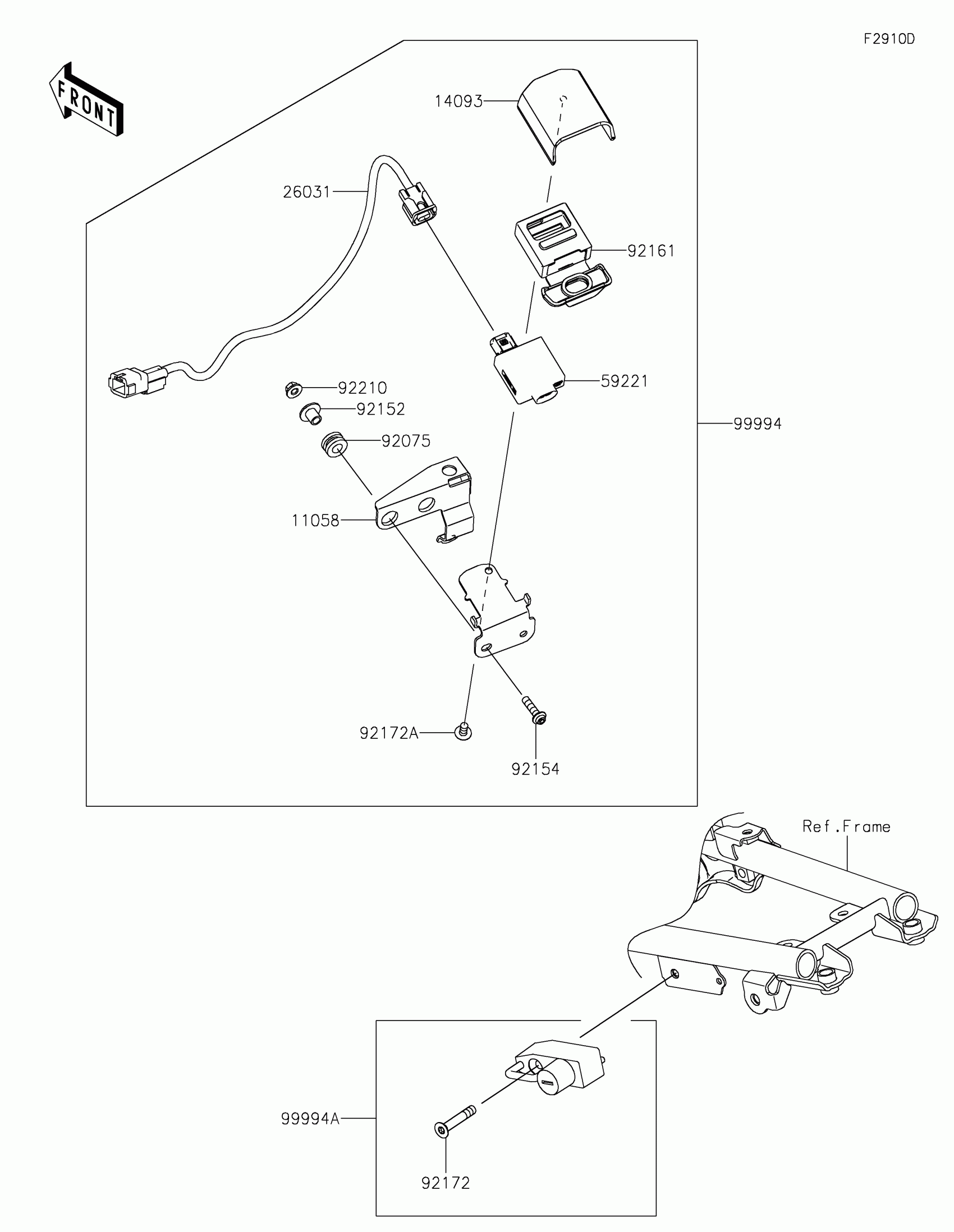

Kawasaki KLX®230 S ABS Accessory(Helmet Lock and USB) Diagram

Description

Price

11058

BRACKET

11058-1388

$17.14

14093

COVER,USB

14093-1458

$4.80

26031

HARNESS,USB CHARGER

26031-3972

$23.95

59221

CONNECTOR-CORD,USB TYPE-C

59221-0022

$87.41

92075

DAMPER

92075-1912

$5.07

92152

COLLAR

92152-0134

$7.54

92154

BOLT,SOCKET,5X20

92154-0829

$1.89

92161

DAMPER

92161-2497

$9.59

92172

SCREW,HEXLOBE,6X35

92172-0835

$2.44

92172A

SCREW,5X10

92172-1194

$1.20

92210

NUT,FLANGED,5MM

92210-0007

$1.90

99994

USB TYPE-C

99994-2051

$64.73

99994A

HELMET LOCK

99994-2176

$116.17
