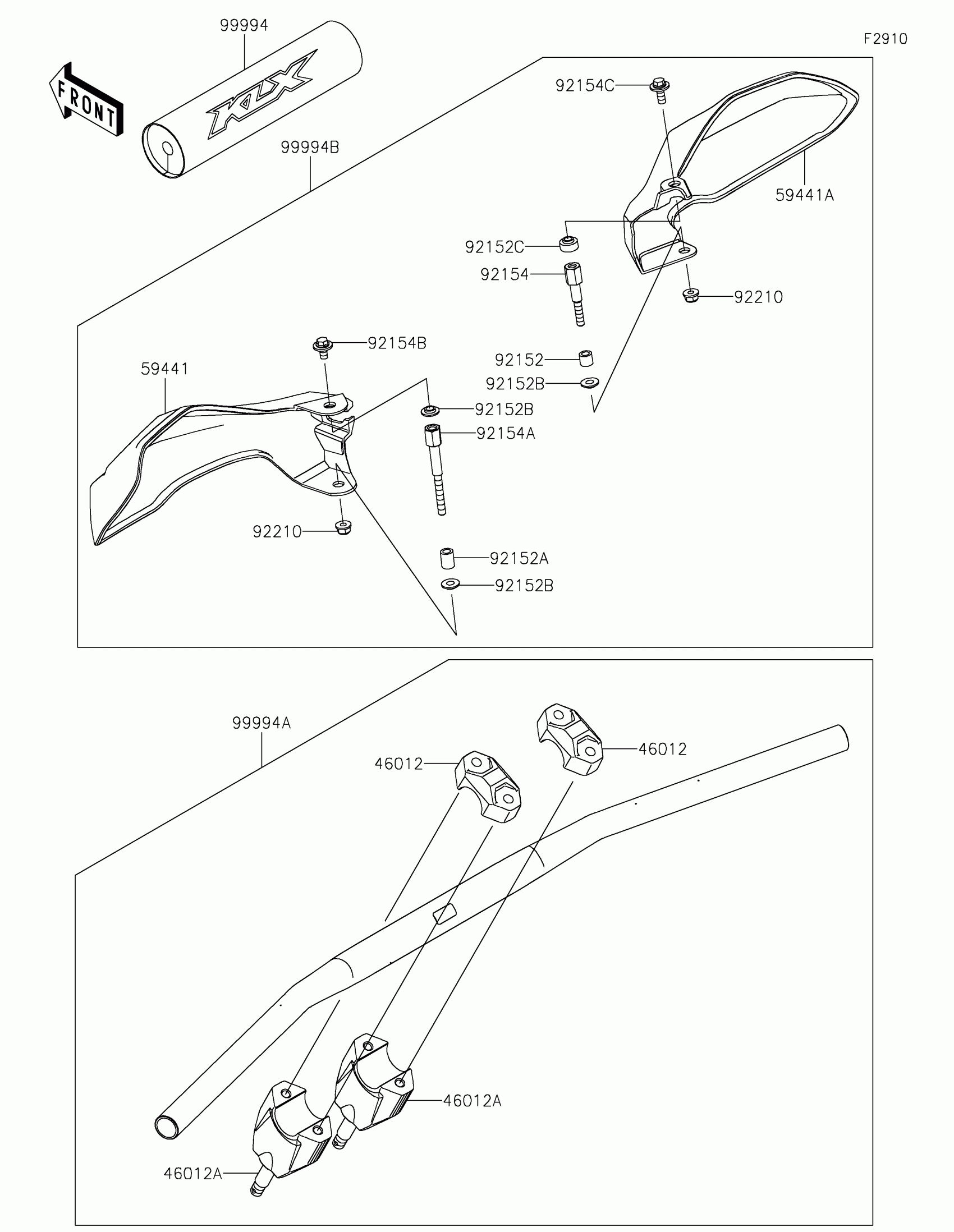

Kawasaki KLX®230 S ABS Accessory(Handle) Diagram

Description

Price

46012

HOLDER-HANDLE,UPP,P.SILVER

46012-0359-458

$23.51

46012A

HOLDER-HANDLE,LWR,P.SILVER

46012-0360-458

$30.12

59441

COVER-HANDLE,LH,EBONY

59441-0045-6C

$29.34

59441A

COVER-HANDLE,RH,EBONY

59441-0046-6C

$29.34

92152

COLLAR,6.5X10.5X9.3

92152-1992

$3.90

92152A

COLLAR,6.5X10.5X14

92152-2302

$4.60

92152B

COLLAR,6.5X15X3.4

92152-2314

$2.95

92152C

COLLAR

92152-2592

$5.79

92154

BOLT

92154-1670

$19.22

92154A

BOLT

92154-2359

$11.02

92154B

BOLT,6X12

92154-7271

$4.48

92154C

BOLT,FLANGED,6X16

92154-7288

$5.12

92210

NUT,LOCK,FLANGED,6MM

92210-1992

$4.50

99994

HANDLE-BAR PAD

99994-1274

$50.23

99994A

FAT TYPE HANDLE BAR,P.SILVER

99994-1508-458

$249.66

99994B

HAND COVER,EBONY

99994-2073-6C

$78.97
