2023 Kawasaki KLX®230 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2023 Kawasaki KLX®230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

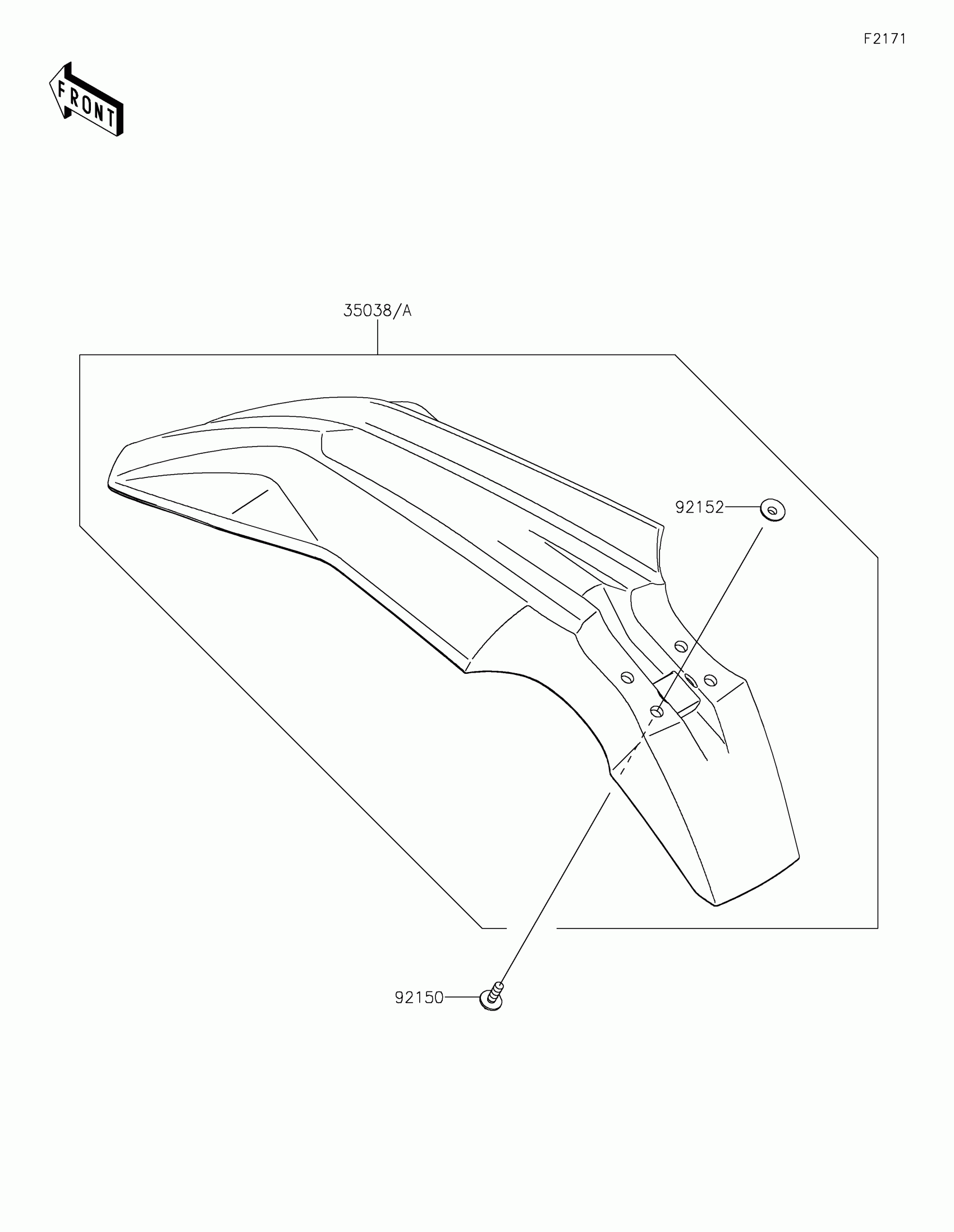

2023 Kawasaki KLX®230 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35038

FENDER-FRONT,L.GREEN

35038-0029-290

1
Out of stock

92150

BOLT,6X20

92150-1339

1
Out of stock

92152

COLLAR,6.6X9X6

92152-1999

1
Out of stock
