2020 Kawasaki KLX®230 Frame Fittings Diagram

← All diagrams

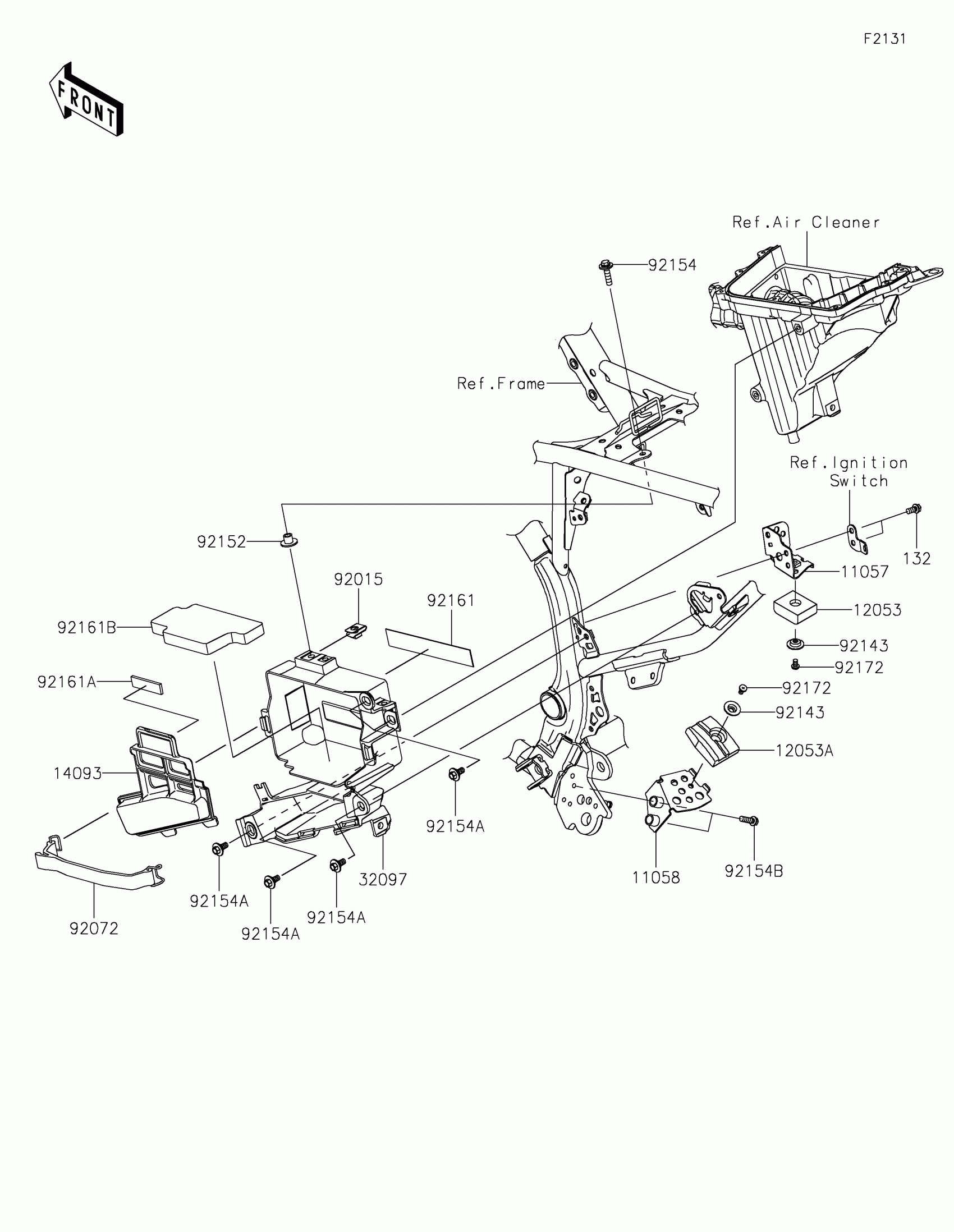

Find the part on the Frame Fittings diagram for your 2020 Kawasaki KLX®230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki KLX®230 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,LWR

11057-2065

1
Out of stock

11057A

BRACKET,UPP

11057-2067

1
Out of stock

12053

GUIDE-CHAIN,UPP

12053-0270

1
Out of stock

12053A

GUIDE-CHAIN,LWR

12053-0271

1
Out of stock

132

1

$1.12

In stock

14093

COVER,BATTERY CASE

14093-0861

1
Out of stock

32097

CASE-BATTERY

32097-0048

1
Out of stock

92015

NUT,6MM

92015-1602

1
Out of stock

92072

BAND,BATTERY

92072-0838

1
Out of stock

92143

COLLAR

92143-1676

1
Out of stock

92152

COLLAR,6.5X10X10.4

92152-1688

1
Out of stock

92154

BOLT,6X25

92154-0467

1
Out of stock

92154A

BOLT,FLANGED,6X9

92154-0546

1
Out of stock

92154B

BOLT,FLANGED,6X20

92154-2757

1
Out of stock

92161

DAMPER,146X22X1

92161-2210

1
Out of stock

92161A

DAMPER,49X13X3

92161-2211

1
Out of stock

92161B

DAMPER,BATTERY

92161-2221

1
Out of stock

92172

SCREW,5X8

92172-0119

1
Out of stock
