Description

Price

13193

CLUTCH-ASSY-ONEWAY

13193-0014

$119.24

13216

GEAR-COMP,ONEWAY CLUTCH

13216-0900

$147.32

14092

COVER

14092-0109

$9.50

16073

INSULATOR

16073-0053

$11.93

21039

BRUSH,CARBON

21039-0004

$117.72

21040

SPRING-BRUSH

21040-0003

$9.79

21163

STARTER-ELECTRIC

21163-0783

$318.20

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,STARTER

26011-2500

$29.80

27010

SWITCH

27010-0773

$135.86

39076

LIMITER,STARTER IDLE GEAR

39076-0562

$176.39

59051

GEAR-SPUR,IDLER

59051-0824

$57.70

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,STARTER MOTOR

92015-1476

$4.31

92048

RACE,ONEWAY CLUTCH

92048-0030

$54.21

92055

RING-O

92055-0136

$7.75

92055A

RING-O

92055-1276

$9.91

92055B

RING-O,4.5X2.0

92055-1370

$4.69

92071

GROMMET

92071-0782

$11.29

92153

BOLT

92153-1850

$11.93

92153A

BOLT

92153-1866

$4.65

92154

BOLT,FLANGED,6X30

92154-1773

$1.19

92154A

BOLT,SOCKET,6X12

92154-7472

$2.40

92172

SCREW

92172-0334

$4.65

92200

WASHER

92200-0386

$4.65

92200A

WASHER,10.2X20X0.5

92200-1976

$3.94

120

BOLT-SOCKET,5X10

120CB0510

$1.64

461

WASHER-SPRING,5MM

461DA0500

$0.71

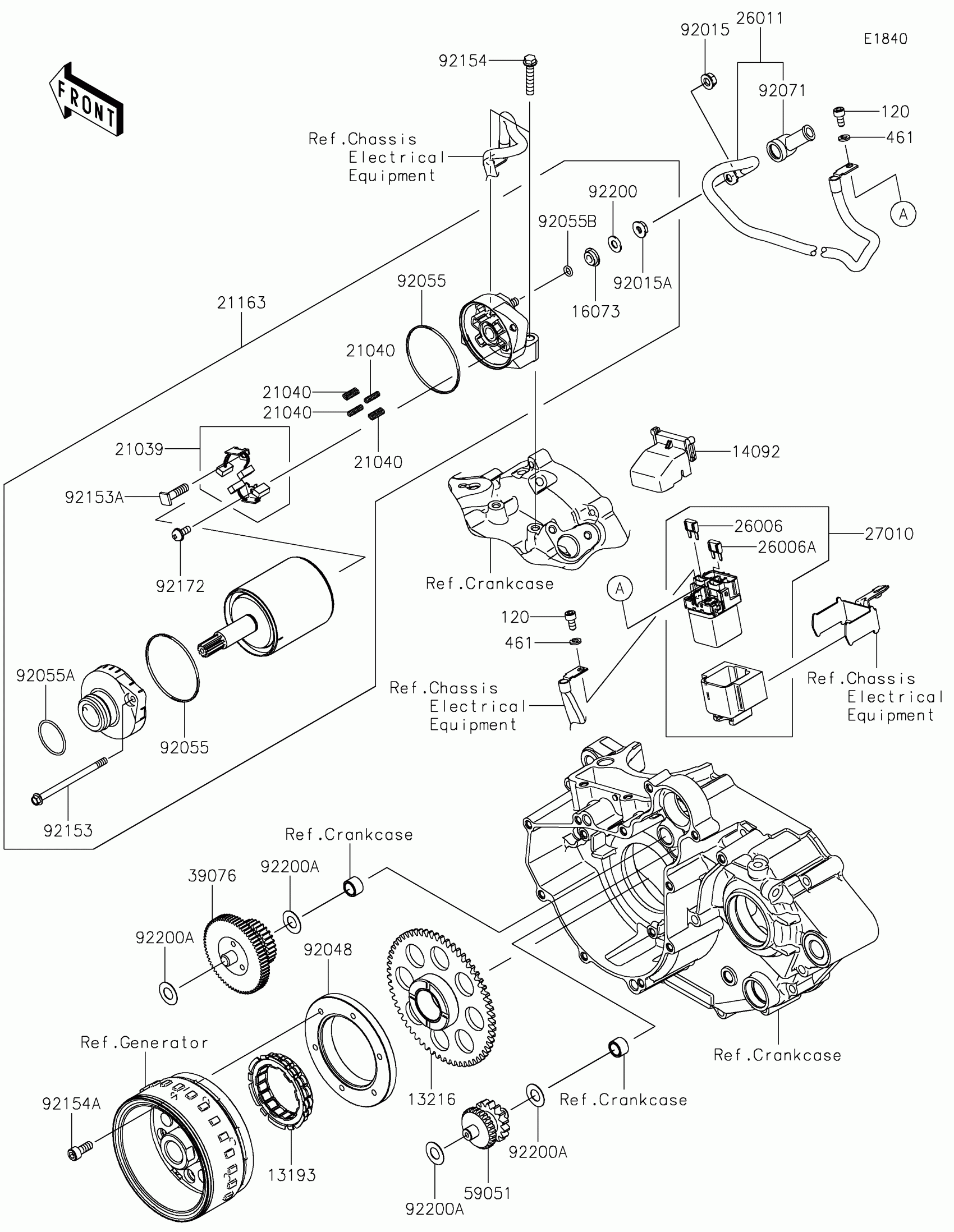

Kawasaki KLX®230 DF ABS Starter Motor Diagram

CLUTCH-ASSY-ONEWAY

GEAR-COMP,ONEWAY CLUTCH

COVER

INSULATOR

BRUSH,CARBON

SPRING-BRUSH

STARTER-ELECTRIC

FUSE,MINI BLADE,15A,BLUE

FUSE,MINI BLADE,30A,GREEN

WIRE-LEAD,STARTER

SWITCH

LIMITER,STARTER IDLE GEAR

GEAR-SPUR,IDLER

NUT,FLANGED,6MM

NUT,STARTER MOTOR

RACE,ONEWAY CLUTCH

RING-O

RING-O

RING-O,4.5X2.0

GROMMET

BOLT

BOLT

BOLT,FLANGED,6X30

BOLT,SOCKET,6X12

SCREW

WASHER

WASHER,10.2X20X0.5

BOLT-SOCKET,5X10

WASHER-SPRING,5MM
