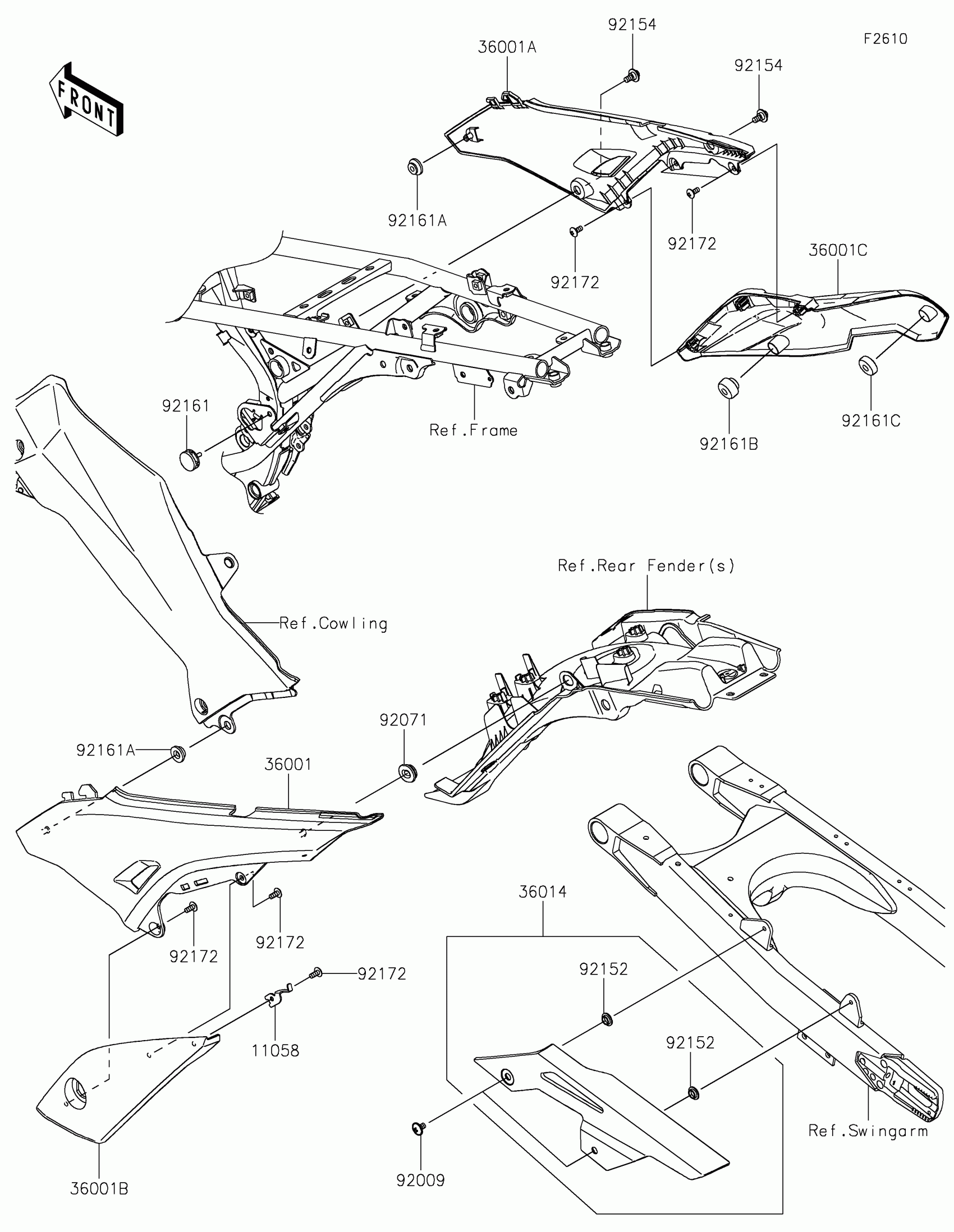

Kawasaki KLX®230 DF ABS Side Covers/Chain Cover Diagram

Description

Price

11058

BRACKET

11058-3822

$3.18

36001

COVER-SIDE,LH,UPP,M.C.GRAY

36001-0761-67K

$42.18

36001A

COVER-SIDE,RH,UPP,M.C.GRAY

36001-0763-67K

$43.53

36001B

COVER-SIDE,LH,LWR

36001-0790

$25.94

36001C

COVER-SIDE,RH,LWR

36001-0791

$39.36

36014

CASE-CHAIN

36014-0560

$17.48

92009

SCREW,6X10

92009-1729

$0.22

92071

GROMMET

92071-0795

$1.36

92152

COLLAR,8.8X16X4

92152-1731

$5.65

92154

BOLT,FLANGED,6X9

92154-7185

$1.83

92161

DAMPER

92161-0581

$1.94

92161A

DAMPER

92161-1531

$3.02

92161B

DAMPER

92161-1783

$5.44

92161C

DAMPER

92161-2090

$5.11

92172

SCREW,5X12

92172-1095

$0.63
