2026 Kawasaki KLX®230 DF ABS OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2026 Kawasaki KLX®230 DF ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

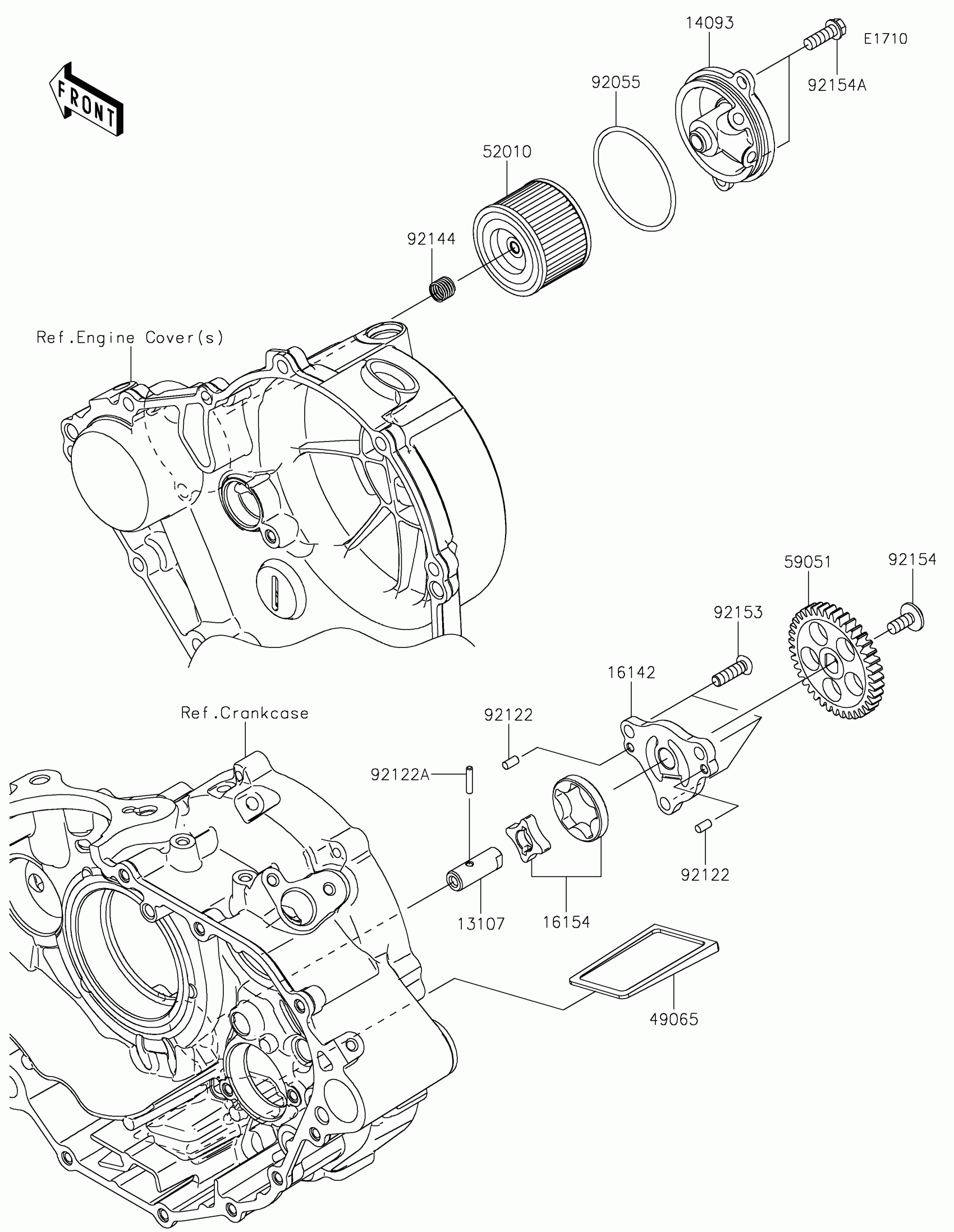

2026 Kawasaki KLX®230 DF ABS OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,OIL PUMP

13107-0891

1
Out of stock

14093

COVER,OIL FILTER

14093-1258

1
Out of stock

16142

COVER-PUMP,OIL

16142-0760

1
Out of stock

16154

ROTOR-PUMP

16154-0747

1
Out of stock

49065

FILTER-OIL

49065-1058

1
Out of stock

52010

ELEMENT-OIL FILTER

52010-1053

1
Out of stock

59051

GEAR-SPUR,39T

59051-0819

1
Out of stock

92055

RING-O,52.6X2.4

92055-1785

1
Out of stock

92122

ROLLER,4X8

92122-0557

1
Out of stock

92122A

ROLLER,3X15.8

92122-1126

1
Out of stock

92144

SPRING

92144-1761

1
Out of stock

92153

BOLT,TORX,6X20

92153-1653

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-2731

1
Out of stock

92154A

BOLT,FLANGED,6X18

92154-3800

1
Out of stock
