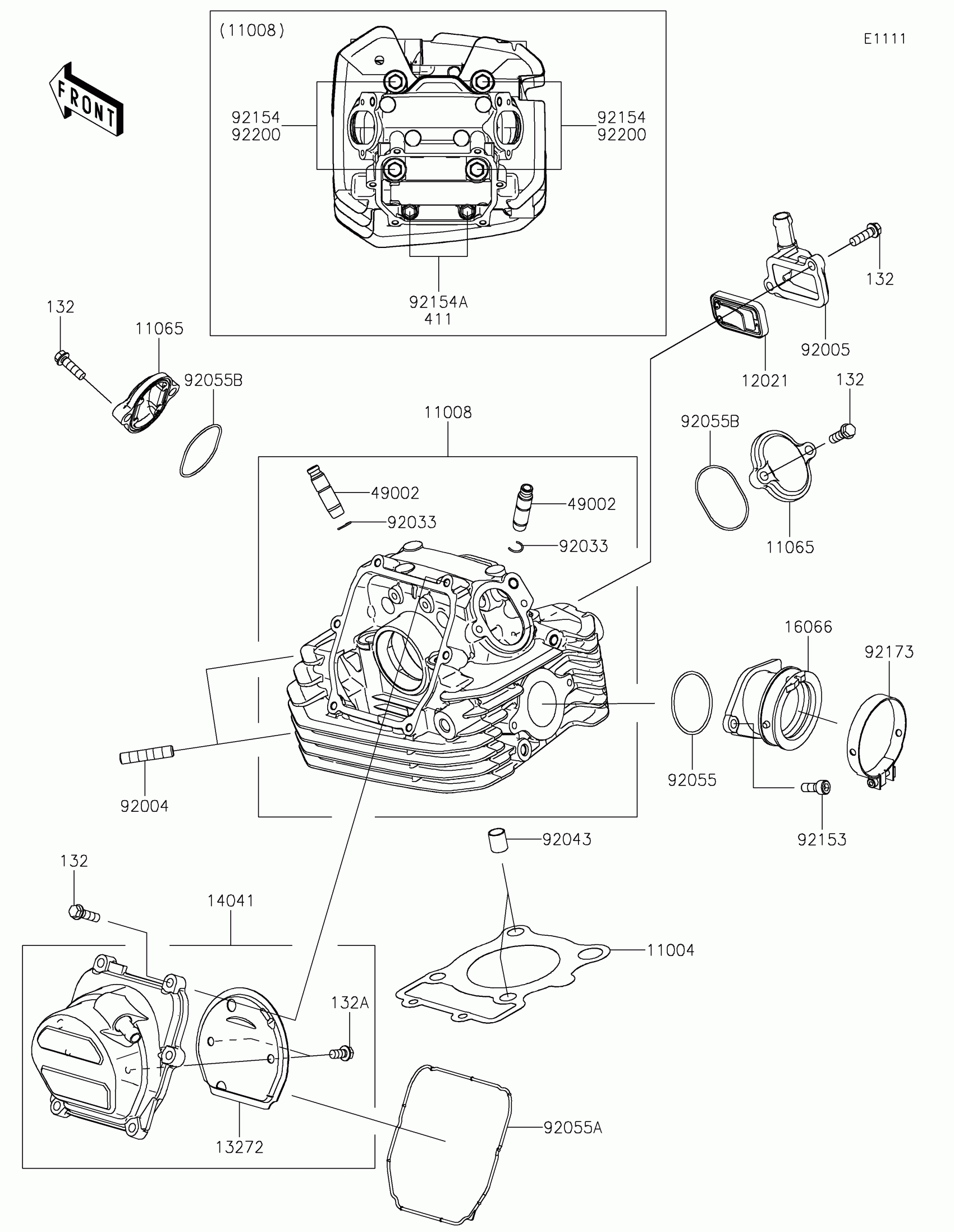

Kawasaki KLX®230 DF ABS Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0784

$20.39

11008

HEAD-COMP-CYLINDER

11008-1547

$513.95

11065

CAP,VALVE,ADJUSTING

11065-1507

$30.07

12021

VALVE-ASSY-REED

12021-0050

$49.12

13272

PLATE

13272-2616

$7.64

14041

COVER-COMP,CAM CHAIN

14041-0633

$165.46

16066

HOLDER-THROTTLE BODY

16066-0021

$52.81

49002

GUIDE-VALVE

49002-0047

$19.47

92004

STUD,8X25

92004-0731

$3.15

92005

FITTING

92005-1435

$29.82

92033

RING-SNAP

92033-0789

$3.53

92043

PIN,10.1X12X14

92043-4009

$4.67

92055

RING-O,42X1.9

92055-0186

$4.96

92055A

RING-O

92055-0897

$18.29

92055B

RING-O,ADJUST CAP

92055-1655

$6.62

92153

BOLT,SOCKET,6X16

92153-1344

$2.09

92154

BOLT,FLANGED,10X190

92154-7052

$16.03

92154A

BOLT,FLANGED,6X130

92154-7468

$3.80

92173

CLAMP,58MM

92173-0927

$13.63

92200

WASHER,10.5X19X2.3

92200-0257

$1.53

132

BOLT-FLANGED-SMALL,6X20

132BB0620

$3.05

132A

BOLT-FLANGED-SMALL,6X12

132BD0612

$1.49

411

WASHER-PLAIN,6MM

411AA0600

$2.06
