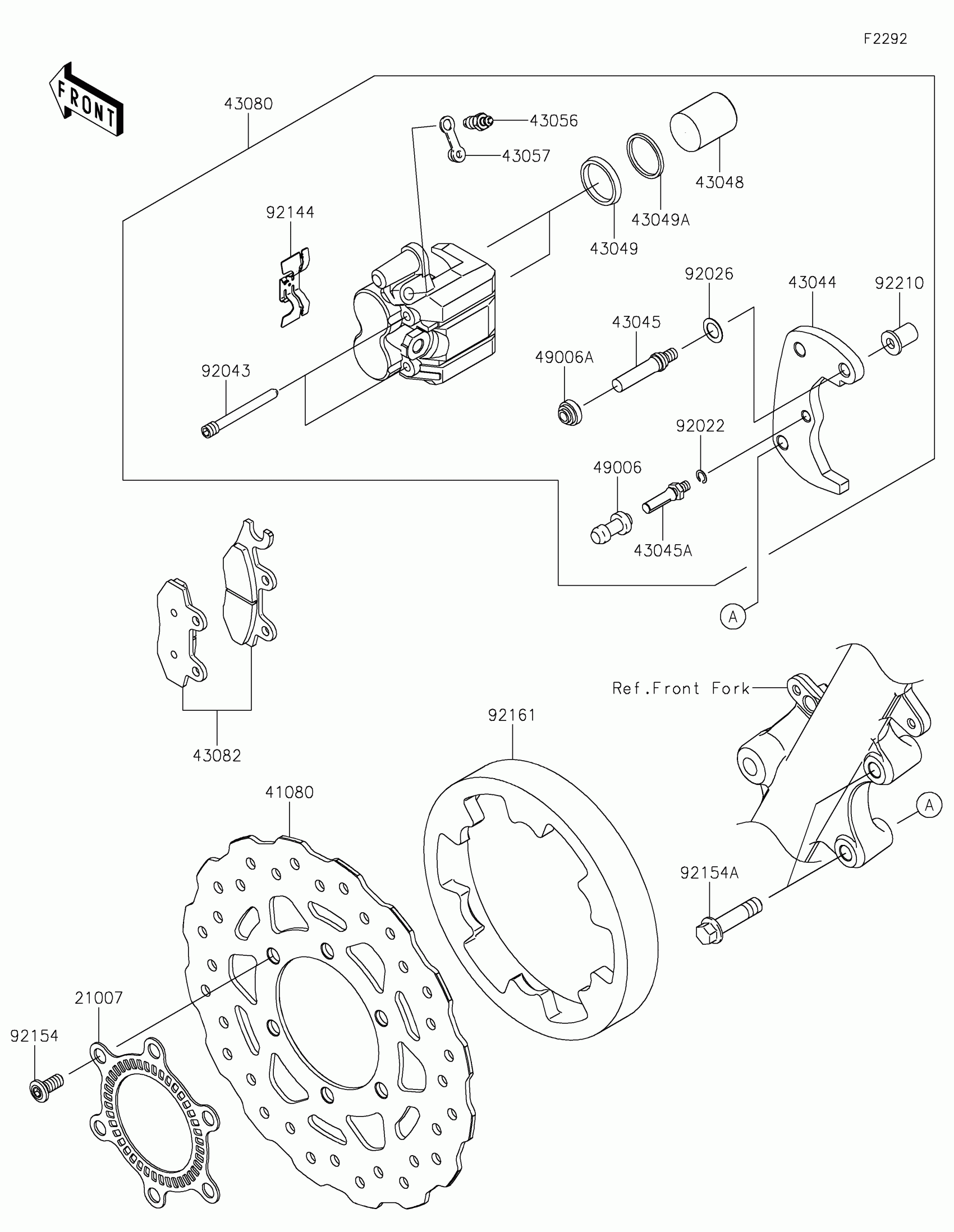

Kawasaki KLX®230 DF ABS Front Brake Diagram

Description

Price

21007

ROTOR,SENSOR

21007-0748

$89.81

41080

DISC,FR

41080-0709

$202.90

43044

HOLDER-COMP-CALIPER

43044-0104

$157.14

43045

SHAFT-CALIPER

43045-0011

$20.77

43045A

SHAFT-CALIPER

43045-1010

$20.77

43048

PISTON-CALIPER

43048-0010

$46.35

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,FR

43080-0262

$333.93

43082

PAD-ASSY-BRAKE

43082-0060

$68.09

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92022

WASHER,WAVE

92022-1373

$3.92

92026

SPACER

92026-0876

$8.74

92043

PIN,HANGER

92043-1416

$18.57

92144

SPRING,PAD

92144-1847

$30.33

92154

BOLT,SOCKET,8X18

92154-3951

$4.37

92154A

BOLT,FLANGED,10X41

92154-7037

$7.38

92161

DAMPER,FR BRAKE

92161-2298

$32.41

92210

NUT

92210-0615

$6.26
